Electric Fuel Pump

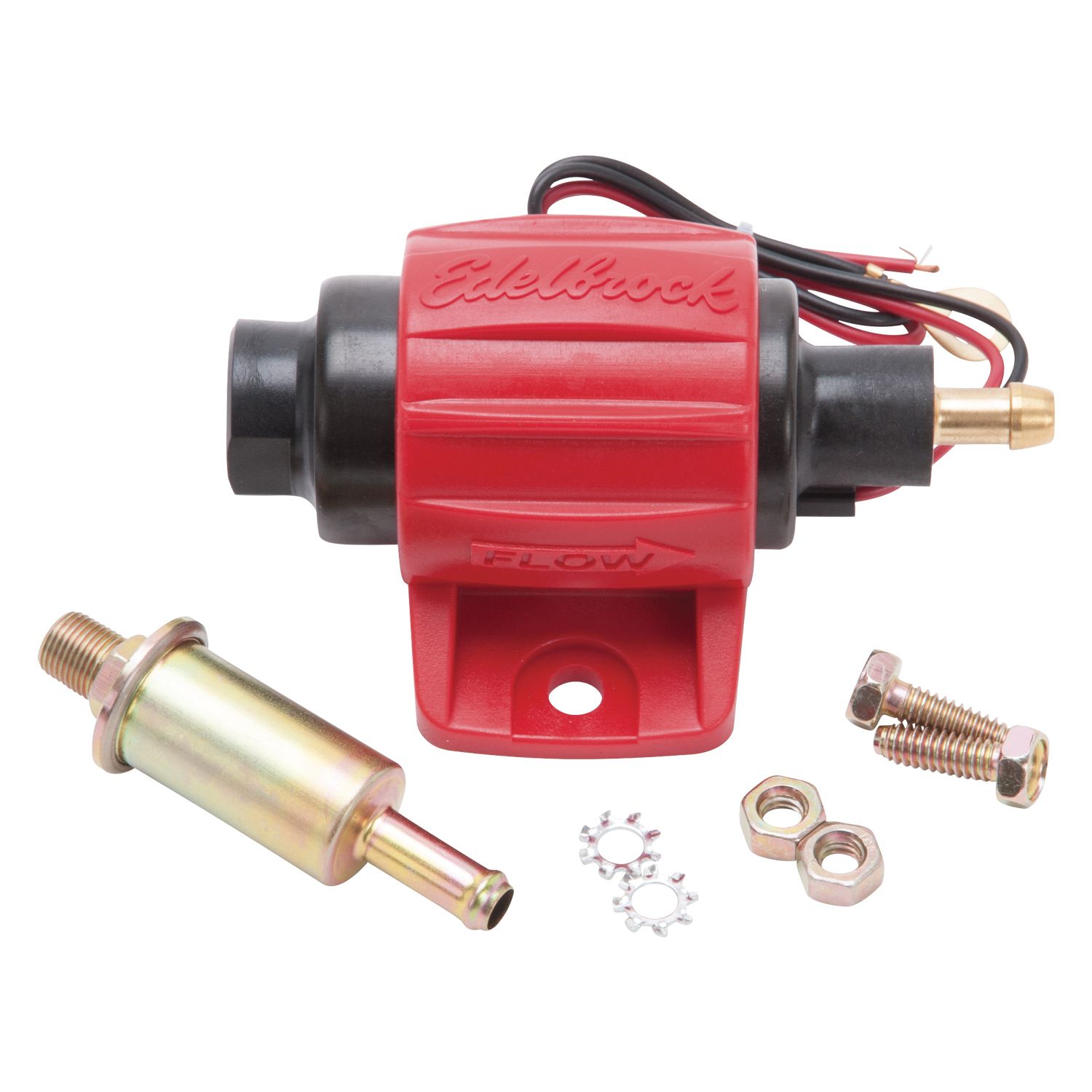

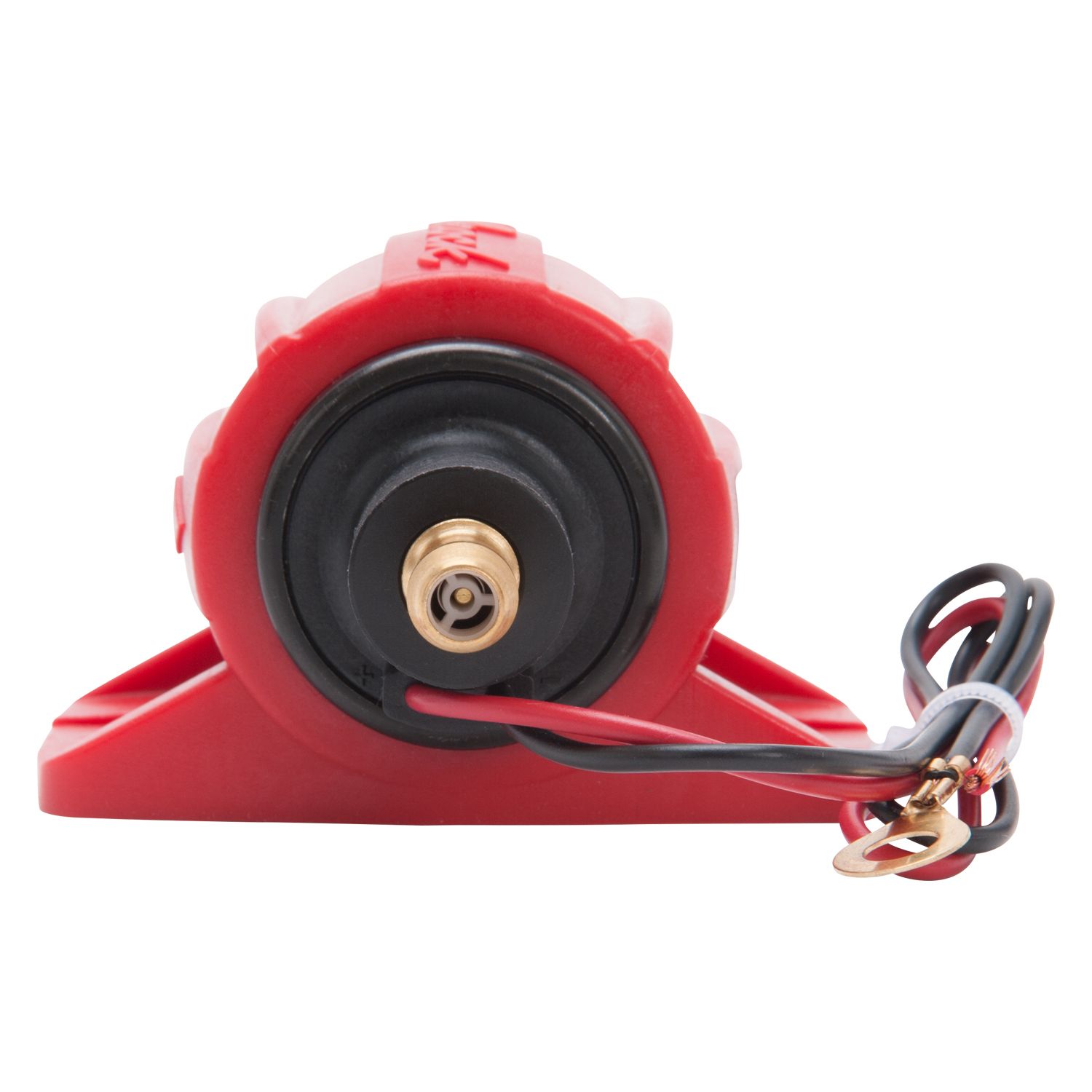

Edelbrock part #17301 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only. It features an in-line style rotor and vane pump design. 4-7 PSI, 38 GPH for most carbureted applications and is compatible with gasoline and E85. Pump has integrated 5/16 barb fittings on fuel outlet and 5/16 fitting on included fuel filter inlet.

Additional Attributes:

GTIN: 00085347173013
Compatible Fuel Type: Gasoline and E85
Fuel Pump Inlet Type: Hose Barb
Fuel Sending Unit Included: No
Fuel Type: Gas
Gasket Or Seal Included: No
In Tank or External: External
Inlet Type: Hose Barb
Internal Or External: External
Maximum Flow Rating: 144 LPH/38
Maximum Pressure: 7
Minimum Pressure: 4
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Negative Ground: Yes
Outlet Outside Diameter: 0.312
Outlet Quantity: 1
Outlet Type: Hose Barb
Pump Design: In-line Electric Fuel Pump
Pump Type: Electric
Regulator Included: No
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Seal And Lock Ring Included: No
Strainer Included: No
Terminal Type: Lead Wire
Universal Or Specific Fit: Universal
Wiring Harness Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 7.5 x 7.25 x 3 inches
Weight: 1.2 PG
