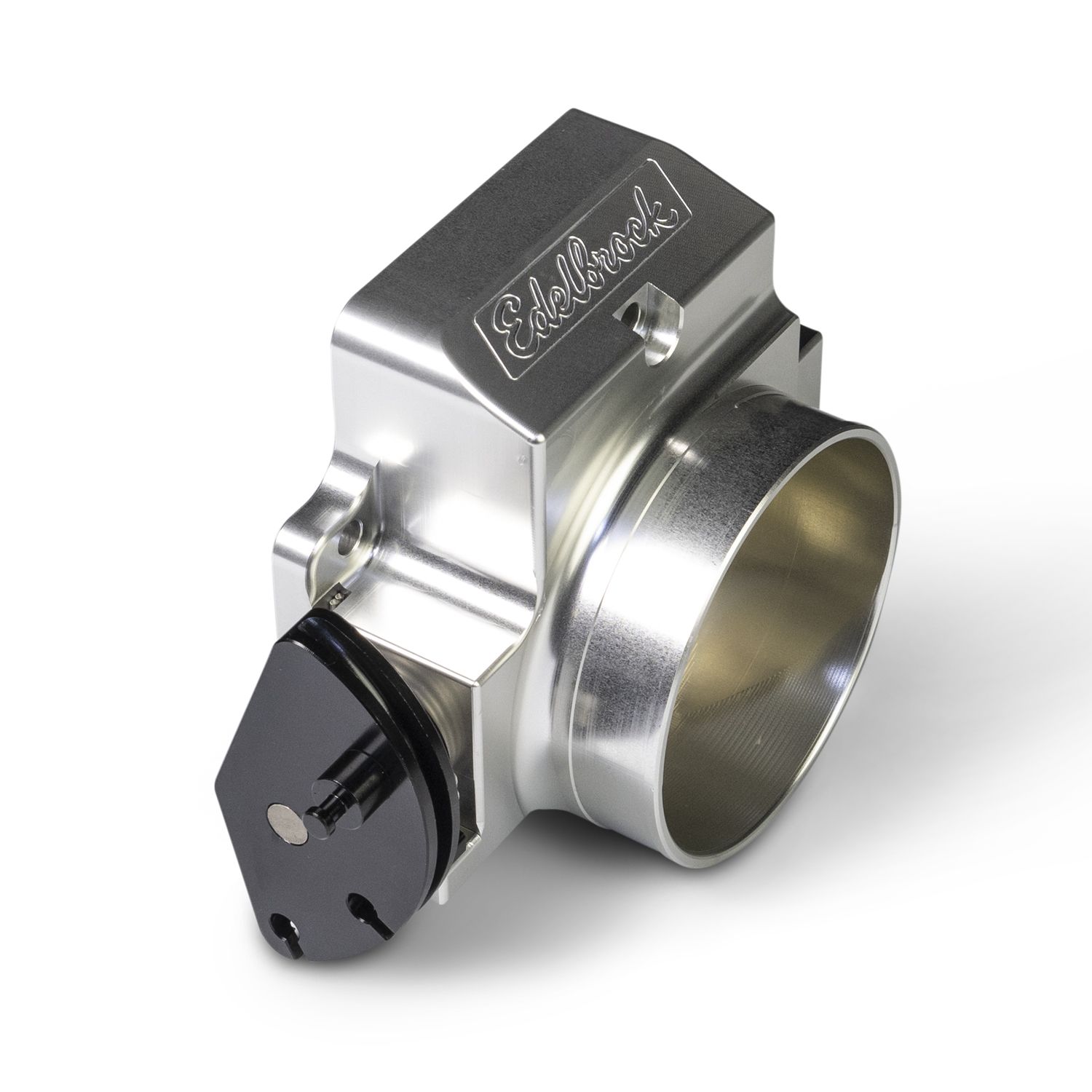

Edelbrock Victor LS Series 90mm Throttle Body, Satin

Constructed from billet aluminum, the new Edelbrock 90mm Victor Series Pro-Flo XT(TM) Throttle Body, complete with TPS and IAC, maximizes performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies. With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control. Available in either black (#39703) or satin (#3970) finishes to look great in any engine bay!

Additional Attributes:

GTIN: 00085347039708
Gasket Or Seal Included: Yes
Fuel Injectors Included: No
Idle Air Control Motor Included: Yes
Throttle Body Finish: Clear Anodized
Throttle Body Material: Billet Aluminum
Throttle Body Type: Multi Port Injection
Throttle Position Sensor Included: Yes
Airflow Rate: 1000cfm
Bore Diameter: 90mm
Hardware Included: Yes
Throttle Body Actuation: Cable
Venturi Quantity: Single

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 7.5 x 5.5 x 3 inches
Weight: 2.8 PG
