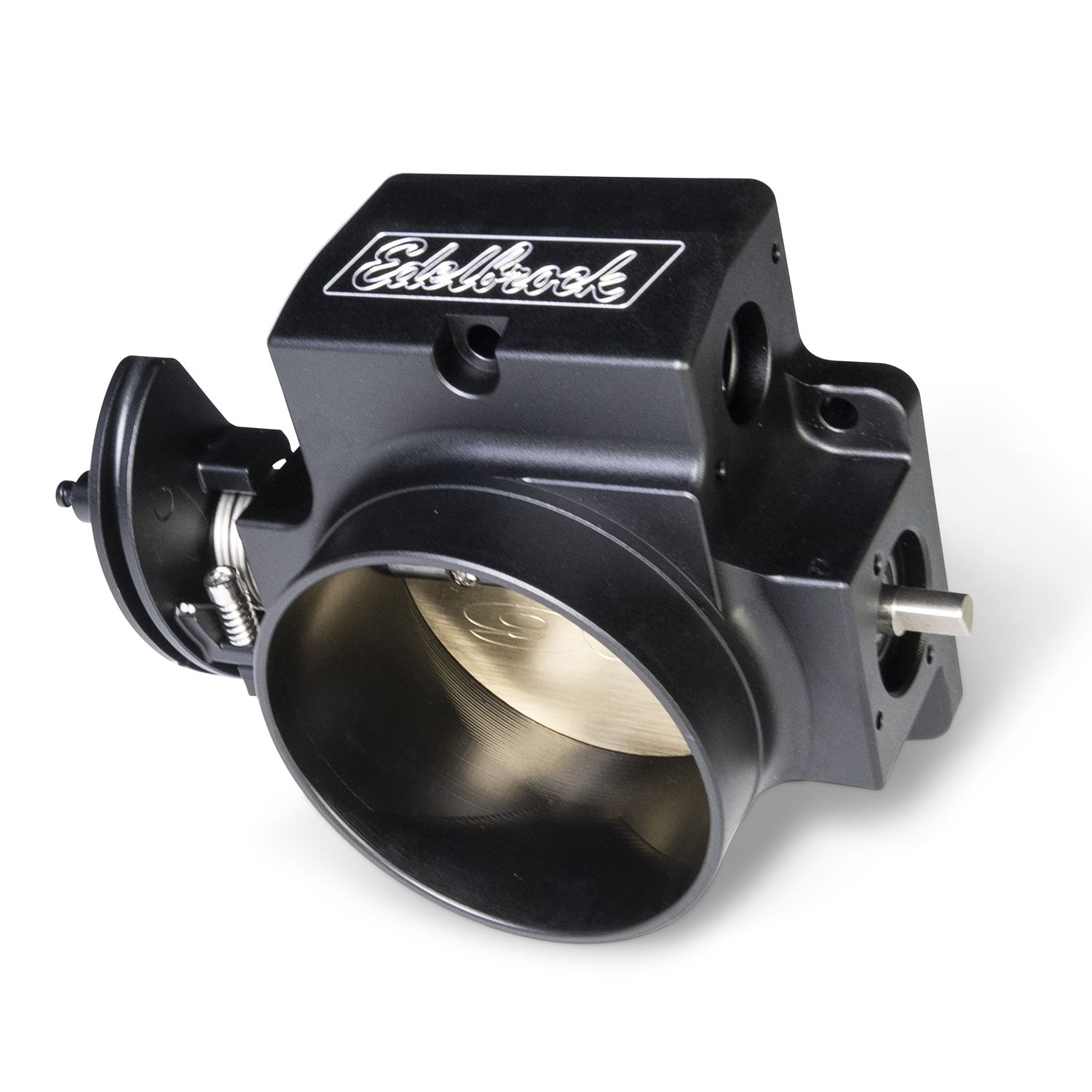

Edelbrock Victor LS Series 90mm Throttle Body, Black
Edelbrock Victor LS Series 90mm Throttle Body, Black

Edelbrock Victor LS Series 90mm Throttle Body, Black

Edelbrock Victor LS Series 90mm Throttle Body #39703 for cable-driven Gen III/IV LS is constructed of billet aluminum with black finish. Enlarged single-bore body with progressive linkage, thicker blade, dual springs, includes TPS and IAC.

  • Cable driven. Enlarged bore and progressive throttle linkage allowing for increased airflow and enhanced low-speed drivability. Provisions for either LS1 or LS2 mounting bolt patterns.
  • Features a double return spring providing solid throttle control and safe functionality. High quality CNC Billet Aluminum construction
  • Includes GM Factory Throttle Position Sensor, Inlet Air Control Valve and Throttle Body Mounting Hardware and Gasket
SKU BDVJ-39703 Category

$ 475.80

Constructed from billet aluminum, the new Edelbrock 90mm Victor Series Pro-Flo XT(TM) Throttle Body, complete with TPS and IAC, maximizes performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies. With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control. Available in either black (#39703) or satin (#3970) finishes to look great in any engine bay!

Additional Attributes:

GTIN: 00085347397037
Gasket Or Seal Included: Yes
Fuel Injectors Included: No
Idle Air Control Motor Included: Yes
Throttle Body Finish: Satin Black Anodized
Throttle Body Material: Billet Aluminum
Throttle Body Type: Multi Port Injection
Throttle Position Sensor Included: Yes
Airflow Rate: 1000cfm
Bore Diameter: 90mm
Hardware Included: Yes
Throttle Body Actuation: Cable
Venturi Quantity: Single

Extended Information:

Emissions : 3
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 7.5 x 5.5 x 3 inches
Weight: 2.8 PG

Information complémentaire

Poids1.27 kg
Dimensions7.5 × 5.5 × 3 cm
