Edelbrock Twin-Force Stg 1-2 Upgrade Kit 17-22 Ford F150/Raptor 3.5L HO EcoBoost

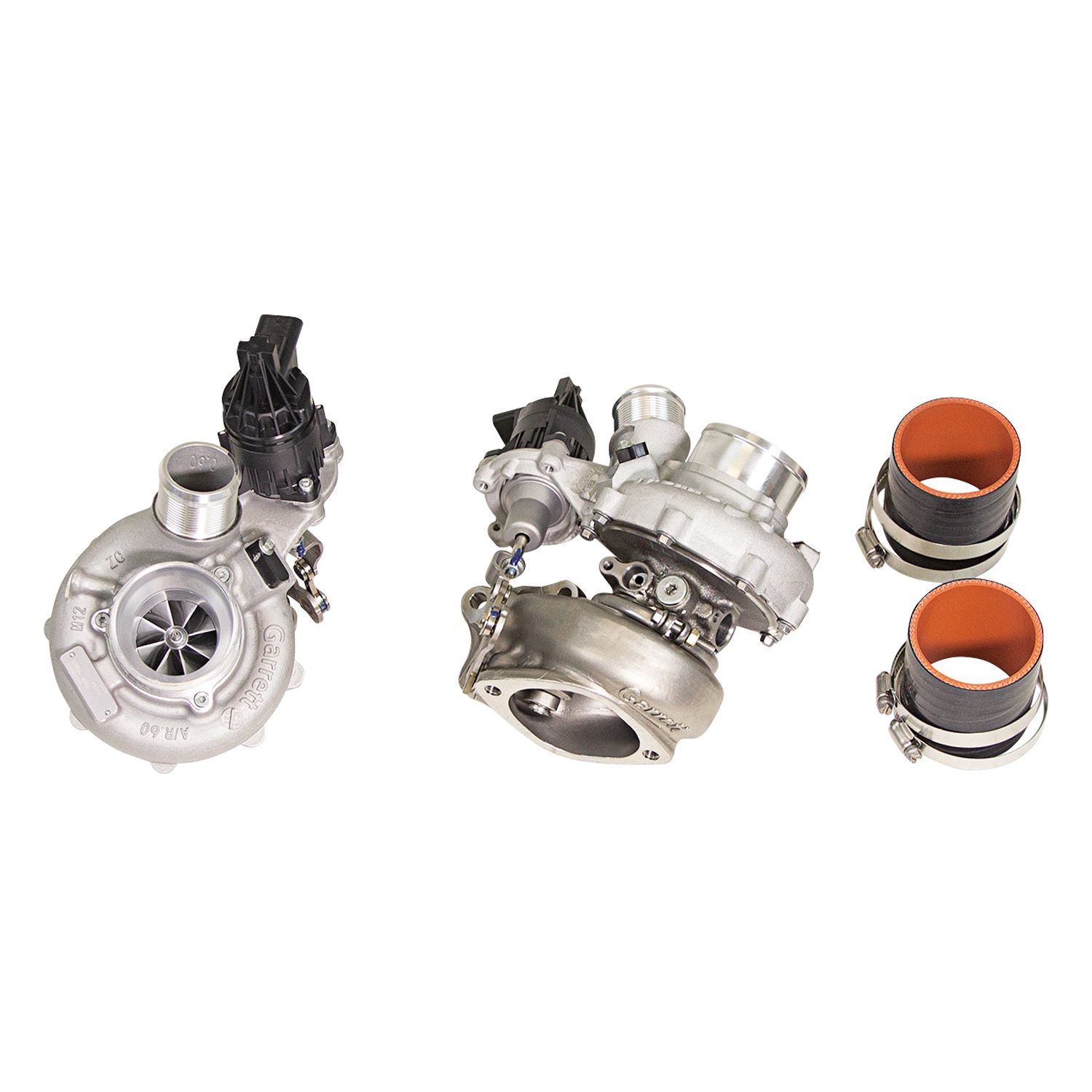

Edelbrock Twin-Force Stage 1-2 Turbo System Upgrade Kit For 17-22 Ford F150/Raptor Truck 3.5L HO V6 EcoBoost #158337 will upgrade your Edelbrock Twin-Force Stage 1 Power Package to a Stage 2 Turbo System by adding driver and passenger turbochargers. Edelbrock's engineers collaborated with Garrett on the design of all new turbos for the 3.5L EcoBoost trucks. These new direct bolt-in turbos incorporate the latest in turbocharger technology, offering a 54% increase in airflow over the factory turbos. A 60mm billet compressor wheel produces great improvements in compressor efficiency and flow. The 50mm Inconel turbine wheel and larger .45 A/R stainless steel turbine housing result in a 52% increase in turbine flow. The 2.75 compressor inlets are 38% larger than the factory turbos complementing Edelbrock's high flow turbo inlet piping. When combined with Edelbrock's larger Intercooler, air inlet tubes and high flow air filter, these turbochargers offer huge increases in power potential for this application.

Additional Attributes:

GTIN: 00085347897261
Air Filter Included: No
Calibration Included: Yes
Driver & Passenger Turbos included: Yes
E.O.: D-215-127
Electronic Fuel Pump Booster Included: No
Exhaust Turbine Wheel Diameter: 50
Exhaust Turbine Wheel Material: Inconel
Fitment Type: Specific
Intercooler Included: No
Maximum Horsepower: 450RW (With 93 Octane)
Quantity: 1 Kit
RGL: WARNING: This product can expose you to Chromium and Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type: Stage 1-2 Upgrade Kit
Turbo Compressor Wheel Diameter: 60
Turbo Compressor Wheel Material: CNC Machined Billet Aluminum
Turbo Inlet Piping Included: No
Turner Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 22 x 12 x 13 inches
Weight: 40 PG

PDF:

158337_instructions
