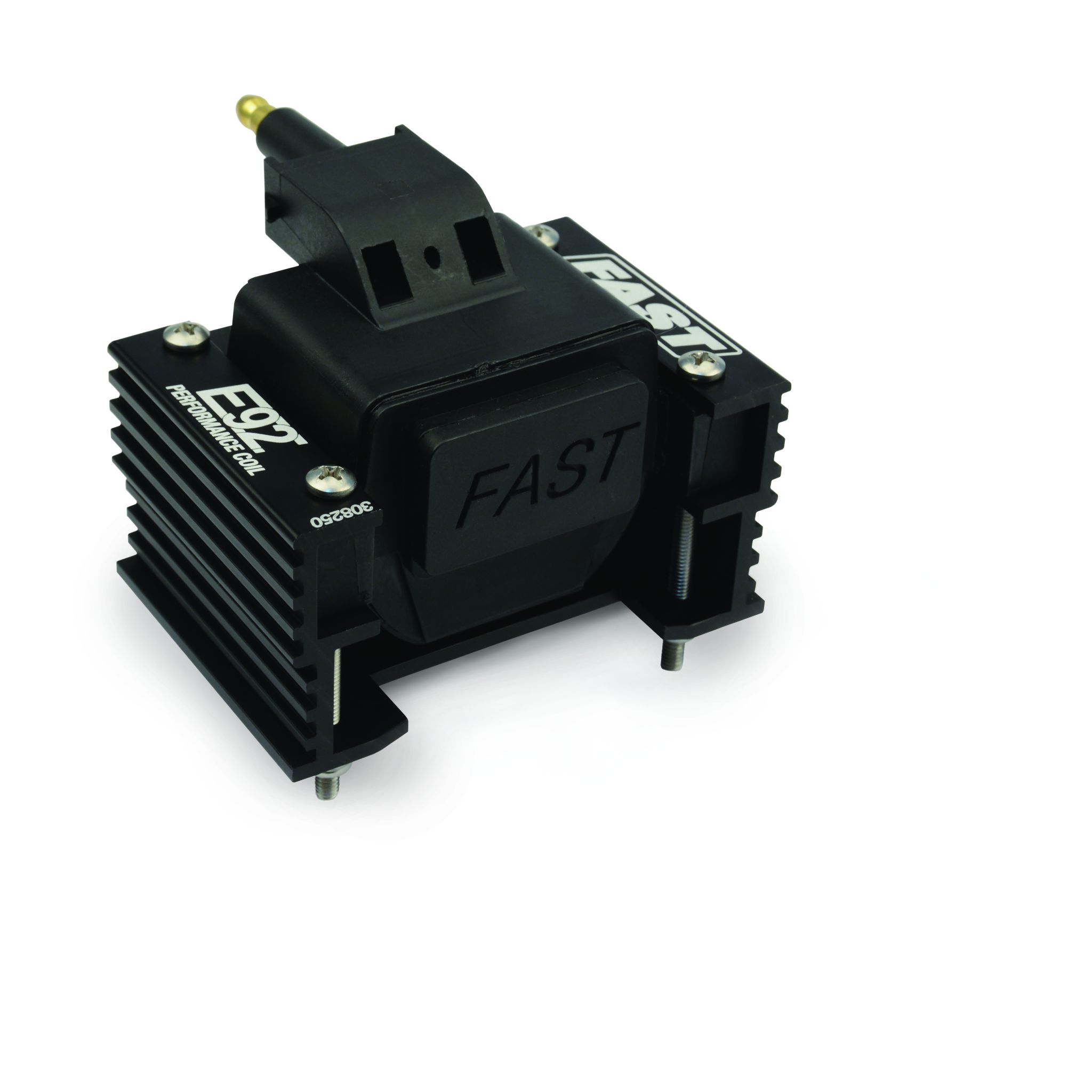

E92 Performance Coil

The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.

Additional Attributes:

GTIN: 00036584286448
Ballast Resistor Included: No
C.A.R.B. EO Number: D-255-60
C.A.R.B. Exempt?: Yes
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Coil Color: Black
Coil Internal Construction: Epoxy
Coil Shape: Square
Coil Style: E-Core
Coil Wire Attachment: Male/HEI
Coil Wire Included: No
Coil Wire Terminal Quantity: 1
Height: 3
Leakage Inductance: .14 mH
Length: 3.75
Maximum Voltage: 48,500 V
Meets or Exceeds OEM Specs: Yes
Mount Type: Integral
Mounting Bracket Included: Yes
Mounting Position: Any
Oil Filled: No
Peak Current: 510 mA
Primary Inductance: 1.7 mH
Primary Resistance: .23 ohms
Quantity: Sold Individually
Secondary Inductance: 5.5 H
Secondary Resistance: 920 ohms
Spark Duration: 245 uS
Terminal Quantity: 2
Turns Ratio: 60:1
Weight: 1.25 lbs
Width: 2.5

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5.9 x 4.1 x 3.4 inches
Weight: 1.4991 PG
