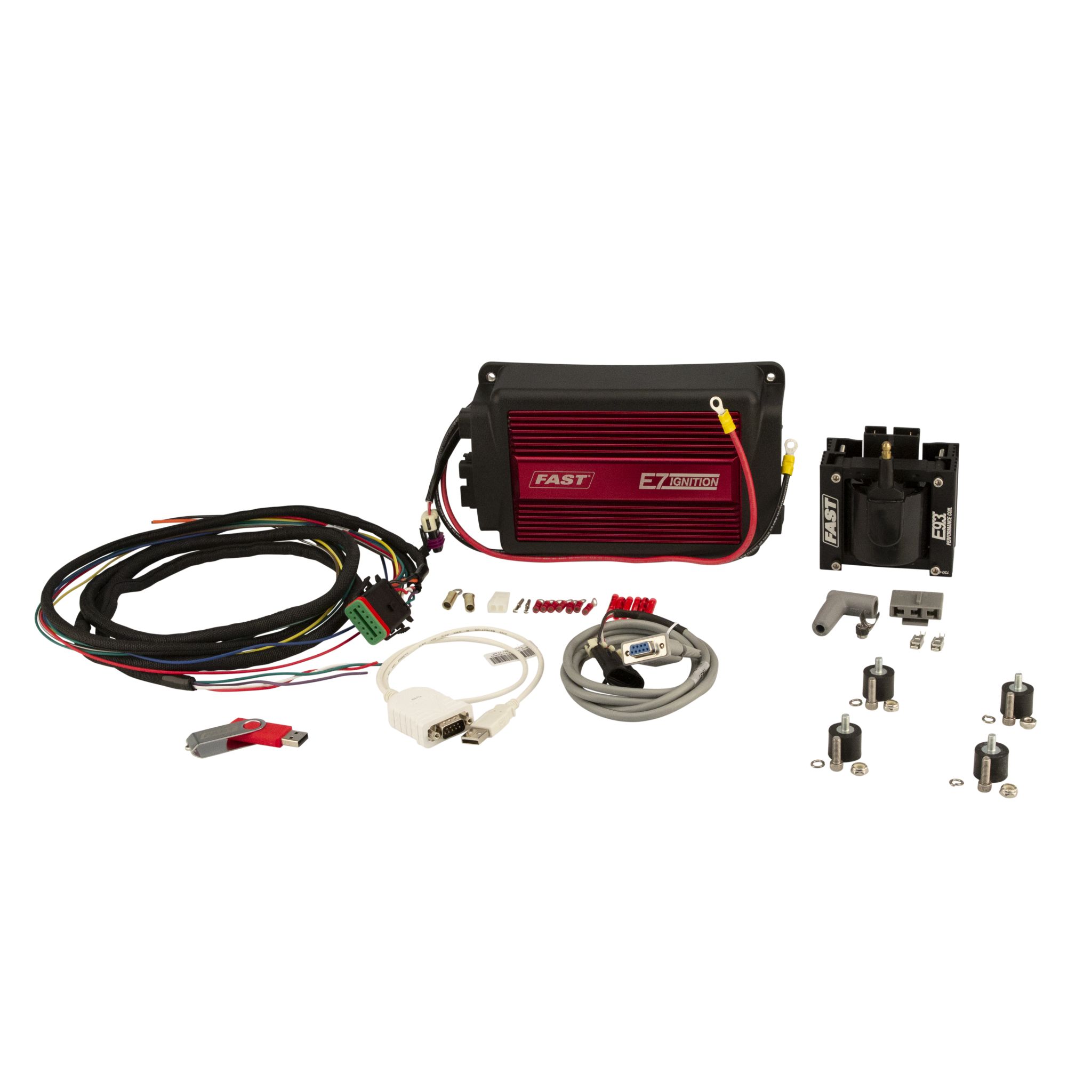

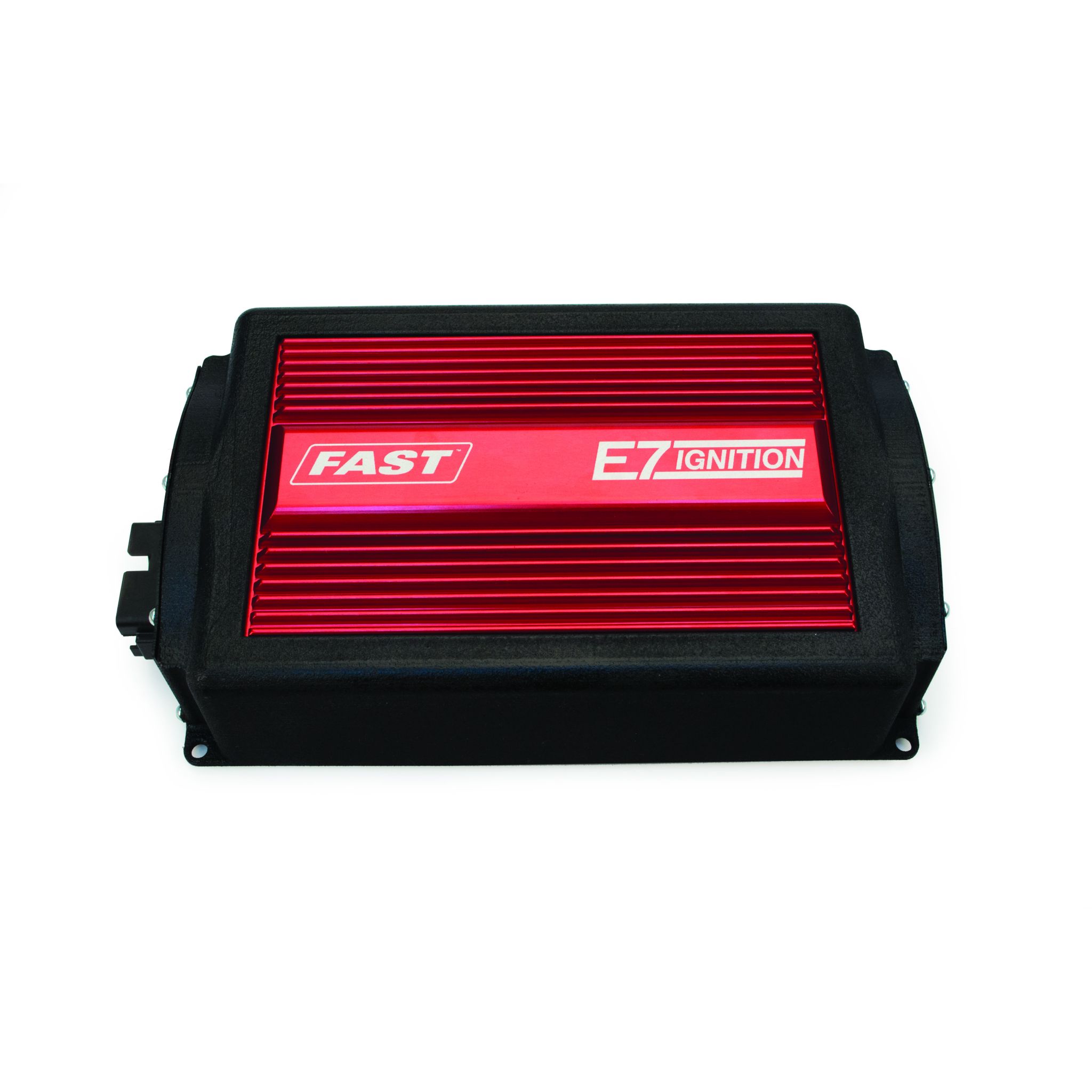

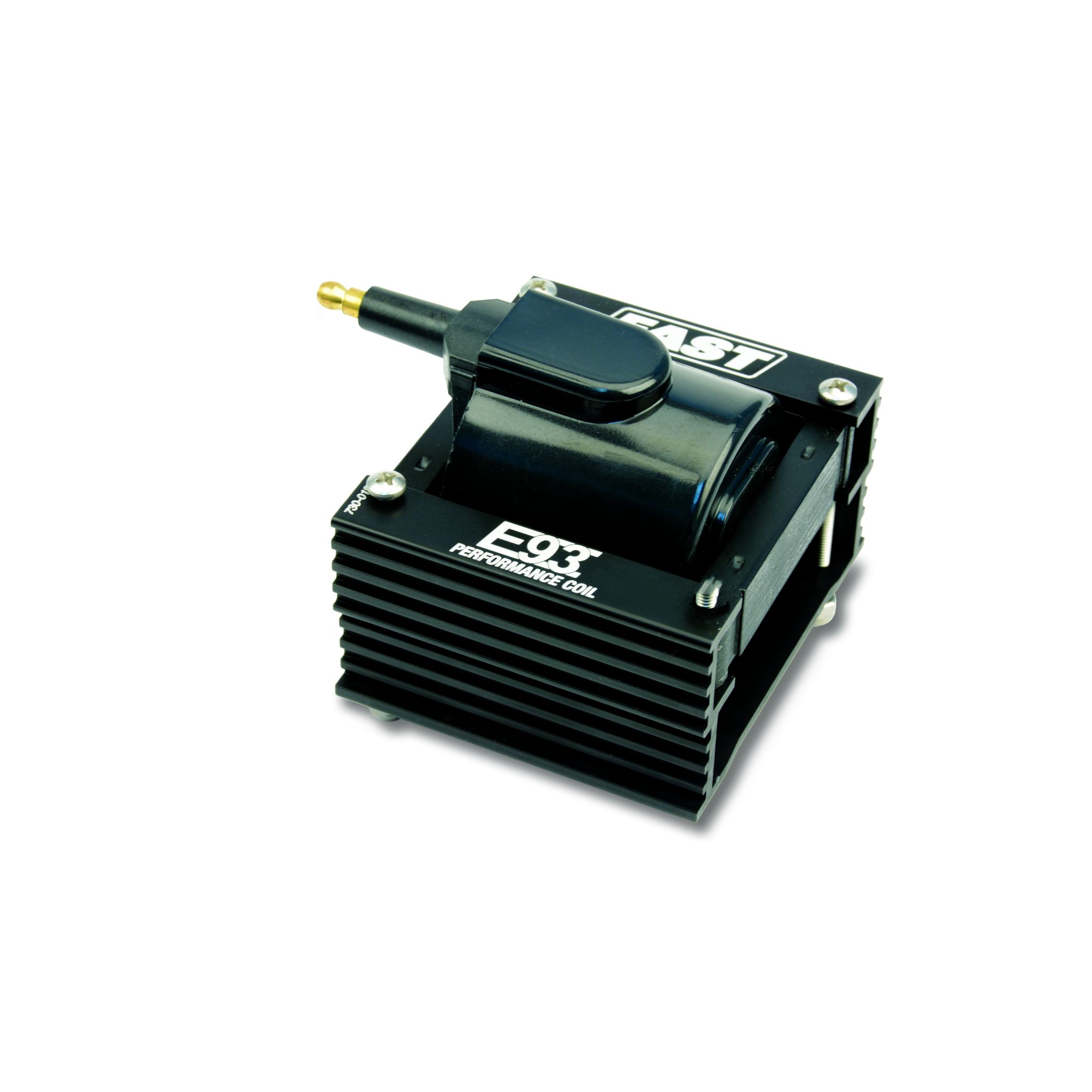

E7 CD Ignition + E93 Racing Coil Ignition Kit

Additional Attributes:

GTIN: 00036584384663
C.A.R.B. EO Number: N/A
C.A.R.B. Exempt?: No
Coil Height: 3.25
Coil Length: 4.25
Coil Width: 3.5
Coil Wire Included: No
Current Draw: 1 Amp per 1,000 RPM
Grade Type: Performance
Hall-Effect Compatible?: Only compatible with aftermarket crank trigger pickup
Ignition Box Height: 2.2
Ignition Box Length: 8.3
Ignition Box Width: 6.3
Instruction Manual Included: Yes
IPU Compatible?: Yes
Leakage Inductance: 6.8
Limiter Accuracy: 30
Limiter Range: 100-12,000
Limiter RPM Increment: 100
Limiter Type: Sequential
Maximum RPM: 12000
Maximum Voltage: 50000
Minimum Operating Voltage: 10
Mounting Hardware Included: Yes
Mounting Tray Included?: No
Multi-Strike Duration (Crankshaft Rotation): 20
Operating Range: 12,000+
Operating Voltage: 10-20
Peak Spark Gap Current: 510
Primary Energy Output: 160
Primary Inductance: 1.9
Primary Resistance: 0.2
Primary Voltage Output: 450
Rev Limiter Included: Yes
Secondary Resistance: 0.82
Software Included?: Yes
Timing Accuracy: 0.5
Timing Retard Stages: 1
Trigger Type: Points & Mag
Turns Ratio: 0.14

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Discontinued

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 19 x 8.5 x 9 inches
Weight: 9.5 PG
