Disc: 500 Series:Ceramic/Organic Facing:11″ X 1-1/8 X 26 Spline:Pull Style

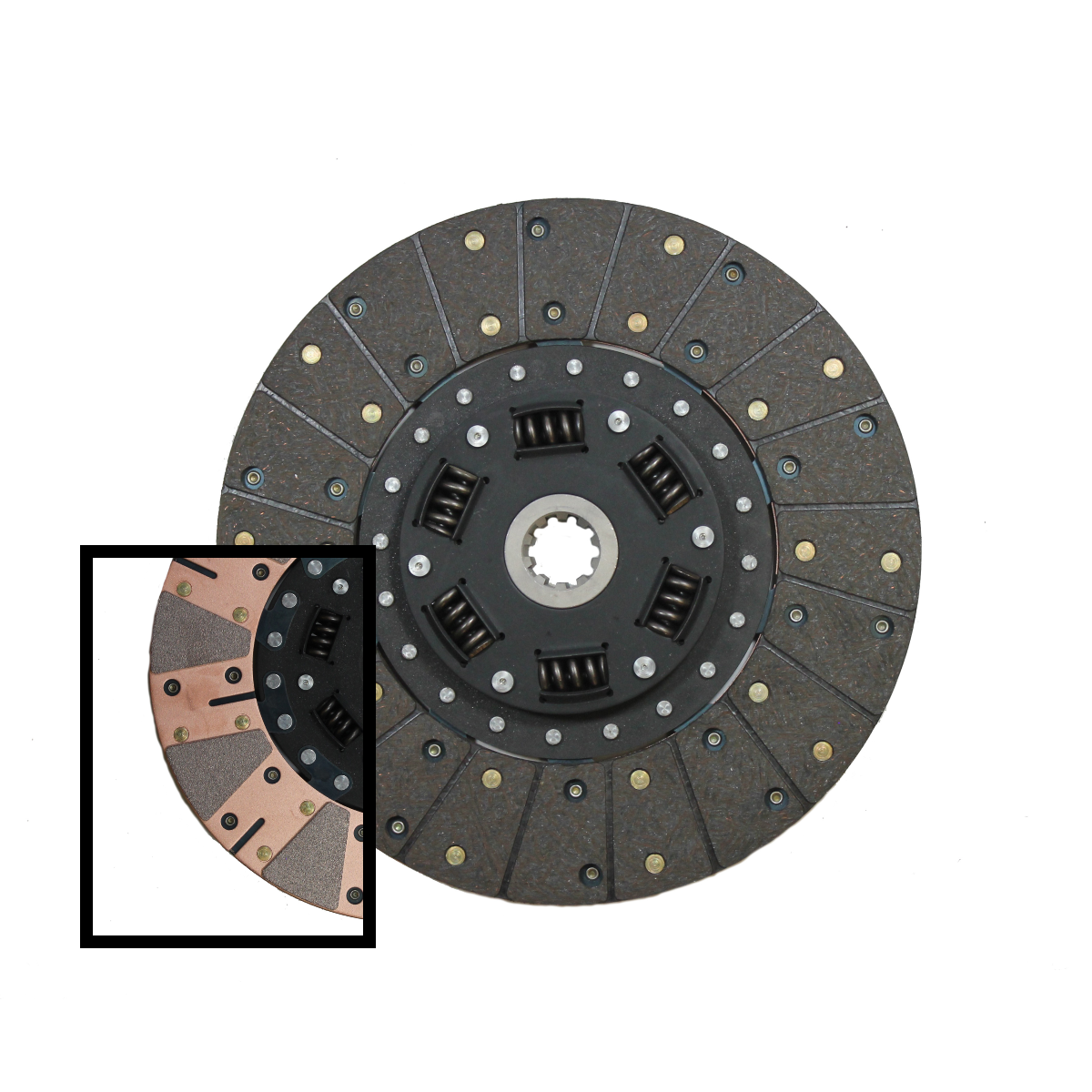

The 500 Series Is a great High Performance Disc In The Single Disc Platform. Suited For Both Street And Strip Duty, The 500 Series Will Give You Both The Smooth Engagement And Holding Power You Need To Get The Job Done. This Disc Has A Segmented Semi Metallic Ceramic Facing On the flywheel side and a full face orgainc on the pressure plate side for a smooth engagement. Mcleod Racing Offer Various Input Shaft Splines For All The Popular Vehicles In 9-11/16", 10.5",11" & 12" Disc Diameters.

Additional Attributes:

GTIN: 00887753018311
Clutch Usage: Performance
Disc Diameter (in.): 11.000
Disc Material: Organic/Ceramic
For Pull Style Actuation: Yes
Hub Style: Solid
Input Shaft Diameter (in.): 1.125
Input Spline Quantity: 26
Marcel: Yes
Notes: This disc is intended to be used with a Factory OEM Dual Mass Flywheel Only. Please call McLeod Tech at 714-630-2764 for further info.
Quantity: Sold individually.

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 12 x 13 x 2 inches
Weight: 5 PG

PDF:

McLeodProductInstructions
