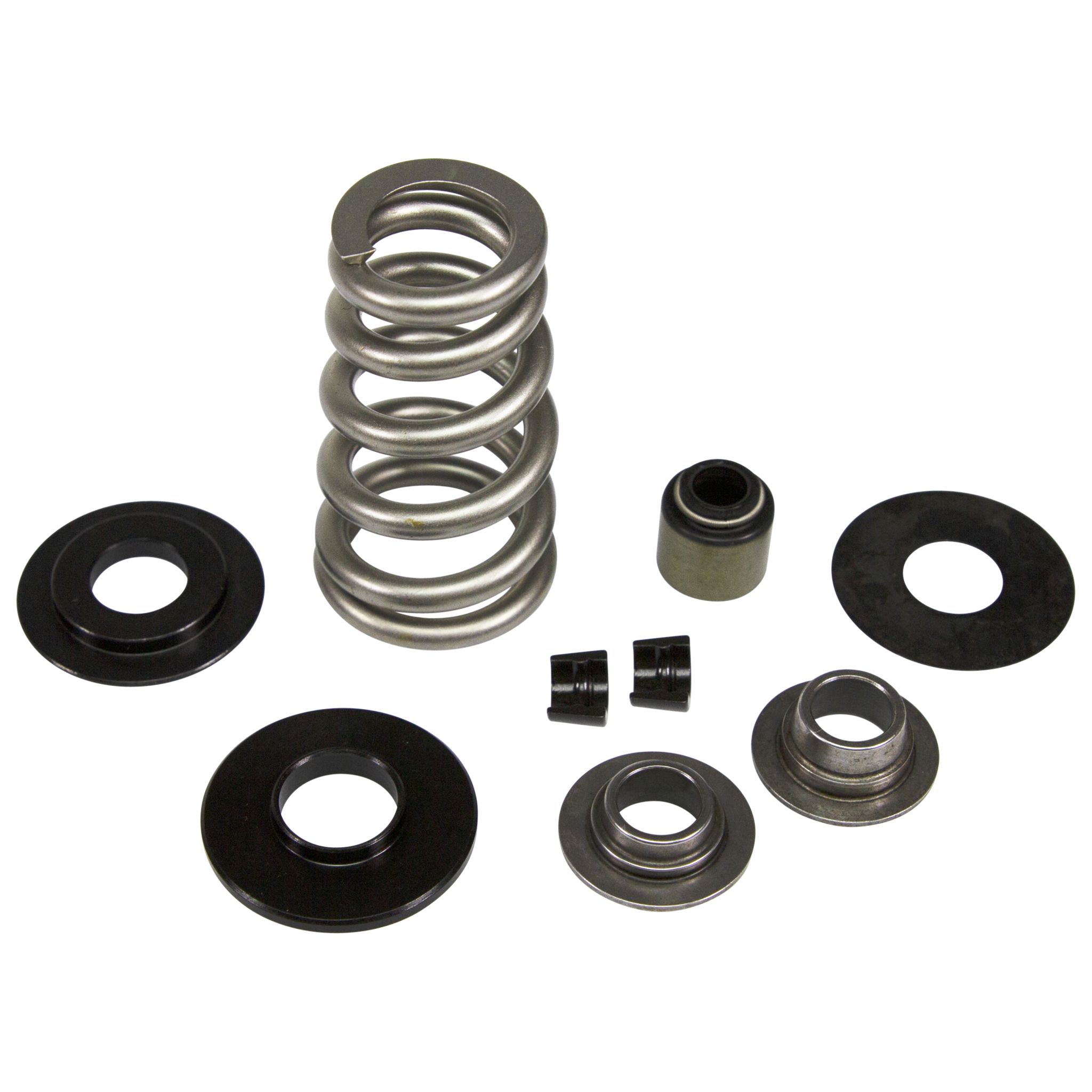

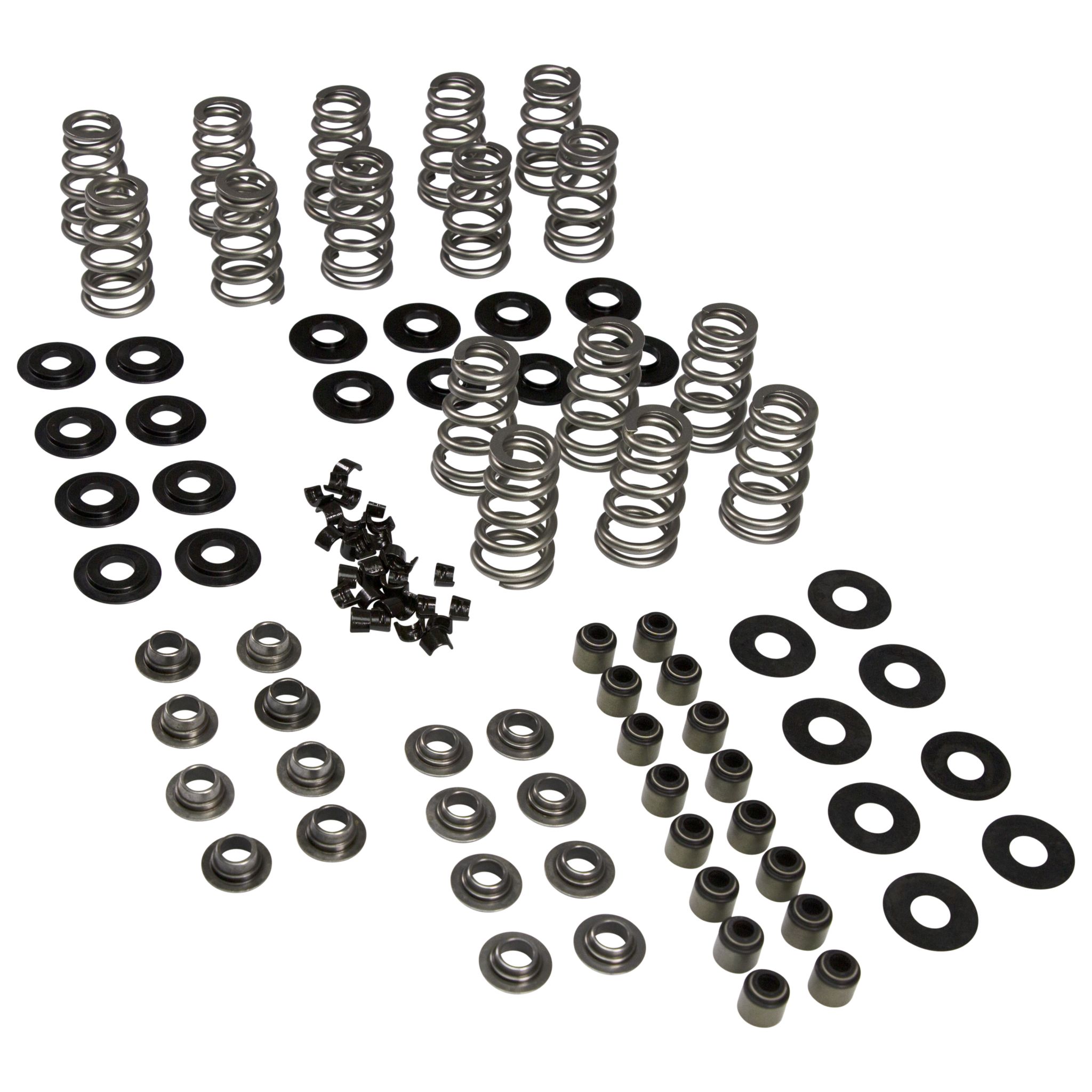

Conical .625″ Max Lift Valve Spring Kit for GM GEN V LT4 w/ Tool Steel Retainers

Additional Attributes:

GTIN: 00036584400011
Big End Outside Diameter: 1.286
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller
Coil Bind Height: 1.125
Damper: No
Free Length: 2.109
ID Big End: 0.918
ID Small End: 0.662
Included Seats: 4680-8
Includes Retainers?: Yes
Includes Seats?: Yes
Includes Shims?: Yes
Installed Height: 1.8
Machine Work Required?: No
Max Lift: 0.625
Number of Springs: 1
Open Load: 410
Retainer Material: Tool Steel
Seat Pressure: 136
Small End Outside Diameter: 1.03
Spring Rate: 440
Spring Seat Type: Steel

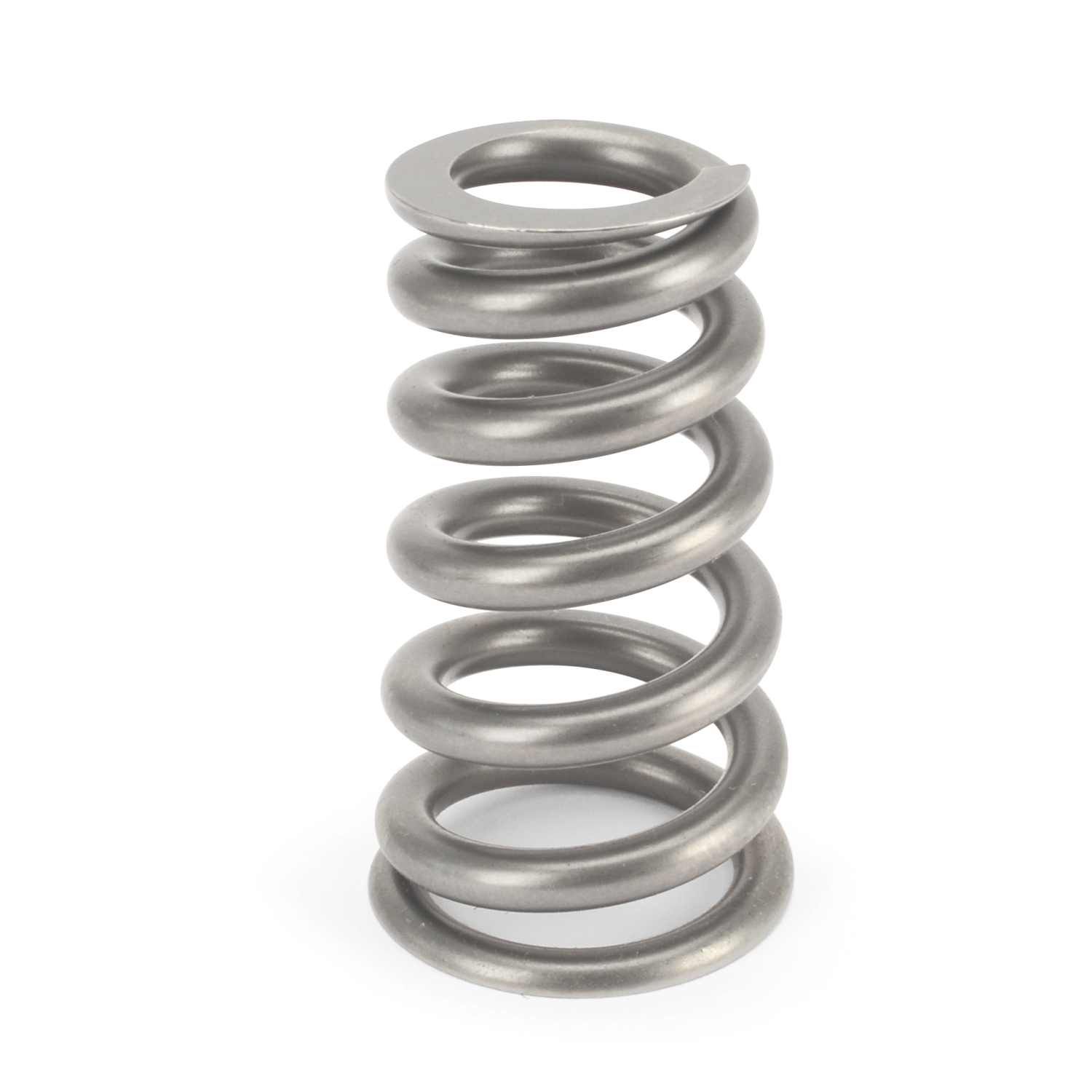

Spring Style: Conical
Valve Spring Series: Conical

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 11.9 x 6.4 x 2.9 inches
Weight: 3.48 PG
