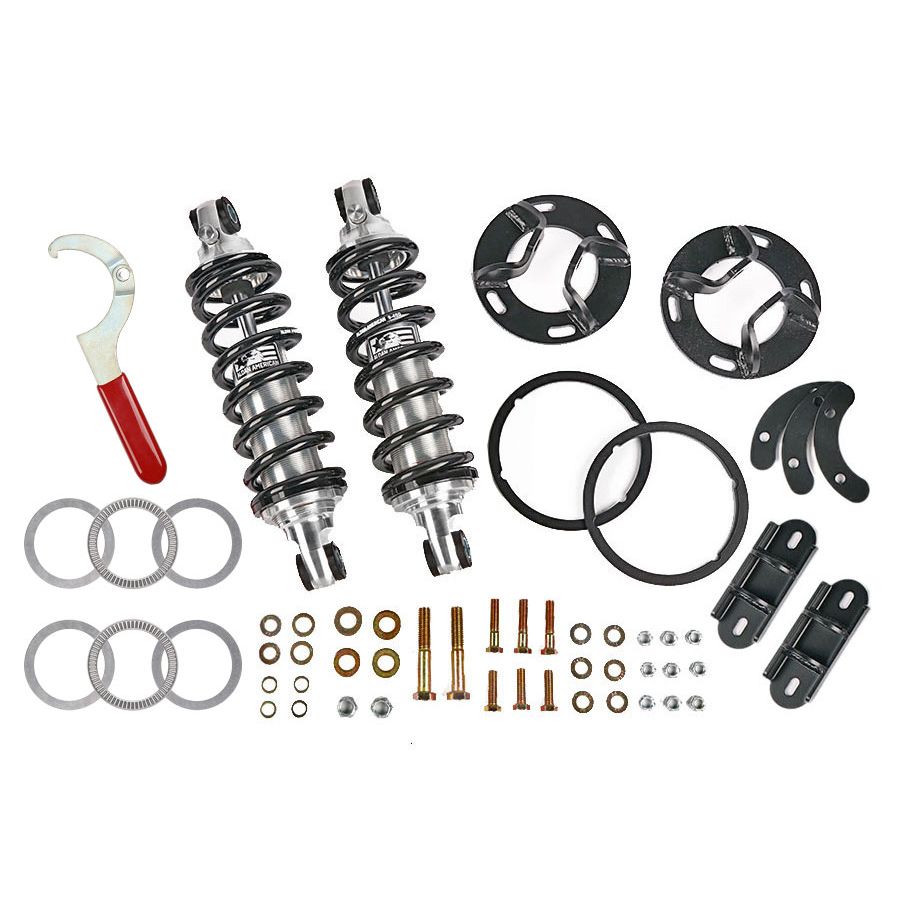

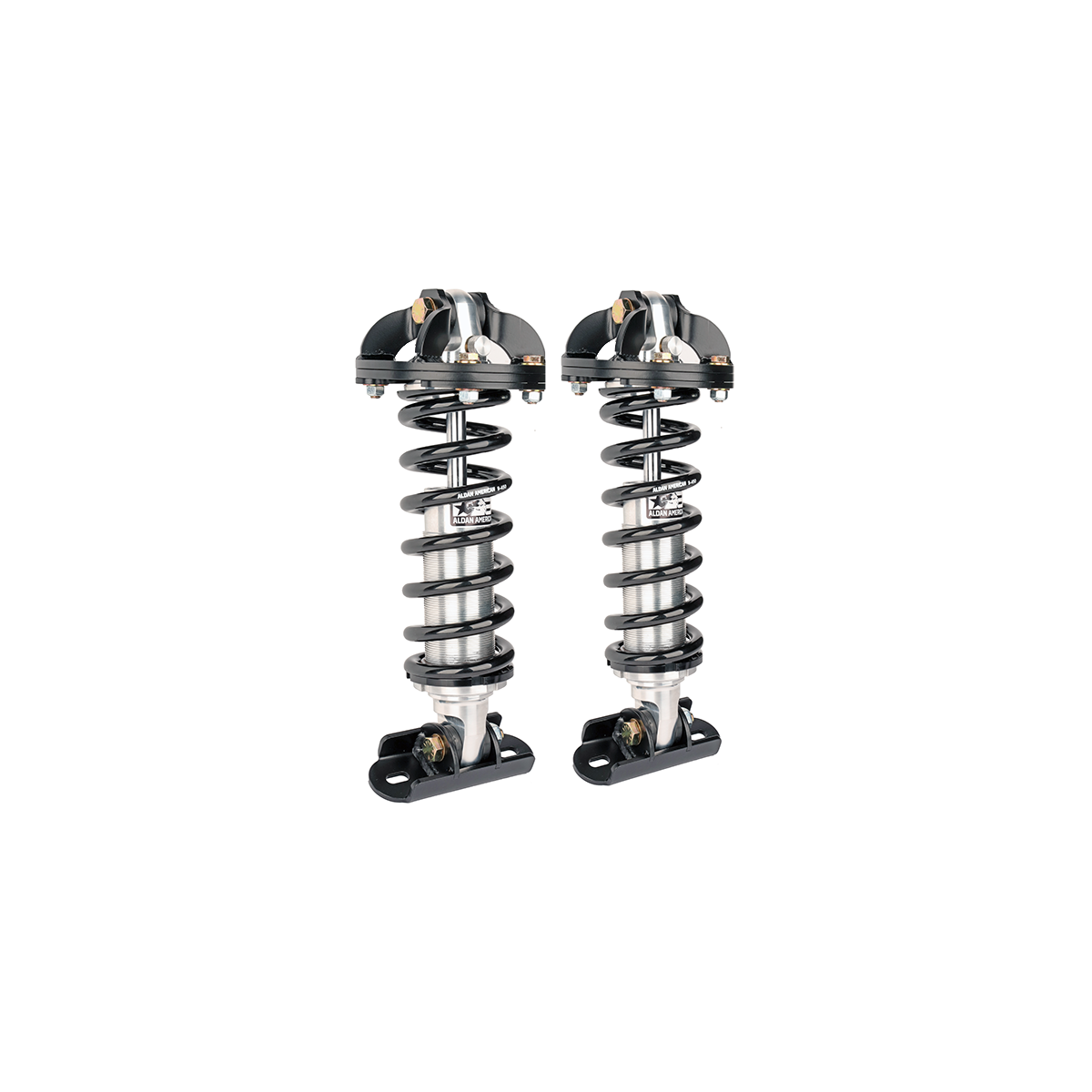

Coil-Over Kit, GM, 62-67 Chevy II, Front, Single Adj. 550 lb. Springs

Additional Attributes:

GTIN: 00680599202940
Adjustable Mounting Bracket Included: No
Adjustable: Yes
Bushing Color: Black
Bushing Material: Polyurethane
Coil Over Springs Included: Yes
Coil-Over Kit Position: Front
Compressed Length: 9.5
Crossmember Included: No
Extended Length: 13
Gas Charged: Yes
Hardware Included: Yes
Internal Design: Twin-tube
Lower Mount Type: Bar pin
Notes: Single adjustable coilovers. 2 coilover shocks, 2 springs, Brackets and Hardware. Recommended for Big Block Vehicles
Number of Valving Selections: 11
Quantity: Sold as a pair.
Shock Body Finish: Natural
Shock Body Material: Aluminum
Shocks Included: Yes
Spring Finish: Black powdercoated
Spring Rate: 550
Suspension Height Adjustment: 0.0-2.0 lowered
Thread Adjustment Range: 5
Tube Outside Diameter: 2 Inches
Upper Mount Type: Eyelet
Welding Required: No

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23 x 9 x 9 inches
Weight: 32 PG

PDF:

X-0016, ALDAN-Shock-Install-Guide-FINAL
