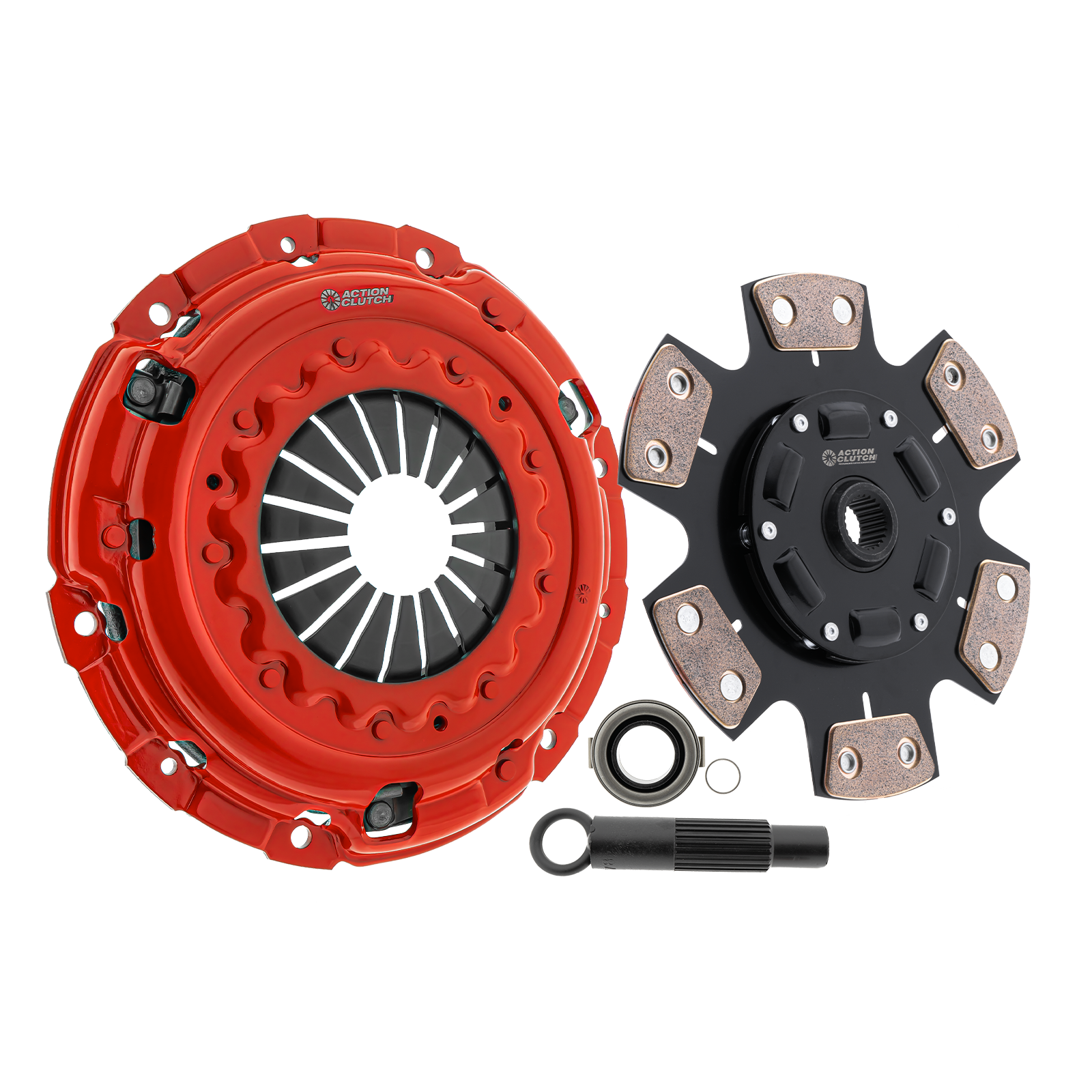

Clutch Kit (2MS) for Acura Integra 1986-1989 1.6L SOHC (D16)

Action Clutch's Stage 5 (2MS) Clutch Kit allows for maximum performance of mid ranged powered vehicles. Our heavy-duty pressure plate is designed with a dual clamp load diaphragm and reinforced drive straps, creating an extremely durable system that you can rely on. This MIBA Sprung Ceramic kit features a MIBA Ceramic (available in a 4 or 6 puck) disc. With lightning-fast engagement and minimal clutch chatter after proper break-in, this clutch kit is ideal for harnessing all the power and performance you need out of your vehicle without compromising on reliability or longevity. At Action Clutch, safety is our top priority. We understand how catastrophic engine or transmission damage can be caused by springs popping out which is why we use our patented, fully enclosed spring retainers to keep your investment protected at all times. Every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time. 200% INCREASED HOLDING CAPACITY OVER FACTORY KIT RACE APPLICATIONS / HEAVY TRACK USE / LIGHT STREET USE

Additional Attributes:

GTIN: 00887753694348
Alignment Tool Included: Yes
Alignment Tool Model: AT57
Break-in Care: 500 street miles. Keep RPM’s under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Clutch Disk Diameter: 200
Clutch Disk Model: ACR-CB6-200 7/8X21T-S
Clutch Disk Spline Count: 21
Clutch Disk Spline Diameter: 7/8
Clutch Kit Type: Stage 5 Clutch Kit (2MS)
Counterweight Assist: No
Disclaimer: Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Flywheel Included: No
Friction Material: Metallic
Installation Care: Requires AC101FW for proper installation.
Mounting Hardware Included: No
Package Contents: Sprung MIBA Ceramic 6 Puck Disc
Pilot Bearing Included: Yes
Pilot Bearing Model: 6002RS
Pressure Plate Model: HCC507HD 30
Prop 65 Yes/No: Yes
Release Bearing Included: Yes
Release Bearing Model: RB-0304
Release Style: Conventional Release Bearing
Spring Cover Included: Yes
Weight: 15

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 13 x 13 x 4 inches
Weight: 15 PG
