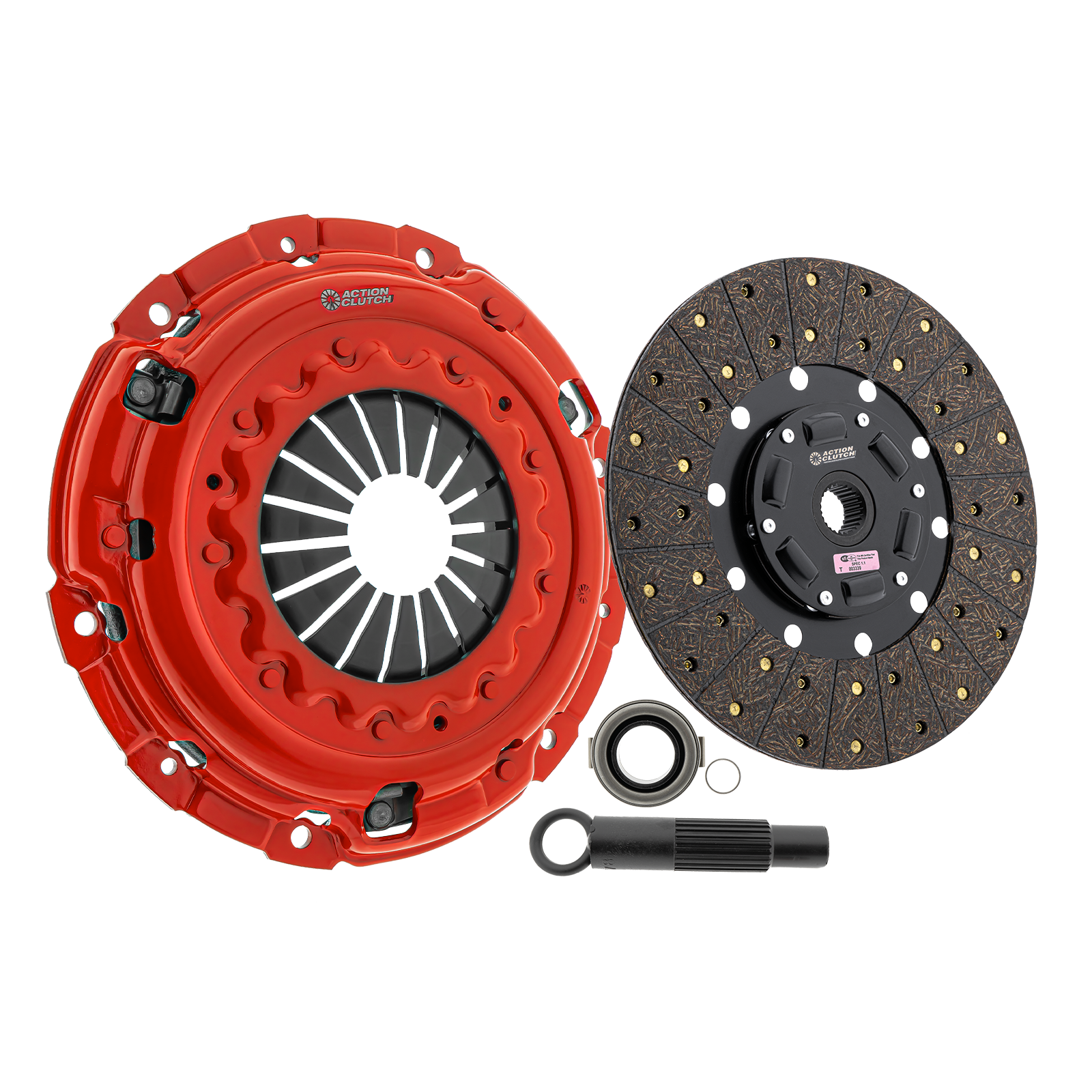

Clutch Kit (1OS) for Toyota Corolla All Trac 1988-1992 1.6L DOHC (4AFE) AWD

Action Clutch Stage 1 (1OS) Kits have been designed for vehicles ranging from stock to basic bolt-on cars. It utilizes a reinforced Steel Backed Copper Kevlar Organic friction material, coupled with a single diaphragm heavy-duty pressure plate to give you smooth and reliable engagement without sacrificing the OEM-like pedal feel. At Action Clutch, safety is our top priority. We understand how catastrophic engine or transmission damage can be caused by springs popping out which is why we use our patented, fully enclosed spring retainers to keep your investment protected at all times. Every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time. 70% INCREASED HOLDING CAPACITY OVER FACTORY KIT RECOMMENDED FOR HEAVY-DUTY STREET USE AND MILD TRACK-USE

Additional Attributes:

GTIN: 00887753709172
Alignment Tool Included: Yes
Alignment Tool Model: AT11
Break-in Care: 500 street miles. Keep RPM’s under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Clutch Disk Diameter: 225
Clutch Disk Model: ACR-SB-225 1 1/8X21T
Clutch Disk Spline Count: 21
Clutch Disk Spline Diameter: 1 1/8
Clutch Kit Type: Stage 1 Clutch Kit (1OS)
Counterweight Assist: No
Disclaimer: Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Flywheel Included: No
Friction Material: Organic
Mounting Hardware Included: No
Package Contents: Sprung Organic Disc
Pilot Bearing Included: Yes
Pressure Plate Model: TYC921
Prop 65 Yes/No: Yes
Release Bearing Included: Yes
Release Bearing Model: 614084
Release Style: Conventional Release Bearing
Spring Cover Included: Yes

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 13 x 13 x 4 inches
Weight:
