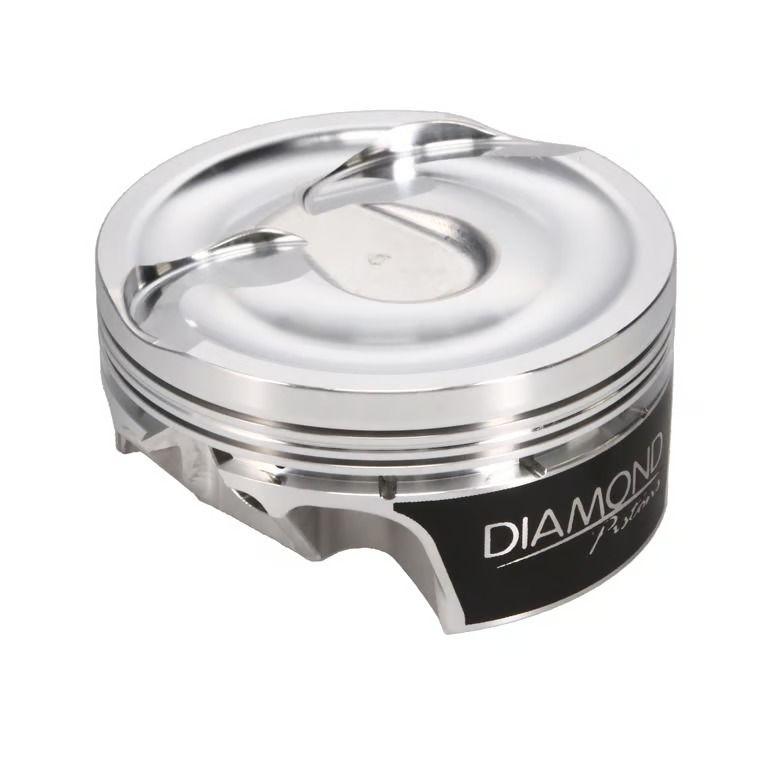

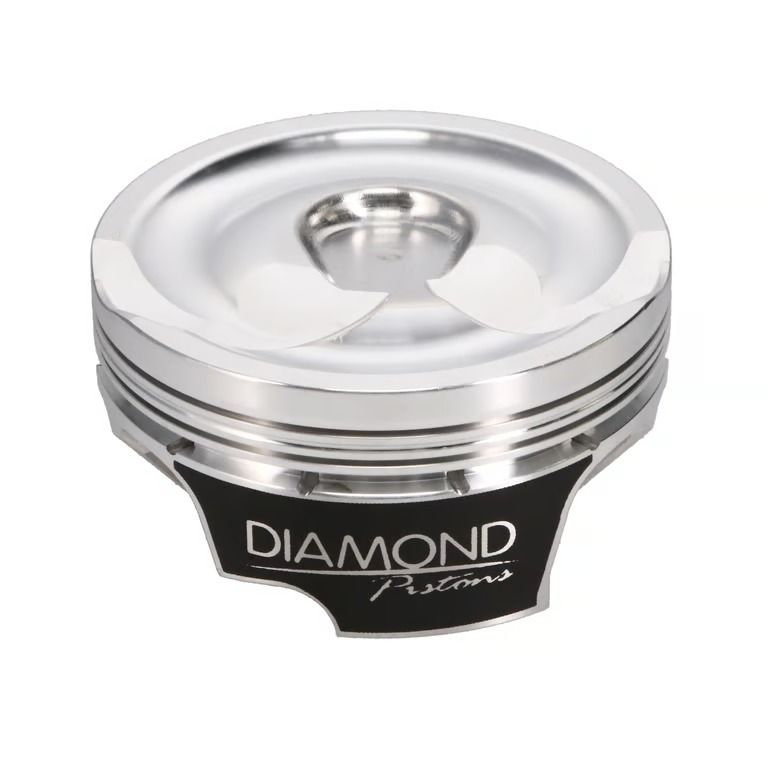

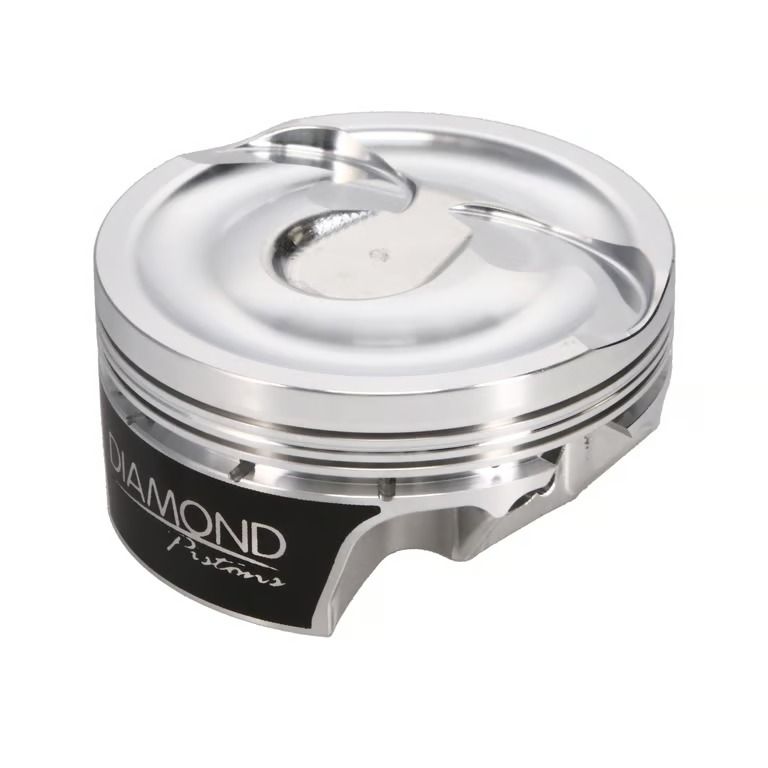

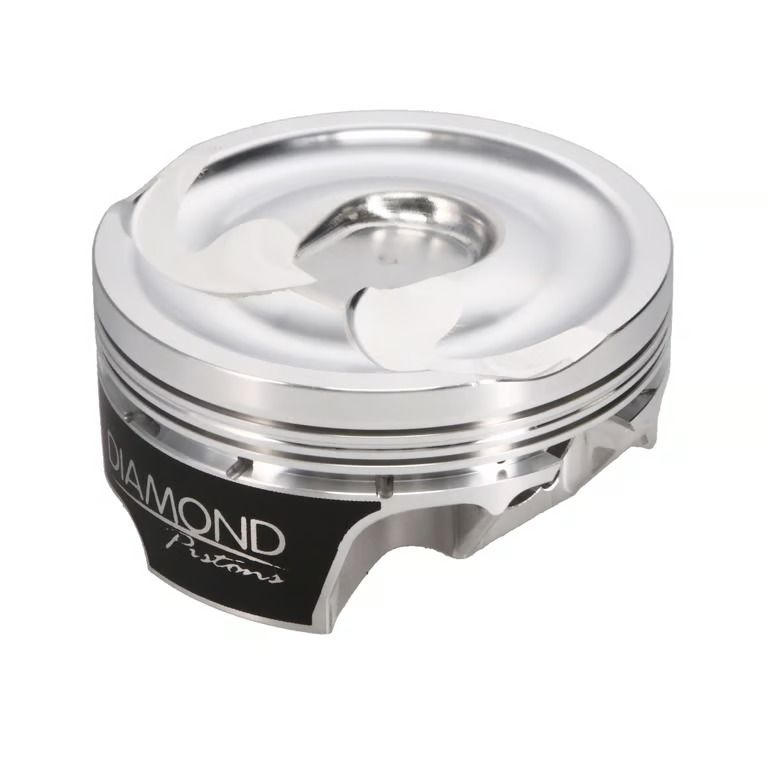

Chevy Gen V LT1/LT4 Street Strip Piston Kit - 4.070 in. Bore - 1.115 in. CH, -16.00 CC
Chevy Gen V LT1/LT4 Street Strip Piston Kit - 4.070 in. Bore - 1.115 in. CH, -16.00 CC
Chevy Gen V LT1/LT4 Street Strip Piston Kit - 4.070 in. Bore - 1.115 in. CH, -16.00 CC
Chevy Gen V LT1/LT4 Street Strip Piston Kit - 4.070 in. Bore - 1.115 in. CH, -16.00 CC

Chevy Gen V LT1/LT4 Street Strip Piston Kit – 4.070 in. Bore – 1.115 in. CH, -16.00 CC

4.070 in. Bore – -16.00 CC Volume – 1.115 in. Comp Height

    • 3D milling on piston crowns for ready to install finish
    • Inboard forging design with fully machined under crown for maximum strength
    • Valve pockets Designed to work with Chevy Gen V LT1/LT4 cylinder heads
    • Side gas ports for better ring seal
    • Moly skirt coating for friction loss and skirt wear protection
    • Top ring down dimension: .300″
    • Ratios figured for .053 head gasket
    • Premium 1.5mm x 1.5mm x 3.0mm ring package included
    • Premium H-13 .250W wrist pins included chamfered for round wire locks
    • Valve pocket depth: 0.200″ intake and .200″ exhaust
    • 2618 material for High HP-NOS-Boost applications – rated for 2000HP
SKU BJBX-11549-R2-8-H Category

$ 2,304.19

Diamond?s Domestic line of pistons for Chevrolet, Ford, Chrysler, Pontiac, Oldsmobile, and Buick engines are focused on durability and performance. They are forged and machined 100% in the USA, utilize extremely strong 2618 aluminum and incorporate premium Trend Performance wrist pins. Each piston is purpose designed with the engine architecture in mind and covers popular bore sizes, strokes, and cylinder head configurations. Whether you?re building a big block, small block or something a little less common, Diamond has you covered! Don?t see the exact part you need in our catalog? No problem, we can custom make you a piston to your exact specifications.

Additional Attributes:

GTIN: 00193564374158
Add-On: 09454070
Add-On: H9272250225C
Add-On: 015111-16
Add-On: 019010060-8
Bore Diameter: 4.070
Compression Height: 1.115
Compression Ratio: 10.70
EBAY Category ID: 33623
Engine – Web: Gen V LT
Engine Detail – Web: LT1/LT4
Engine Type: ICE
Engine: Gen V LT
Forging Type: Forged Side Relief
Industry: Automotive
Make: Chevrolet
Oil Rail Support Included: Yes
Oil Rail Support Part Number: 019010060-8
Oil Ring Thickness: 3.00
Piston Quantity: 8
Piston Series: LT1/LT4
Piston Volume: -16.00
Product Market: Modern Muscle
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Ring Set Part Number: 09454070
Ring Set Thickness: 1.20 MM x 1.20 MM x 3.00 MM
Rod Length: 6.125
Second Compression Ring Thickness: 1.20
Stroke: 4.000
Top Compression Ring Thickness: 1.20
VP Exhaust Depth: 0.200
VP Intake Depth: 0.200
Wrist Pin Dimensions: 0.927 x 2.250
Wrist Pin Included: Yes
Wrist Pin Length: 2.250
Wrist Pin Outside Diameter: 0.927
Wrist Pin Part Number: H9272250225C
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 015111-16

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28.000 x 12.000 x 5.000 inches
Weight: 18.000 PG

Information complémentaire

Poids8.16 kg
Dimensions28.000 × 12.000 × 5.000 cm
