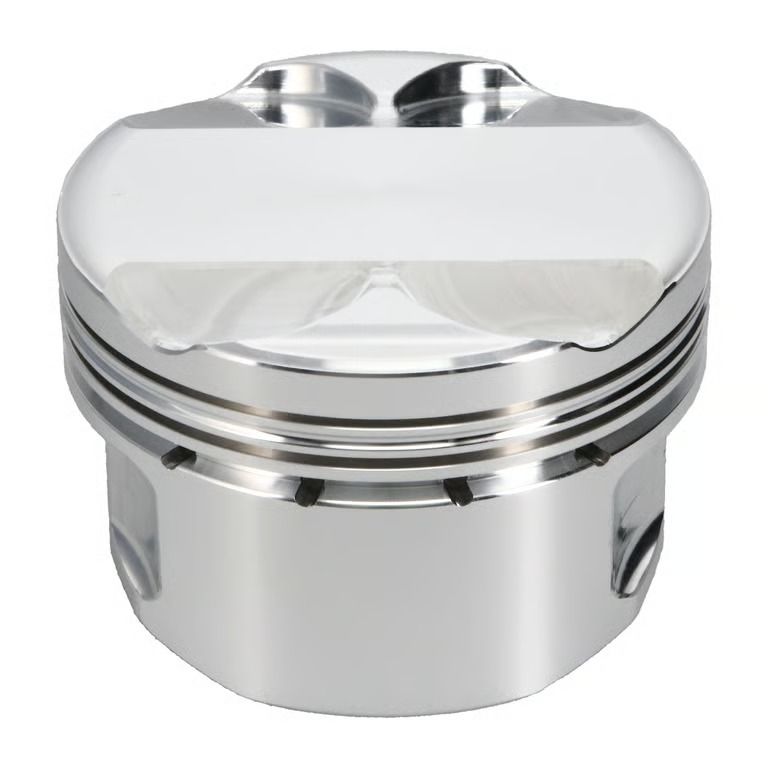

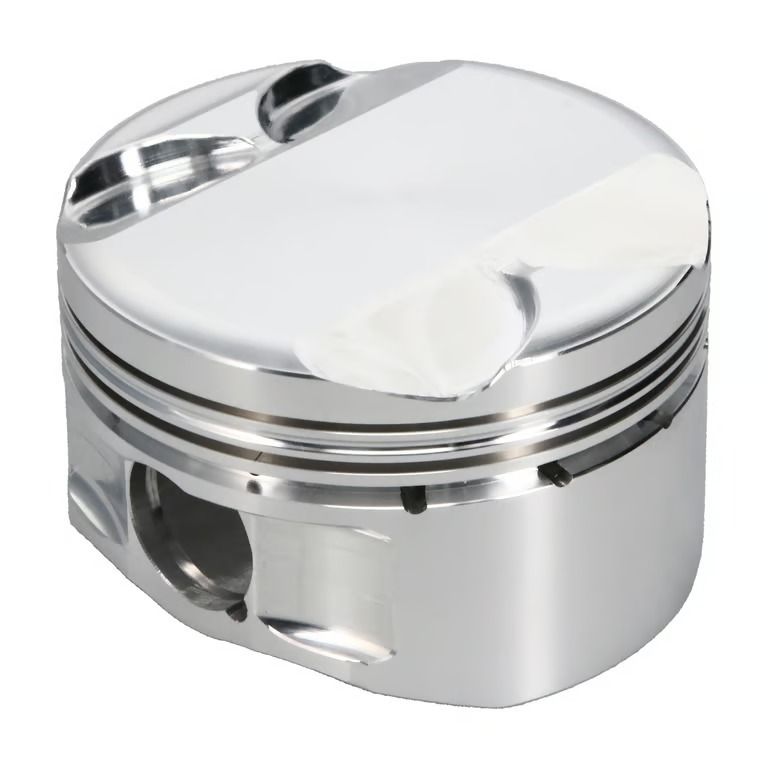

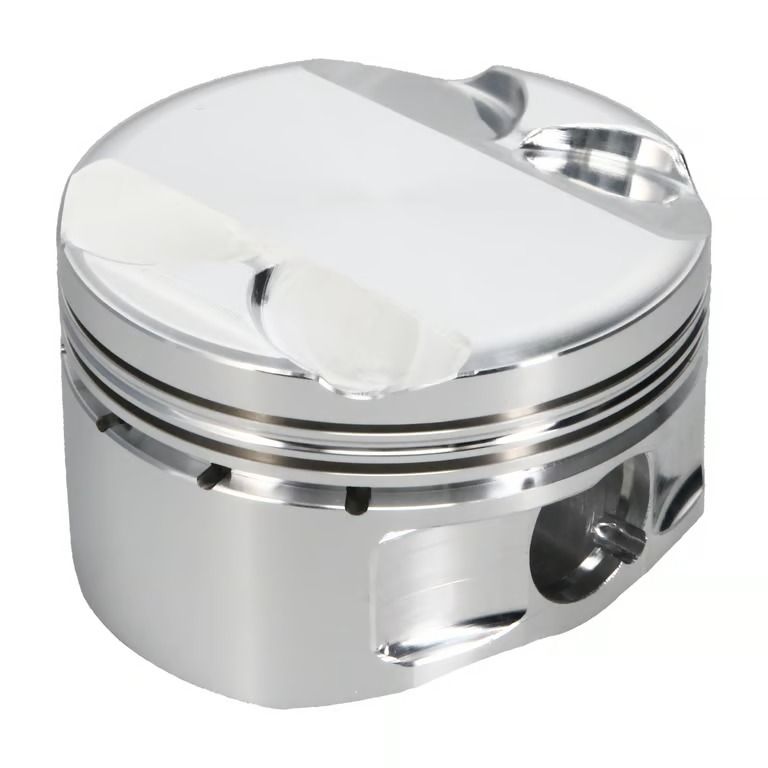

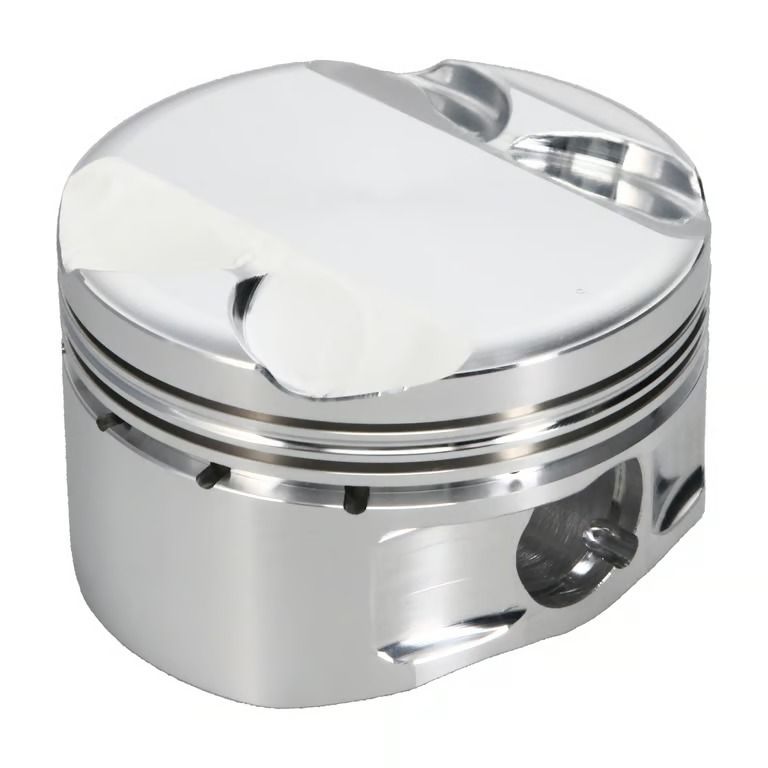

Chevrolet Ecotec 86.00mm Bore x 3.724 Stroke x 5.768 Rod x 1.053 Comp Height; H13 Upgraded Kit
Chevrolet Ecotec 86.00mm Bore x 3.724 Stroke x 5.768 Rod x 1.053 Comp Height; H13 Upgraded Kit
Chevrolet Ecotec 86.00mm Bore x 3.724 Stroke x 5.768 Rod x 1.053 Comp Height; H13 Upgraded Kit
Chevrolet Ecotec 86.00mm Bore x 3.724 Stroke x 5.768 Rod x 1.053 Comp Height; H13 Upgraded Kit

Chevrolet Ecotec 86.00mm Bore x 3.724 Stroke x 5.768 Rod x 1.053 Comp Height; H13 Upgraded Kit

86.00 mm Bore – -2.20 CC Volume – 1.053 in. Comp Height – H13 Pin

    • 3D milling on piston crowns for ready to install finish
    • Offset pins for quiet operation
    • Moly skirt coating for friction loss and skirt wear protection
    • Side gas ports for better ring seal
    • Ratios figured for 82.0mm x .045 head gasket @ 8.661 Deck Height
    • Top ring down dimension: .325″
    • Premium 8620 .180W wrist pins chamfered for roundwire locks included
    • Premium 1.0mm x 1.2mm x 2.8mm ring package included
    • Over-sized valve pockets – for larger than stock valve sizes
    • Valve pocket depth: 0.100″/0.060″ intake and 0.080″ exhaust
    • 2618 material for High HP/Boost applications
SKU BJBX-10000-4-H Category

$ 1,281.11

Diamond?s years of working alongside top sport compact race teams have helped generate an exceptionally robust line of sport compact pistons. Race proven designs are combined with precision CNC machining, strong 2618 forged aluminum, and premium Trend Performance wrist pins to deliver unmatched durability and performance. Whether you?re looking more power, boost readiness, or chasing records and win lights on the racetrack, Diamond?s mild-to-wild sport compact line is ready to help you get there. Don?t see the exact part you need in our catalog? No problem, we can custom make you a piston to your exact specifications.

Additional Attributes:

GTIN: 00193564367204
Add-On: 09143385
Add-On: H7872250200C
Add-On: 015126-8
Add-On: 019012346-4
Bore Diameter: 86.00
Compression Height: 1.053
Compression Ratio: 9.50
EBAY Category ID: 33623
Engine – Web: Ecotec
Engine Detail – Web: Ecotec L61
Engine Type: ICE
Engine: Ecotec
Industry: Automotive
Make: Chevrolet
Oil Rail Support Included: Yes
Oil Rail Support Part Number: 019012346-4
Oil Ring Thickness: 2.80
Piston Average Weight: 335
Piston Series: Ecotec L61
Piston Volume: -2.20
Product Market: Domestic
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Ring Set Part Number: 09143385
Ring Set Thickness: 1.20 MM x 1.50 MM x 2.80 MM
Rod Length: 5.768
Second Compression Ring Thickness: 1.50
Stroke: 3.724
Top Compression Ring Thickness: 1.20
VP Exhaust Depth: 0.091
VP Intake Depth: 0.077
Wrist Pin Dimensions: 0.787 x 2.250
Wrist Pin Included: Yes
Wrist Pin Length: 2.250
Wrist Pin Outside Diameter: 0.787
Wrist Pin Part Number: H7872250200C
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 015126-8

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 16.500 x 12.000 x 4.000 inches
Weight: 10.000 PG
