Chevrolet Camaro 2.0T 2016+/Cadillac ATS 2013+ Hot-Side Intercooler Pipe Kit

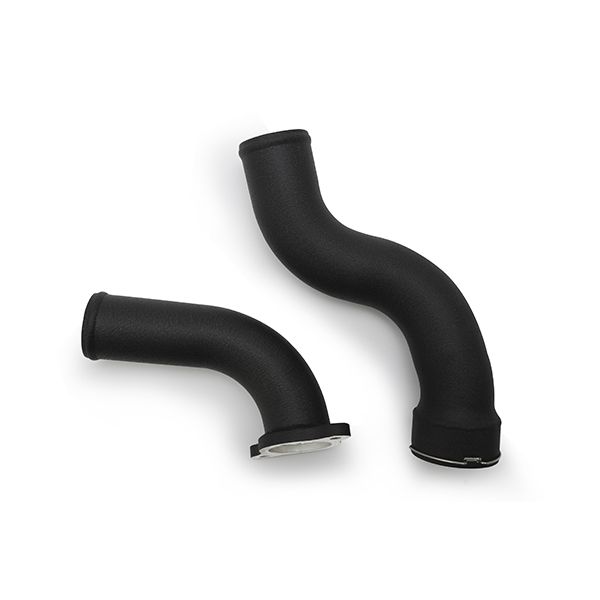

Expose your 2.0T LTG engine to improved airflow with the Mishimoto Hot-Side Intercooler Pipe Kit for the 2016+ Chevrolet Camaro. The stock intercooler pipe is plagued by bends and a restrictive diameter. Both slow the airflow to your intercooler. The stock piping is also constructed of plastic and rubber, which will deteriorate over time. The Mishimoto intercooler pipe increases the overall diameter over stock and is constructed of mandrel-bent aluminum to minimize any airflow restrictions. The hot-side pipe can handle the power you throw at it when turning up the boost on your LTG. Mishimoto's hot-side Camaro 2.0T intercooler pipe also features a CNC-machined connection flange to ensure a direct connection to the turbo. In addition, the hot-side pipe includes a durable silicone coupler and stainless steel T-bolt clamps to ensure a leak free connection. Installation can be completed without modification to the engine bay as it is compatible with the stock intercooler. The Mishimoto hot-side intercooler pipe is available in either wrinkle black or a polished finish, and like all our Camaro 2.0T performance parts, includes the Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00748354036725
Install Difficulty: 3
OptionLabel: Wrinkle Black
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2016+ Chevrolet Camaro 2.0T/2013+ Cadillac ATS 2.0T
SellingPoint02: Dyno-proven maximum gains up to 7 whp and 8 wtq on a stock tune
SellingPoint03: 29-percent greater internal volume than stock
SellingPoint04: 20-percent increase in flow
SellingPoint05: Aluminum intercooler pipe replaces weak stock rubber pipe
SellingPoint06: Utilizes stock quick-disconnect fittings for easy installation
SellingPoint07: 2.25-in to 2.5-in mandrel-bent aluminum piping

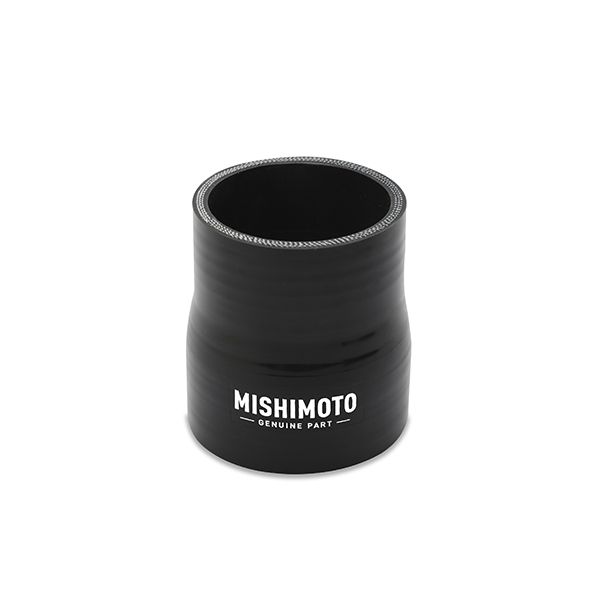

SellingPoint08: Includes Mishimoto silicone coupler and Mishimoto T-bolt clamps
SellingPoint09: Available in polished and wrinkle black
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2016+ Chevrolet Camaro 2.0T–2013-2019 Cadillac ATS 2.0T
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: Alpha
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: LTG
TechSpec Includes: (1) Aluminum Pipe w/ CNC-machined quick-disconnect–(1) Aluminum Pipe w/ CNC-machined 2-bolt flange–(1) Quick-Disconnect Spring Clip–(1) 2.25-in to 2.5-in Silicone Transition Coupler–(1) 2.5-in T-bolt Clamp–(1) 2.75-ft T-Bolt Clamp–Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 10 x 8 inches
Weight: 6.75 PG
