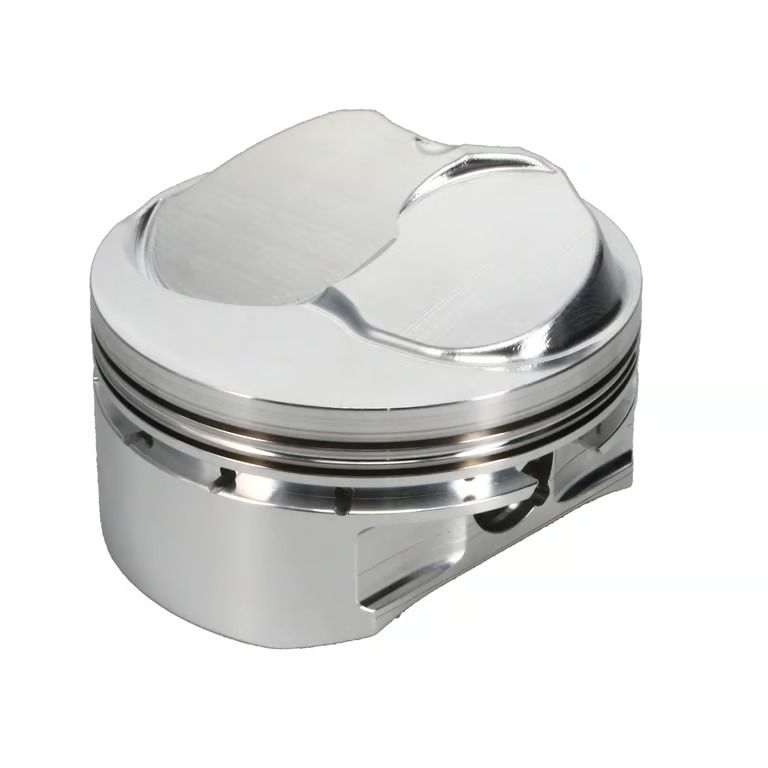

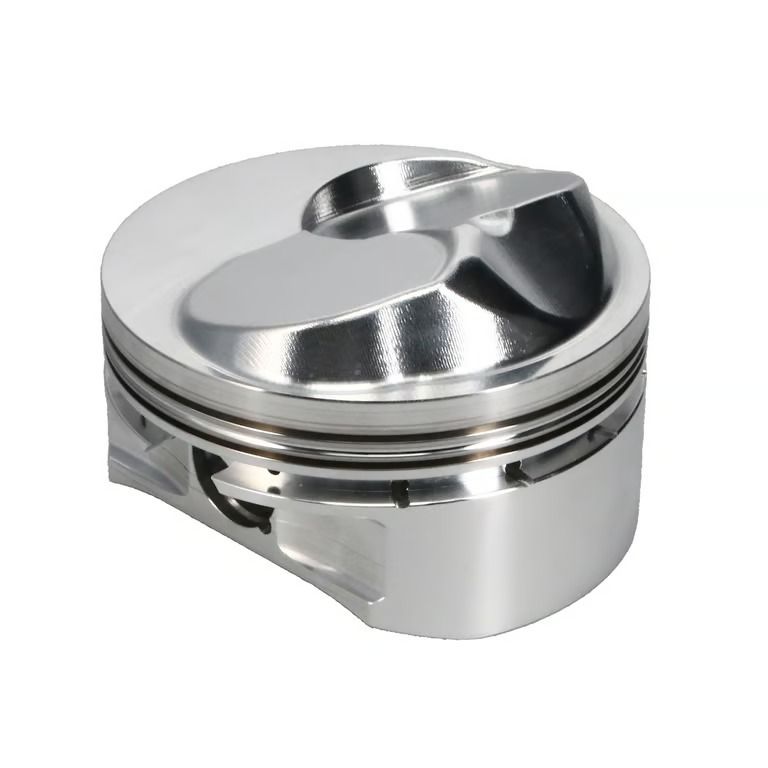

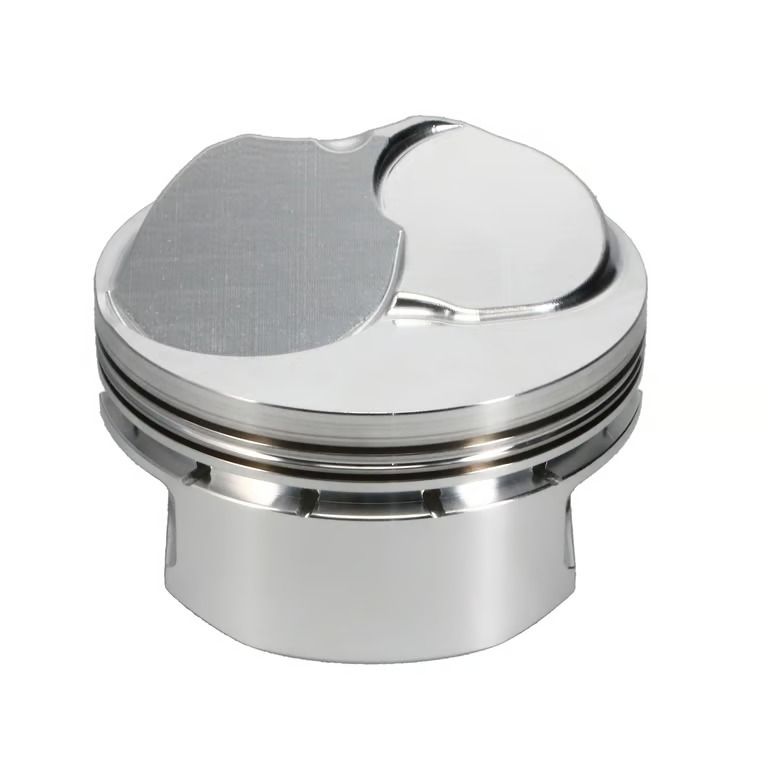

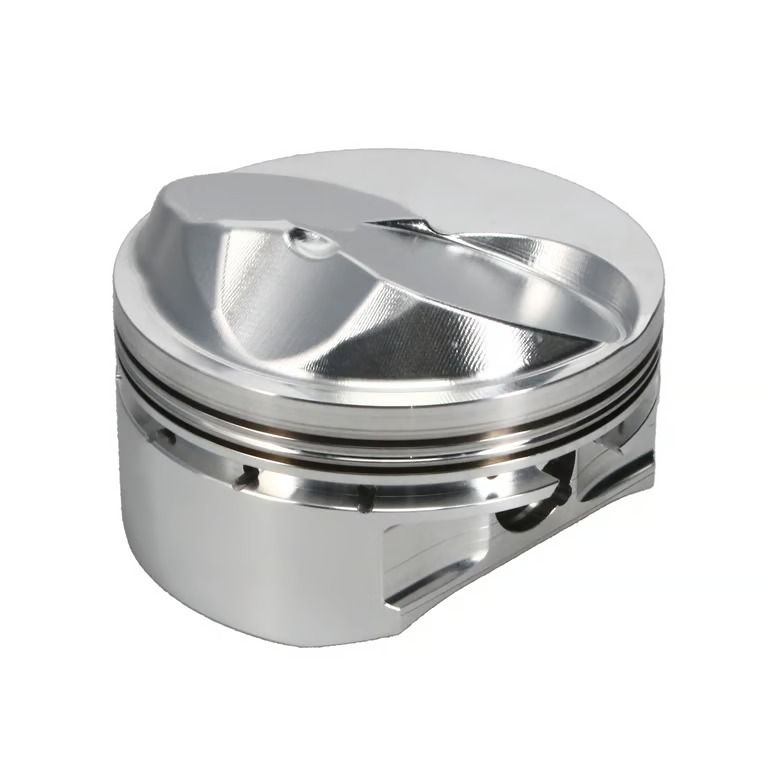

Chevrolet 396/454 24deg/26deg 4.320 Bore x 4.000 Stroke x 6.135 Rod x 1.645 Comp Height; H13 Upgraded Kit

Diamond?s Domestic line of pistons for Chevrolet, Ford, Chrysler, Pontiac, Oldsmobile, and Buick engines are focused on durability and performance. They are forged and machined 100% in the USA, utilize extremely strong 2618 aluminum and incorporate premium Trend Performance wrist pins. Each piston is purpose designed with the engine architecture in mind and covers popular bore sizes, strokes, and cylinder head configurations. Whether you?re building a big block, small block or something a little less common, Diamond has you covered! Don?t see the exact part you need in our catalog? No problem, we can custom make you a piston to your exact specifications.

Additional Attributes:

GTIN: 00193564381934
Add-On: 09024320
Add-On: H9902930185
Add-On: 015106-32
Bore Diameter: 4.320
Compression Height: 1.645
Compression Ratio: 11.90
EBAY Category ID: 33623
Engine – Web: Big Block
Engine Detail – Web: 396/454 24?/26?
Engine Type: ICE
Engine: Big Block
Industry: Automotive
Make: Chevrolet
Oil Rail Support Included: No
Oil Ring Thickness: 3/16
Piston Average Weight: 735
Piston Series: 24/26 Deg. Pro Dome
Piston Volume: 46.00
Product Market: Domestic
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Ring Set Part Number: 09024320
Ring Set Thickness: 1/16 IN x 1/16 IN x 3/16 IN
Rod Length: 6.135
Second Compression Ring Thickness: 1/16
Stroke: 4.000
Top Compression Ring Thickness: 1/16
VP Exhaust Depth: -0.130
VP Intake Depth: 0.320
Wrist Pin Dimensions: 0.990 x 2.930
Wrist Pin Included: Yes
Wrist Pin Length: 2.930
Wrist Pin Outside Diameter: 0.990
Wrist Pin Part Number: H9902930185
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 015106-32

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28.000 x 12.000 x 5.000 inches
Weight: 18.000 PG
