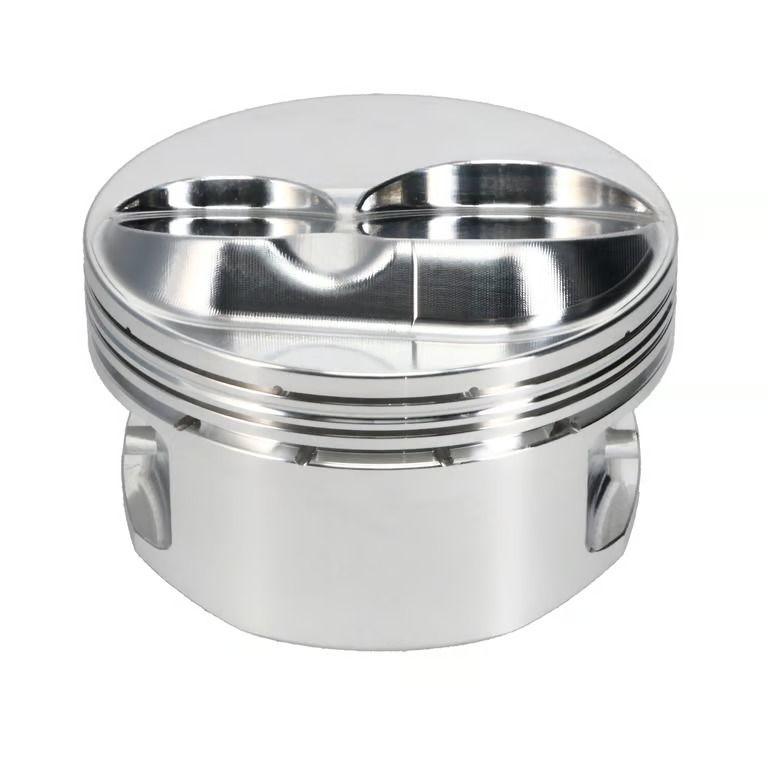

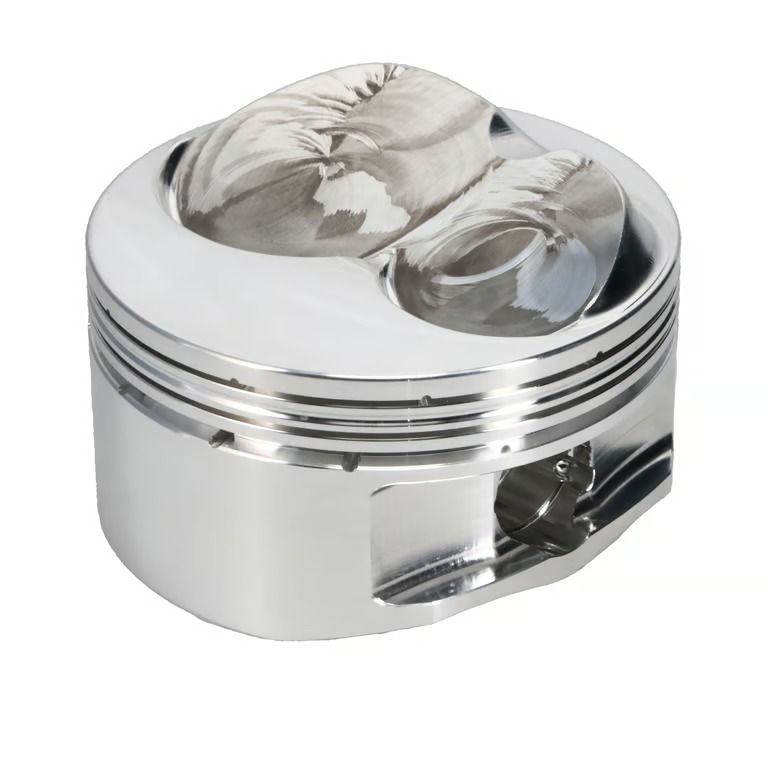

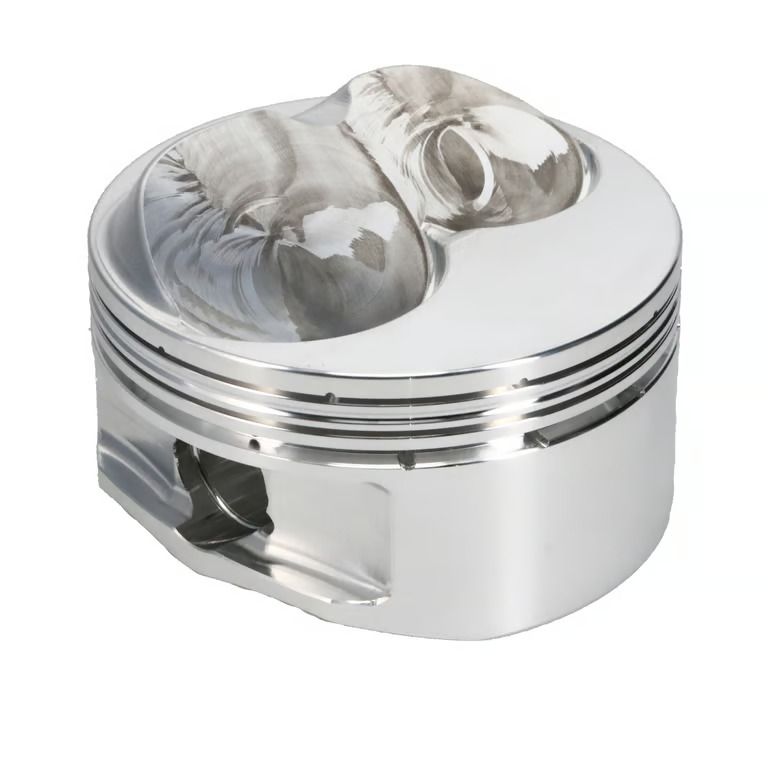

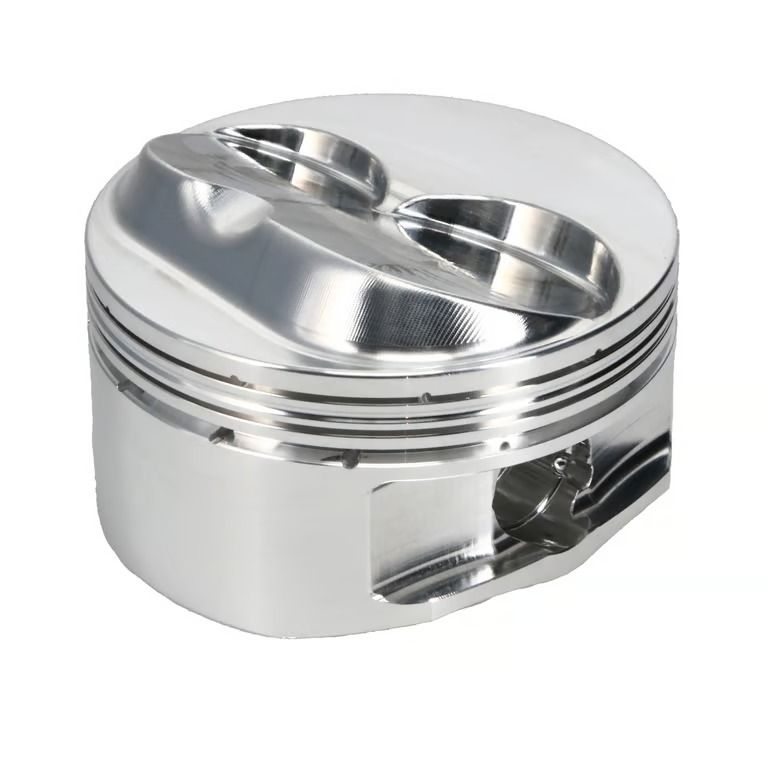

Chevrolet 350/400 23deg 4.145 Bore x 3.335 Stroke x 6.000 Rod x 1.335 Comp Height; H13 Upgraded Kit

Diamond?s Domestic line of pistons for Chevrolet, Ford, Chrysler, Pontiac, Oldsmobile, and Buick engines are focused on durability and performance. They are forged and machined 100% in the USA, utilize extremely strong 2618 aluminum and incorporate premium Trend Performance wrist pins. Each piston is purpose designed with the engine architecture in mind and covers popular bore sizes, strokes, and cylinder head configurations. Whether you?re building a big block, small block or something a little less common, Diamond has you covered! Don?t see the exact part you need in our catalog? No problem, we can custom make you a piston to your exact specifications.

Additional Attributes:

GTIN: 00193564379238
Add-On: 09224145
Add-On: H9272750185C
Add-On: 015111-16
Add-On: 019010120-8
Bore Diameter: 4.145
Compression Height: 1.335
Compression Ratio: 14.30
EBAY Category ID: 33623
Engine – Web: Small Block
Engine Detail – Web: 350/400 23?
Engine Type: ICE
Engine: Small Block
Industry: Automotive
Make: Chevrolet
Oil Rail Support Included: Yes
Oil Rail Support Part Number: 019010120-8
Oil Ring Thickness: 3.00
Piston Series: ASCS/USMTS
Piston Volume: 14.00
Product Market: Domestic
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Ring Set Part Number: 09224145
Ring Set Thickness: 0.043 IN x 0.043 IN x 3.00 MM
Rod Length: 6.000
Second Compression Ring Thickness: 0.43
Stroke: 3.335
Top Compression Ring Thickness: 0.43
VP Exhaust Depth: 0.220
VP Intake Depth: 0.320
Wrist Pin Dimensions: 0.927 x 2.750
Wrist Pin Included: Yes
Wrist Pin Length: 2.750
Wrist Pin Outside Diameter: 0.927
Wrist Pin Part Number: H9272750185C
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 015111-16

Extended Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28.000 x 12.000 x 5.000 inches
Weight: 18.000 PG
