Chevrolet 350/400 23deg 4.060 Bore x 3.000 Stroke x 5.700 Rod x 1.790 Comp Height; Std Kit
Chevrolet 350/400 23deg 4.060 Bore x 3.000 Stroke x 5.700 Rod x 1.790 Comp Height; Std Kit
Chevrolet 350/400 23deg 4.060 Bore x 3.000 Stroke x 5.700 Rod x 1.790 Comp Height; Std Kit
Chevrolet 350/400 23deg 4.060 Bore x 3.000 Stroke x 5.700 Rod x 1.790 Comp Height; Std Kit

Chevrolet 350/400 23deg 4.060 Bore x 3.000 Stroke x 5.700 Rod x 1.790 Comp Height; Std Kit

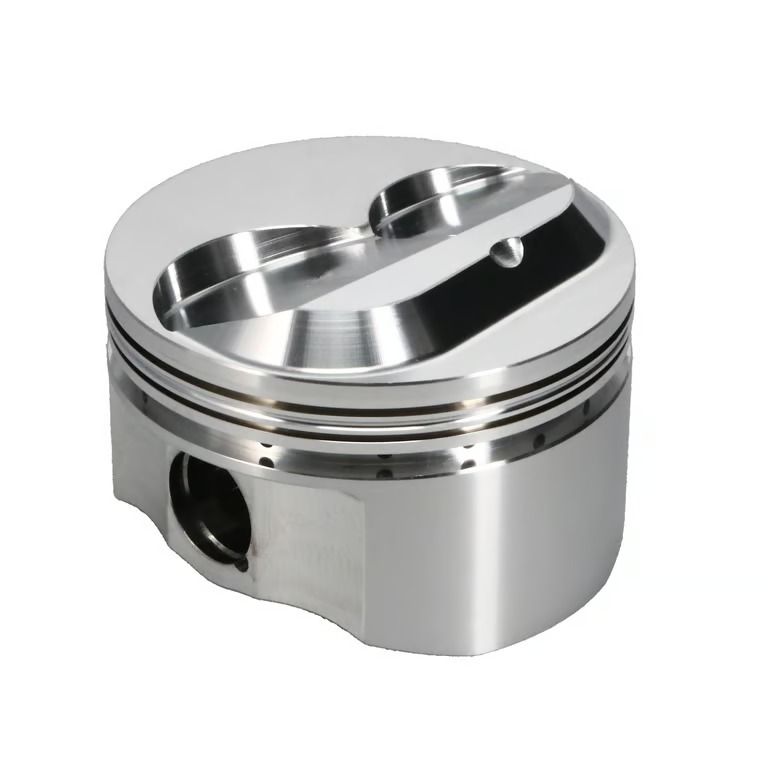

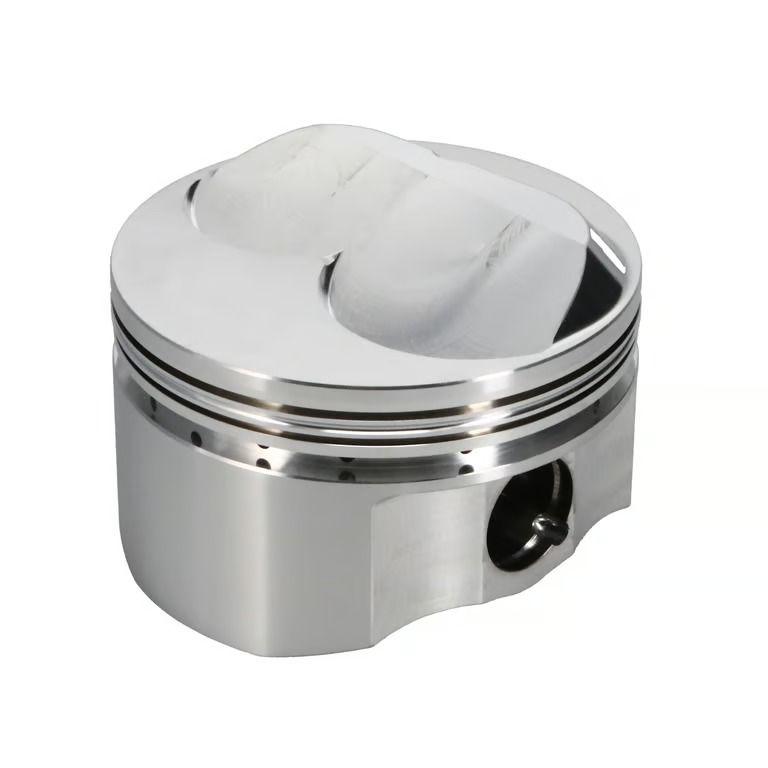

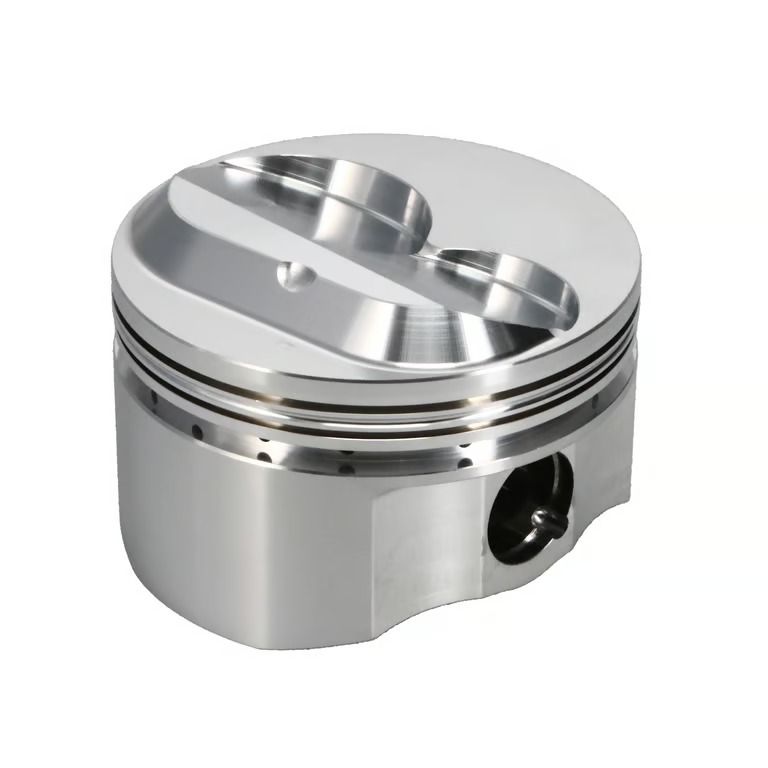

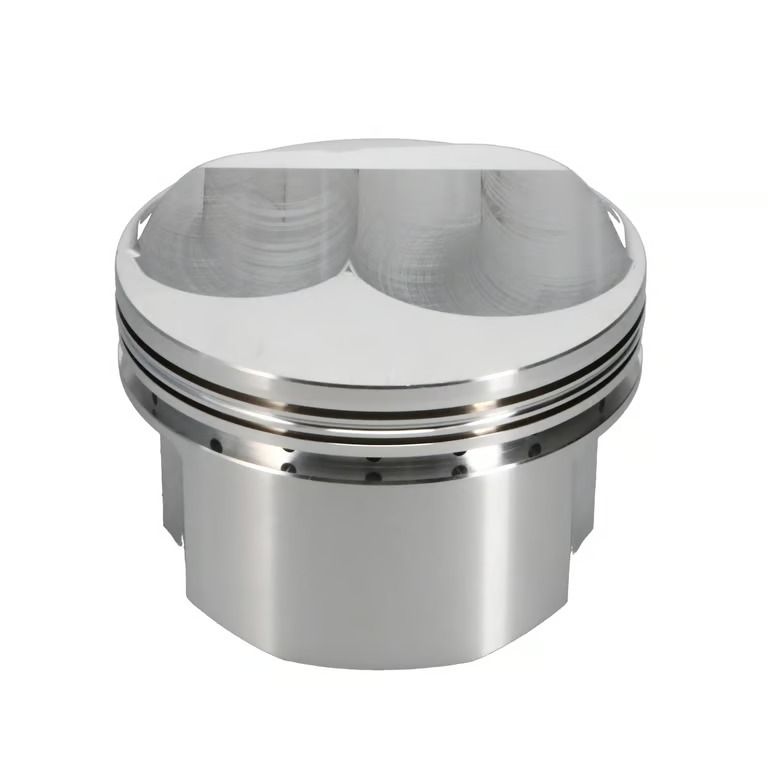

4.060 in. Bore – 9.00 CC Volume – 1.790 in. Comp Height – Standard Pin

    • 3D milling on piston crowns for ready to install finish
    • Designed to work with most aftermarket 23? cylinder heads
    • Top ring down dimension: .170″-.210″
    • Ratios figured for .040 head gasket @ 9.000 Deck
    • Standard ring package 1/16 x 1/16 x 3/16 ring package
    • Premium 8620 .155W wrist pins included
    • Valve pocket depth: 0.293″ intake and .202″ exhaust
    • Will work with up to a intake valve size of 2.080″ and exhaust valve size of 1.600″
    • Made from 2618 alloy and designed for applications up to 750hp
SKU BJBX-11632-8 Category

$ 2,081.15

Diamond?s Domestic line of pistons for Chevrolet, Ford, Chrysler, Pontiac, Oldsmobile, and Buick engines are focused on durability and performance. They are forged and machined 100% in the USA, utilize extremely strong 2618 aluminum and incorporate premium Trend Performance wrist pins. Each piston is purpose designed with the engine architecture in mind and covers popular bore sizes, strokes, and cylinder head configurations. Whether you?re building a big block, small block or something a little less common, Diamond has you covered! Don?t see the exact part you need in our catalog? No problem, we can custom make you a piston to your exact specifications.

Additional Attributes:

GTIN: 00193564375186
Add-On: 09024060
Add-On: G9272950155
Add-On: 015103-16
Bore Diameter: 4.060
Compression Height: 1.790
Compression Ratio: 10.50
EBAY Category ID: 33621
Engine – Web: Small Block
Engine Detail – Web: 350/400 23?
Engine Type: ICE
Engine: Small Block
Industry: Automotive
Make: Chevrolet
Oil Rail Support Included: No
Oil Ring Thickness: 3/16
Piston Series: Street/Strip
Piston Volume: 9.00
Product Market: Domestic
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Ring Set Part Number: 09024060
Ring Set Thickness: 1/16 IN x 1/16 IN x 3/16 IN
Rod Length: 5.700
Second Compression Ring Thickness: 1/16
Stroke: 3.000
Top Compression Ring Thickness: 1/16
VP Exhaust Depth: 0.202
VP Intake Depth: 0.293
Wrist Pin Dimensions: 0.927 x 2.950
Wrist Pin Included: Yes
Wrist Pin Length: 2.950
Wrist Pin Outside Diameter: 0.927
Wrist Pin Part Number: G9272950155
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 015103-16

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28.000 x 12.000 x 5.000 inches
Weight: 18.000 PG

Information complémentaire

Poids8.16 kg
Dimensions28.000 × 12.000 × 5.000 cm
