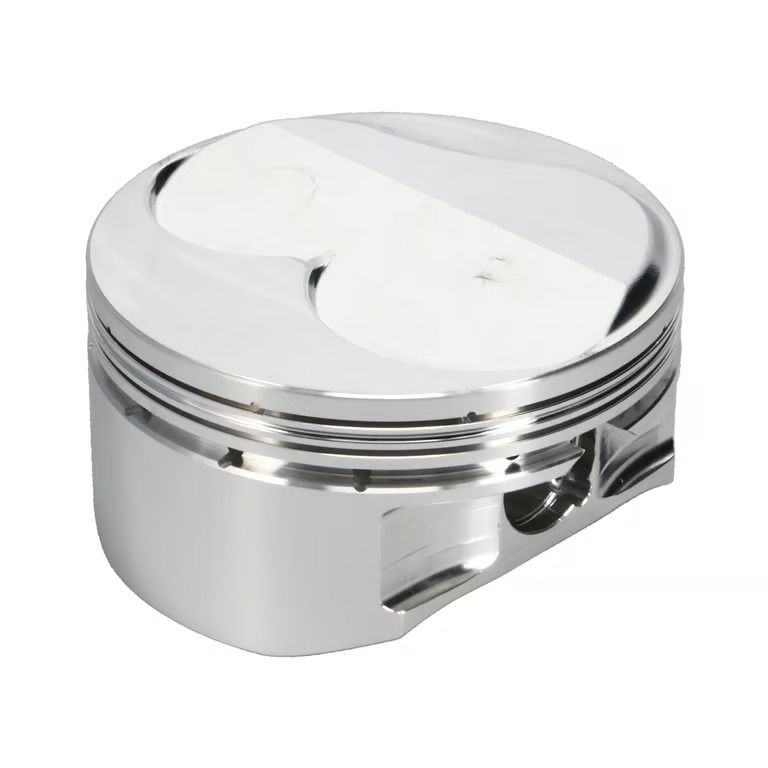

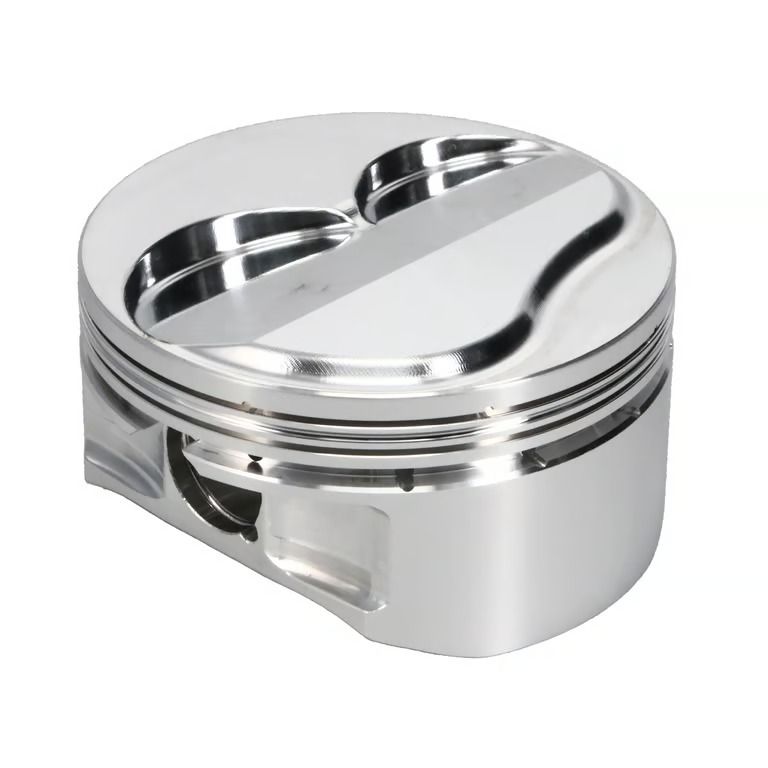

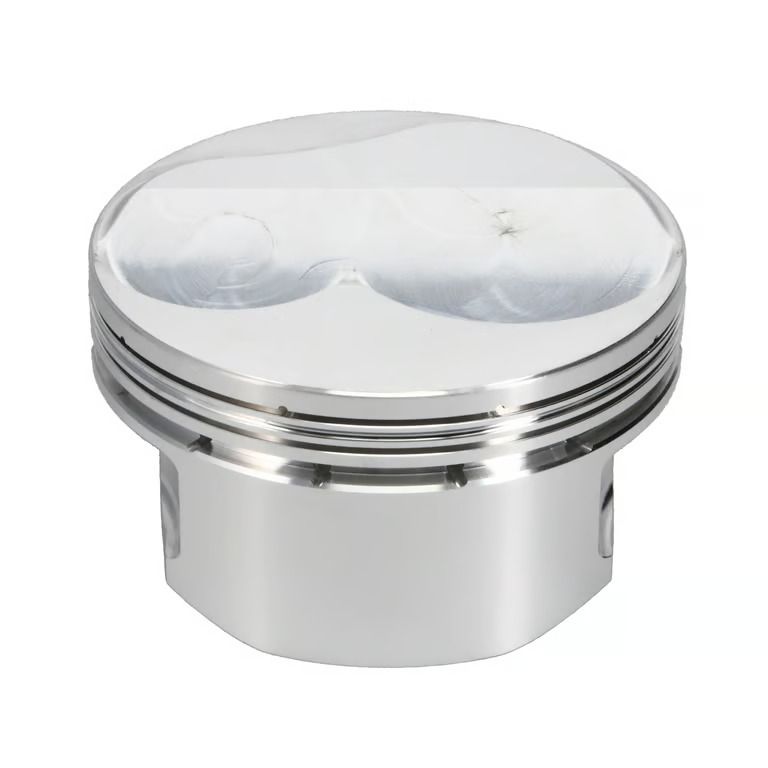

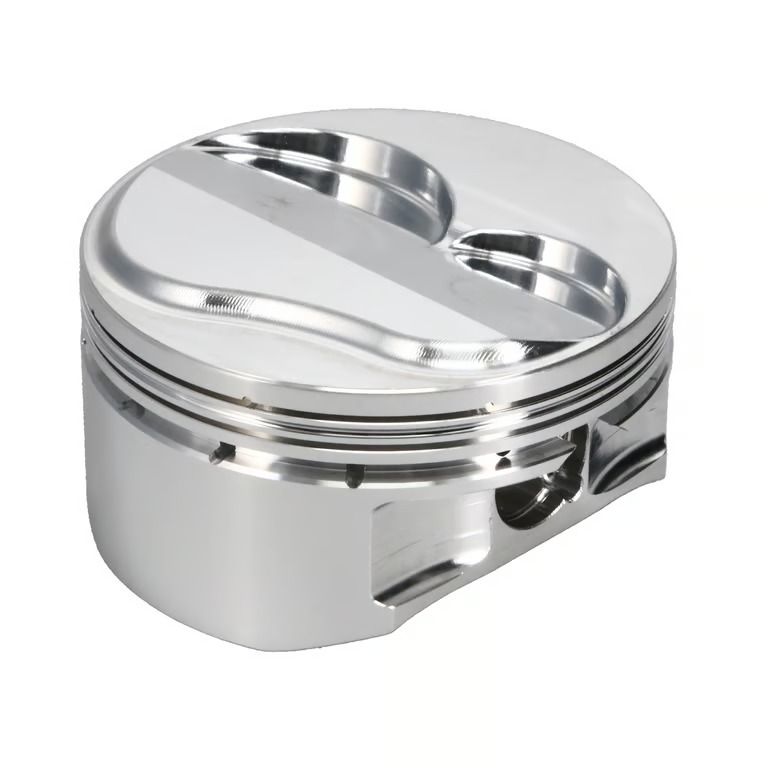

Chevrolet 350/400 15deg 4.145 Bore x 4.000 Stroke x 6.000 Rod x 1.000 Comp Height; Std Kit

Diamond?s Domestic line of pistons for Chevrolet, Ford, Chrysler, Pontiac, Oldsmobile, and Buick engines are focused on durability and performance. They are forged and machined 100% in the USA, utilize extremely strong 2618 aluminum and incorporate premium Trend Performance wrist pins. Each piston is purpose designed with the engine architecture in mind and covers popular bore sizes, strokes, and cylinder head configurations. Whether you?re building a big block, small block or something a little less common, Diamond has you covered! Don?t see the exact part you need in our catalog? No problem, we can custom make you a piston to your exact specifications.

Additional Attributes:

GTIN: 00193564378293
Add-On: 09224155
Add-On: G9272750155C
Add-On: 015111-16
Add-On: 019010155-8
Bore Diameter: 4.155
Compression Height: 1.000
Compression Ratio: 14.00
EBAY Category ID: 33621
Engine – Web: Small Block
Engine Detail – Web: 350/400 15?
Engine Type: ICE
Engine: Small Block
Industry: Automotive
Make – Web: Chevrolet
Make: Chevrolet
Oil Rail Support Included: Yes
Oil Rail Support Part Number: 019010155-8
Oil Ring Thickness: 3.00
Piston Average Weight: 455
Piston Series: 350/400 15?
Piston Volume: 2.00
Product Market: Domestic
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: Yes
Ring Set Part Number: 09224155
Ring Set Thickness: 0.043 IN x 0.043 IN x 3.00 MM
Rod Length: 6.000
Second Compression Ring Thickness: 0.43
Stroke: 4.000
Top Compression Ring Thickness: 0.43
VP Exhaust Depth: 0.217
VP Intake Depth: 0.267
Wrist Pin Dimensions: 0.927 x 2.750
Wrist Pin Included: Yes
Wrist Pin Length: 2.750
Wrist Pin Outside Diameter: 0.927
Wrist Pin Part Number: G9272750155C
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 015111-16

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28.000 x 12.000 x 5.000 inches
Weight: 18.000 PG
