Carburetor

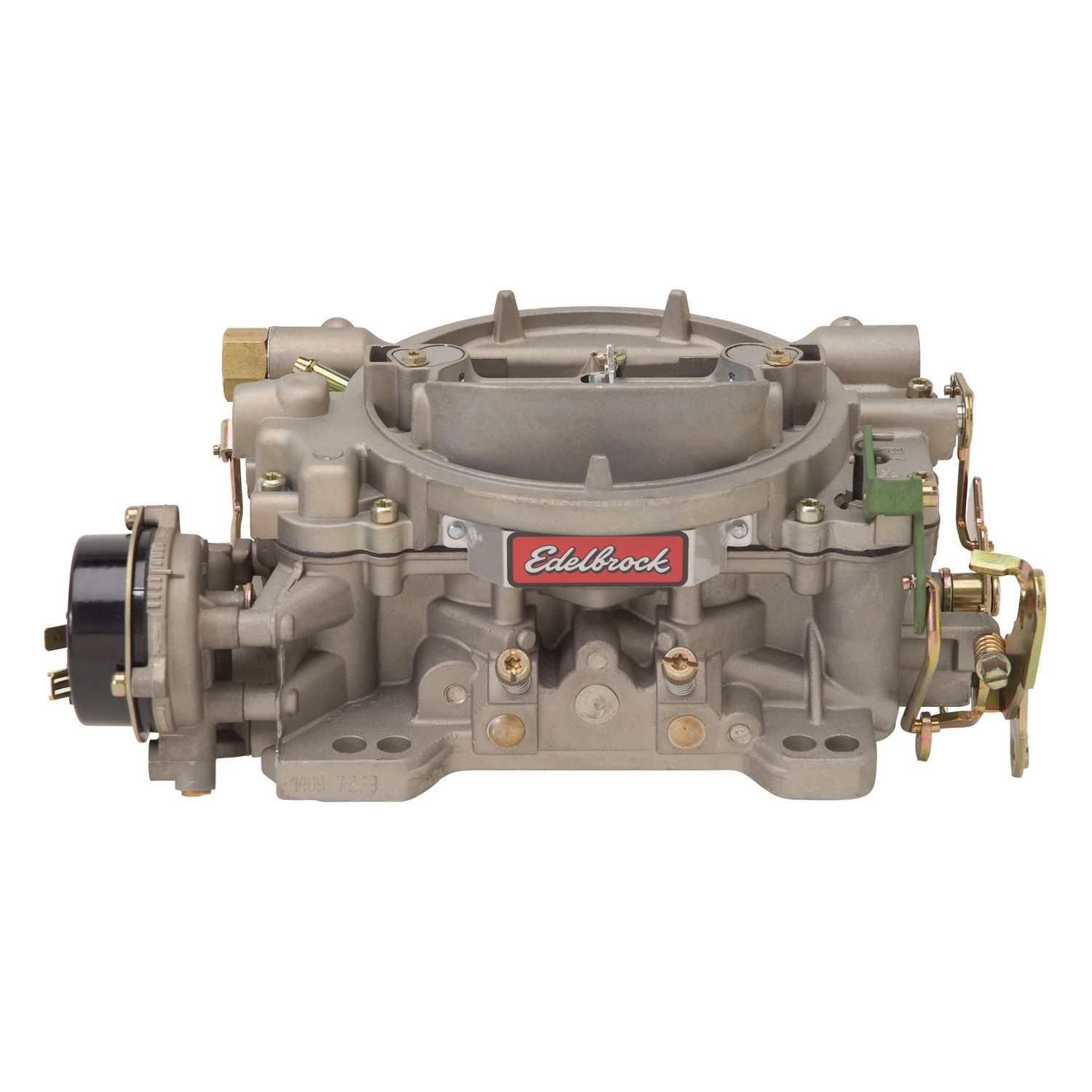

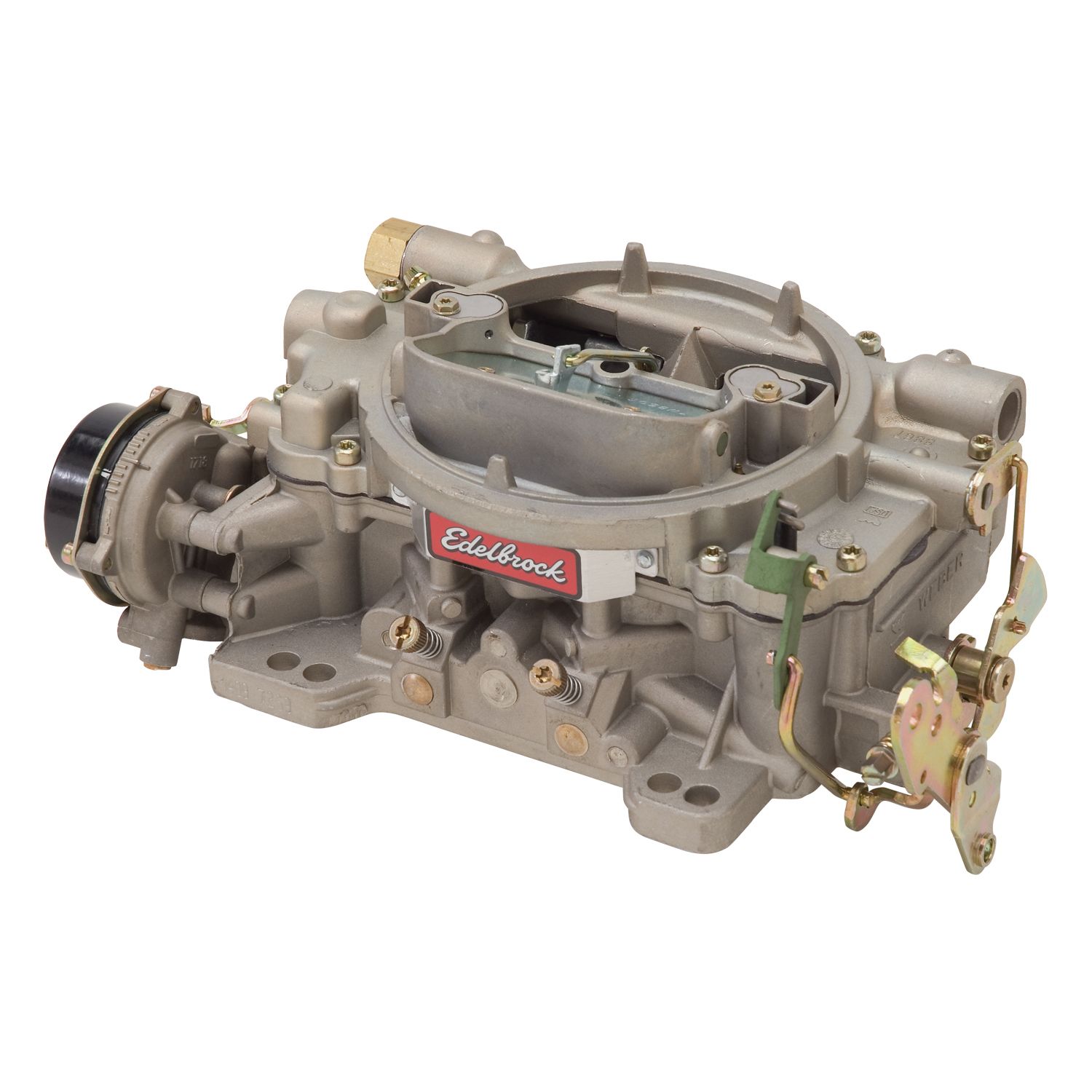

The Edelbrock 9909 Remanufactured Marine Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 9909 Remanufactured Marine Series 600 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for trouble-free operation.

Additional Attributes:

GTIN: 00085347099092
Adjustable Float Level: No
Air Cleaner Flange Diameter: 5.125
Barrel Quantity: 4
Base Length: 6.25
Base Width: 5.937
Body Color: Zinc-Dichromate
Body Height: 3.25
Body Material: Aluminum
Center Hung Floats: No
Choke Type: Electric
EGR Port: No
Flange Shape: Square Bore
Float Drop: 1.0
Float Level: 0.437
Float Material: Brass
Gasket Or Seal Included: Yes
Grade Type: Performance
Inlet Fitting Thread Diameter: 0.625
Linkage Attached: No
Main Venturi Diameter: 1.190
Marine Approved: Yes
Maximum Flow Rating: 600
Metering Rod Length: 3.15
Metering Rod Power Tip Diameter: 0.047
Mounting Hardware Included: No
Mounting Hole Diameter: 0.355
Mounting Hole Quantity: 8
Primary Jet Diameter: 0.098
RGL: WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Secondary Jet Diameter: 0.101
Small Venturi Diameter: 1.560
Spacer Included: No
Street Legal: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 13.25 x 7.375 x 6.75 inches
Weight: 9.15 PG
