Carburetor

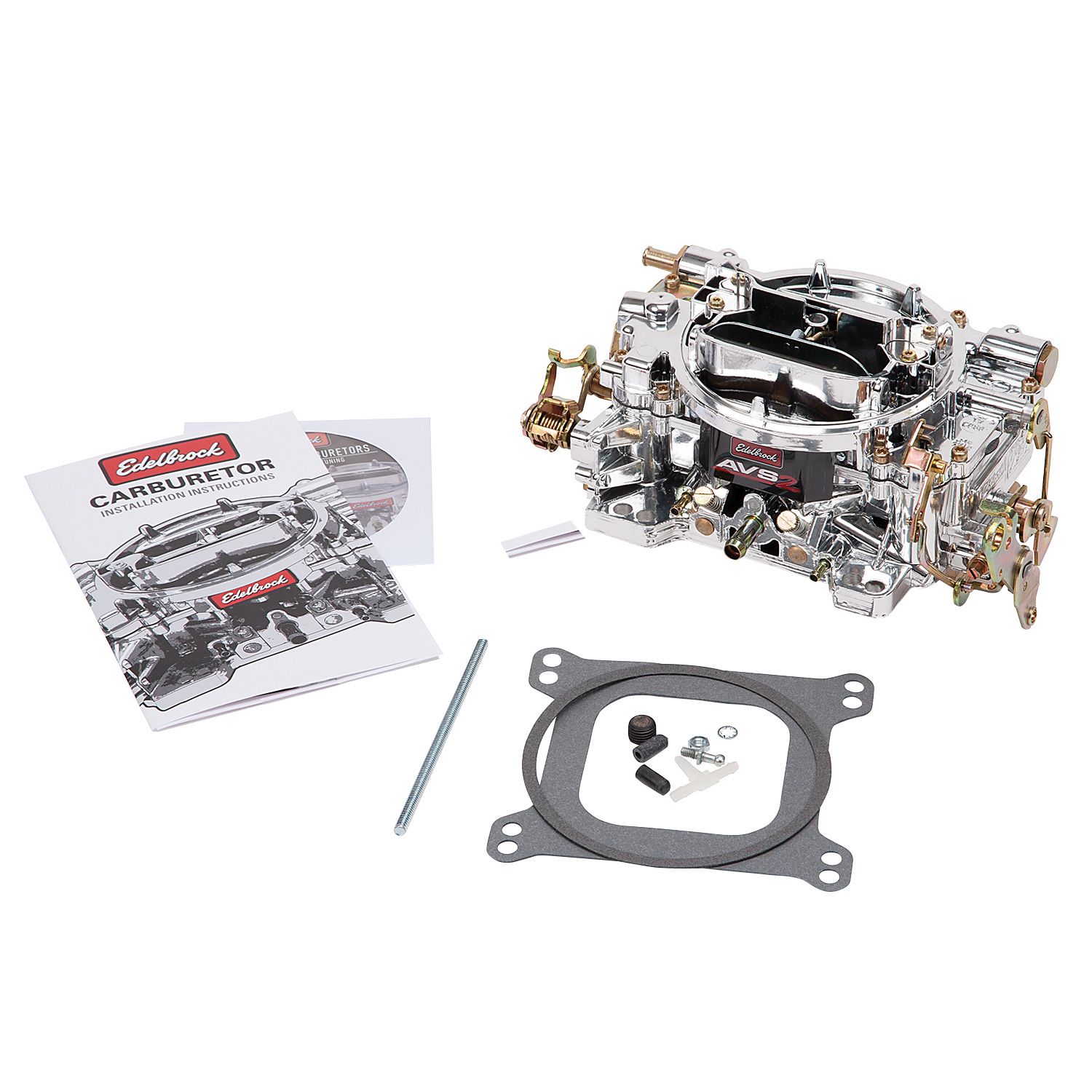

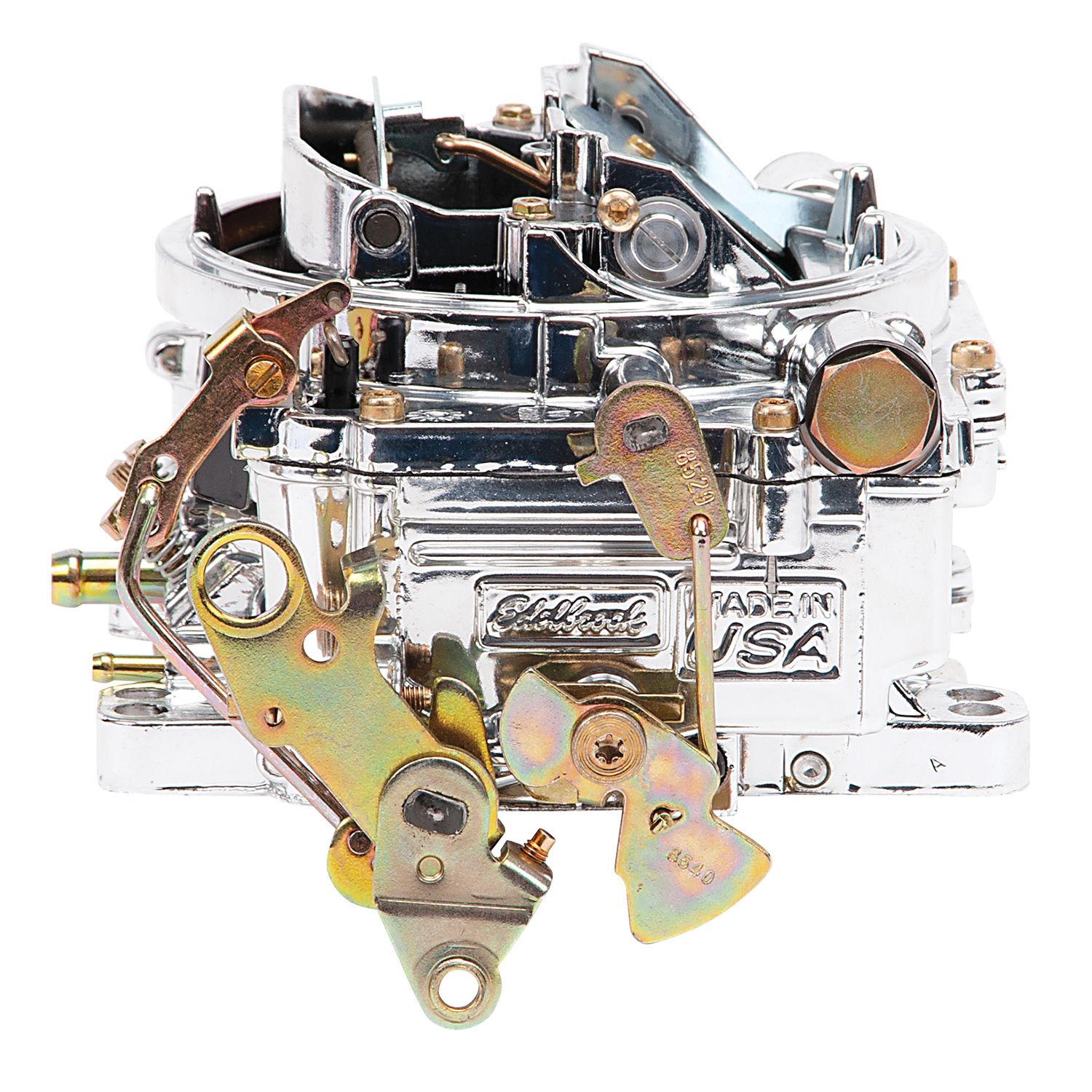

The Edelbrock #19024 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #19024 is calibrated for single-quad applications and factory equipped with: Metering Jets – Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Additional Attributes:

GTIN: 00085347190249
Barrel Quantity: 4 Barrel
Body Height: 3.25
Booster Type: annular
Bore Diameter: Primary Bore 1.44; Secondary Bore 1.6875
Choke Type: Manual
Condition: New
EGR Port: No
Finish: EnduraShine
Flange Shape: Square
Gasket Or Seal Included: Yes
Main Venturi Diameter: 1.19
Material: Aluminum
Maximum Flow Rating: 500
Metering Rod Size: .070 x .052
Primary Jet Diameter: 0.095
Recommended Use: For Single Carb Applications
RGL: WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Secondary Jet Diameter: 0.095
Series: AVS2
Spring Force: 5″ Hg (Orange)

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 13.3125 x 7.375 x 6.625 inches
Weight: 10.95 PG
