Carburetor

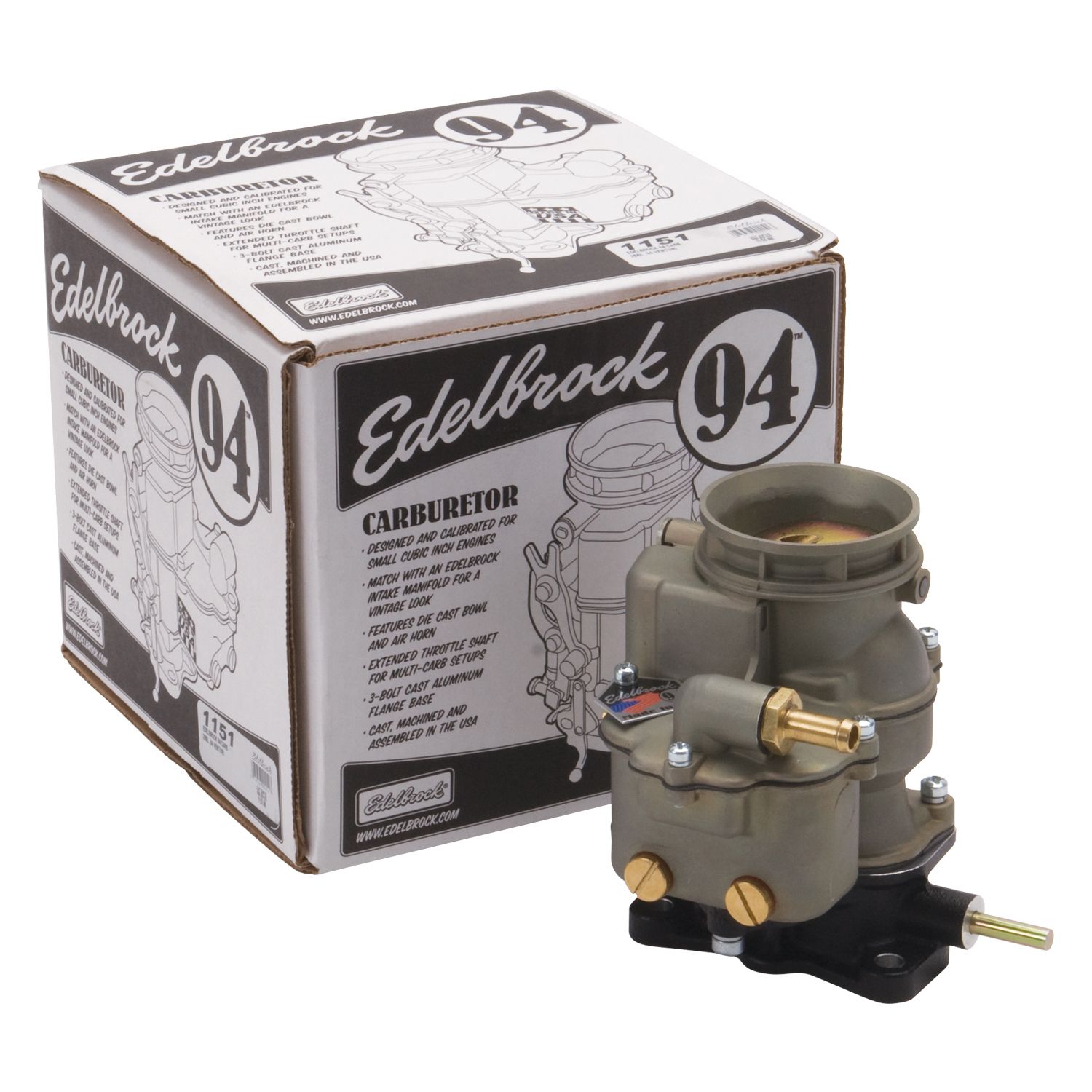

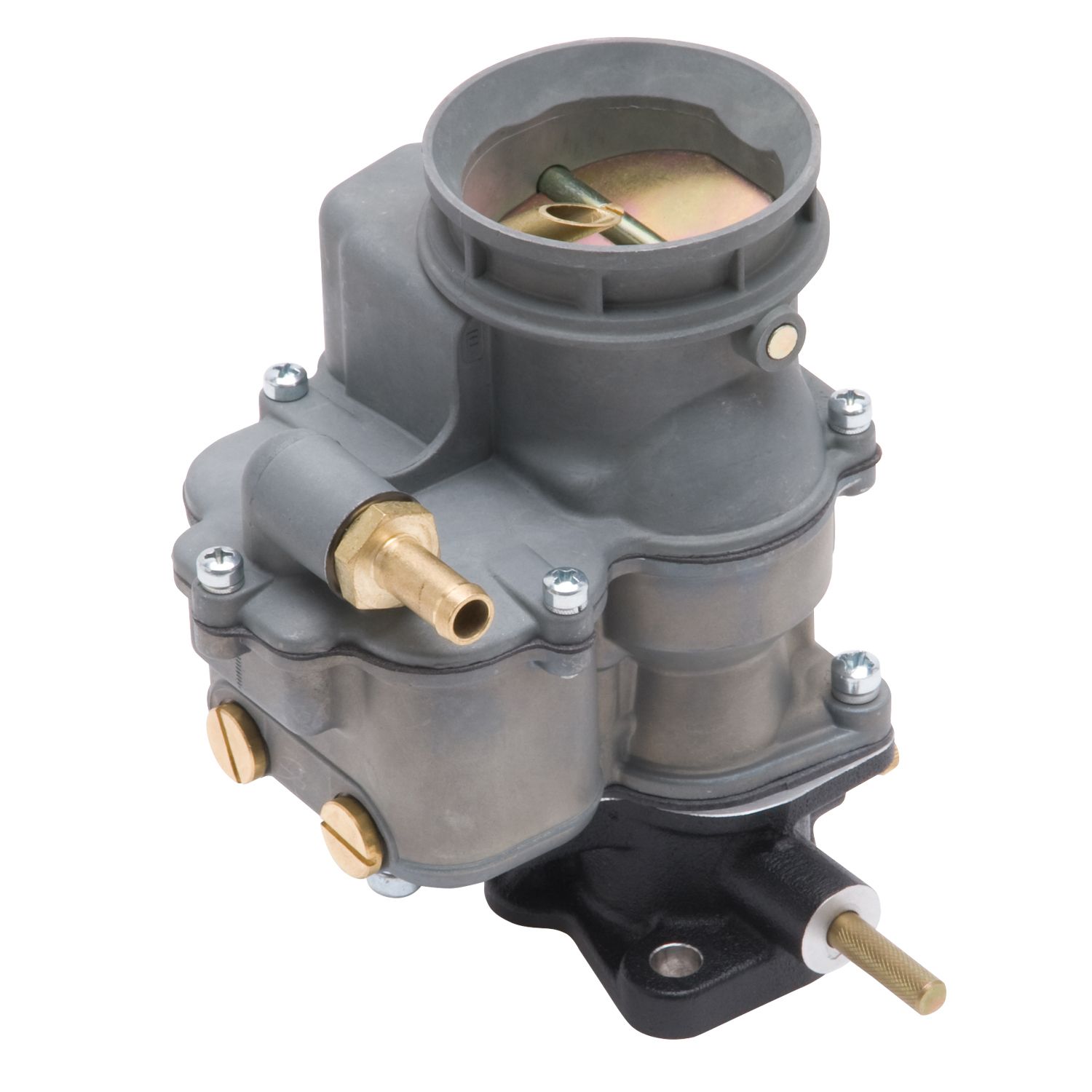

Built around Edelbrock's reputation of bolt-on performance carburetors, the Edelbrock 1151 Vintage 94 series two-barrel 160 CFM primary carburetor provides nostalgic and period correct hot rods and restorations with the most accurate and best performing carburetor on the market. The Edelbrock 1151 vintage 94 series two-barrel 160 CFM primary carburetor features a die-cast bowl and air horn with an aluminum 3-bolt base. In addition, the throttle shafts have been knurled & extended to prevent the linkage arm from slipping and to make it easier to install dual and triple carburetor combinations, especially when used with Edelbrock's exclusive progressive linkage. Extensive testing, both on the road and in our state-of-the-art engine dynamometer facility has allowed Edelbrock to offer a power valve and jetting combination that delivers a wide calibration band for smooth and strong performance in various applications.

Additional Attributes:

GTIN: 00085347011513
Adjustable Float Level: No
Air Cleaner Flange Diameter: 2.625
Barrel Quantity: 2
Base Length: 2.6
Base Width: 3.9
Body Height: 5.8
Body Material: Aluminum
Center Hung Floats: Yes
Choke Type: Manual
Finish: Zinc-Dichromate
Float Level: 1.406
Float Material: Brass
Gasket Or Seal Included: Yes
Grade Type: Performance
Inlet Fitting Thread Diameter: 0.5
Linkage Attached: No
Marine Approved: No
Maximum Flow Rating: 160
Mounting Hardware Included: No
Mounting Hole Diameter: 0.345
Mounting Hole Quantity: 3
Primary Jet Diameter: 0.053
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Spacer Included: No
Street Legal: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 7 x 7.5 x 6.75 inches
Weight: 4.5 PG
