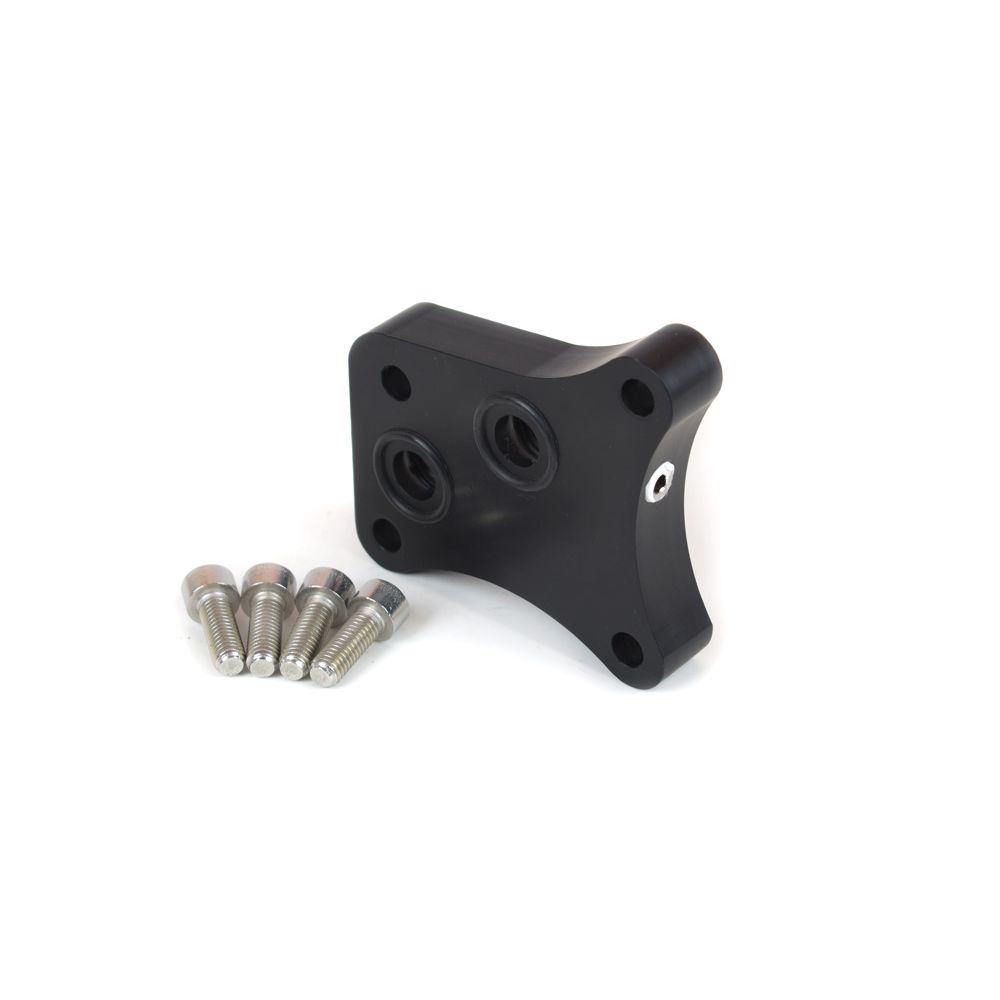

Canton 22-576 Billet Aluminum Remote Oil Filter Adapter For Nissan SR20

This billet aluminum replaces the heave cast spin-on filter plate on the Nissan Sr20 engines. This adapter features two 1/2" NPT ports to allow the plumbing of external lines to your remote filter while an additional 1/8" NPT port can be used for a oil temperature or oil pressure sensor. O-ring seals provide a leak free installation and eliminate the need for a gasket. This adapter also makes possible the installation of Accusump oil accumulators, oil coolers and other oiling accessories. Mounting hardware is included.

Additional Attributes:

GTIN: 00887753715906
Engine: Nissan Sr20
Feature 1: 1/2 NPT Inlet and Outlet
Feature 2: 1/8 NPT Pressure Sensor Port
Feature 3: O-Ring Ports
Feature 4: Socket Head Hardware Included
Feature 5: Lightweight Billet Design
Finish: Black ANodize
Material: Billet Aluminum

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22.5 x 8 x 0.75 inches
Weight: 0.8 PG

PDF:

22-576 Instruction
