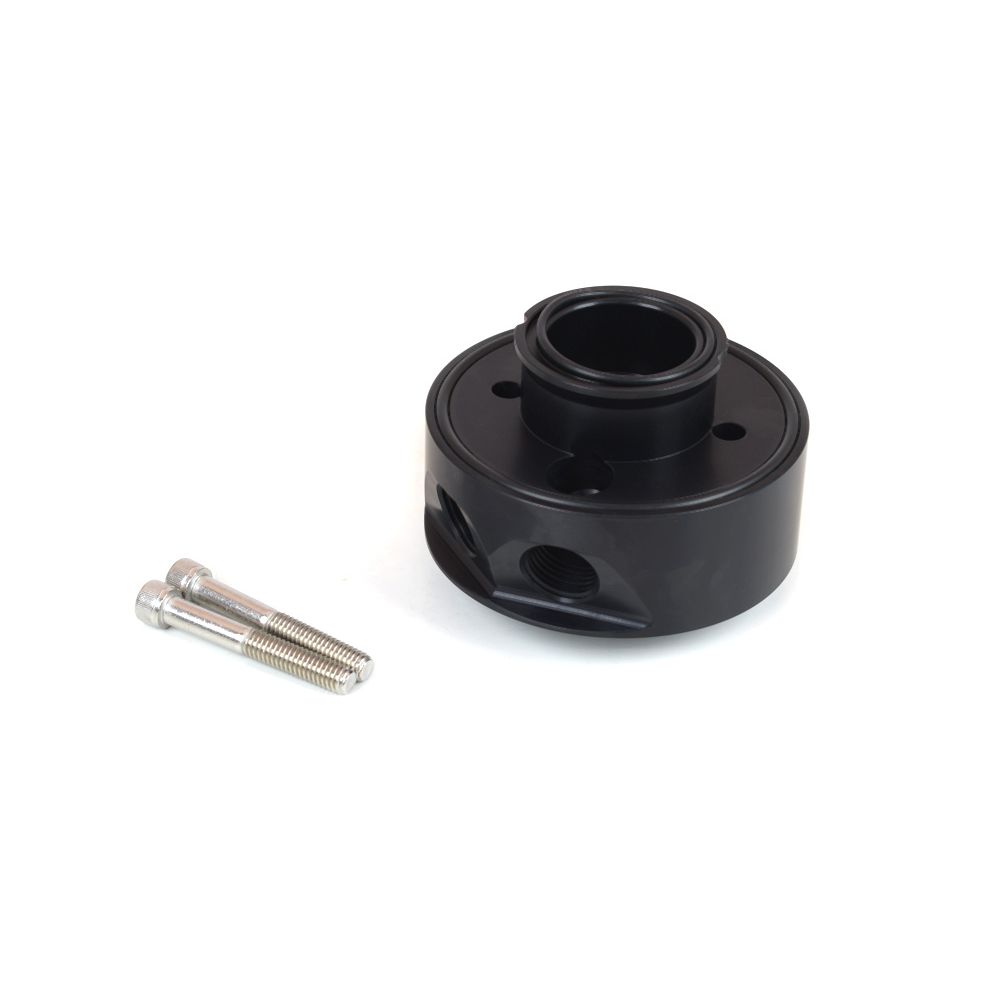

Canton 22-540 Aluminum Oil Cooler Adapter Sandwich Style For Small Block Chevy

This Chevy SBC Remote Oil Cooler Sandwich Adapter goes to cooler before filtration. It provides an in and out port for installing an oil cooler. It mounts between the oil filter and block, replacing the stock bypass and bolting into the mounting holes left after the bypass is removed. The filter is lowered only 1-1/2". Oil ports are 1/2" N.P.T. Comes complete with O-Rings and hardware.

Additional Attributes:

GTIN: 00887753715746
Feature 1: 1/2″ NPT Inlet Port
Feature 2: 1/2″ NPT Outlet Port
Feature 3: Bolts Into Stock Bypass Mounting Holes
Feature 4: Machined Billet Aluminum
Feature 5: Hardware Included
Feature 6: Goes to cooler before filtration
Recommended Accessory 1: 98-002 – Replacement O-Ring Kit
Recommended Accessory 2: 23-245 – 1/2″ NPT to -10 AN Steel Fitting
Recommended Accessory 3: 23-246 – 1/2″ NPT to -12 AN Steel Fitting
Recommended Accessory 4: 23-243A – 1/2″ NPT to -6 AN Aluminum Fitting
Recommended Accessory 5: 23-244A – 1/2″ NPT to -8 AN Aluminum Fitting
Recommended Accessory 6: 23-245A – 1/2″ NPT to -10 AN Aluminum Fitting
Recommended Accessory 7: 23-246A – 1/2″ NPT to -12 AN Aluminum Fitting
Recommended Accessory 8: 23-345A – 90 degree 1/2″ NPT to -10 AN

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5.75 x 4.5 x 4.5 inches
Weight: 1.9 PG
