Canton 18-944 Cummins 5.9L Truck/Marine High Capacity Oil Pan

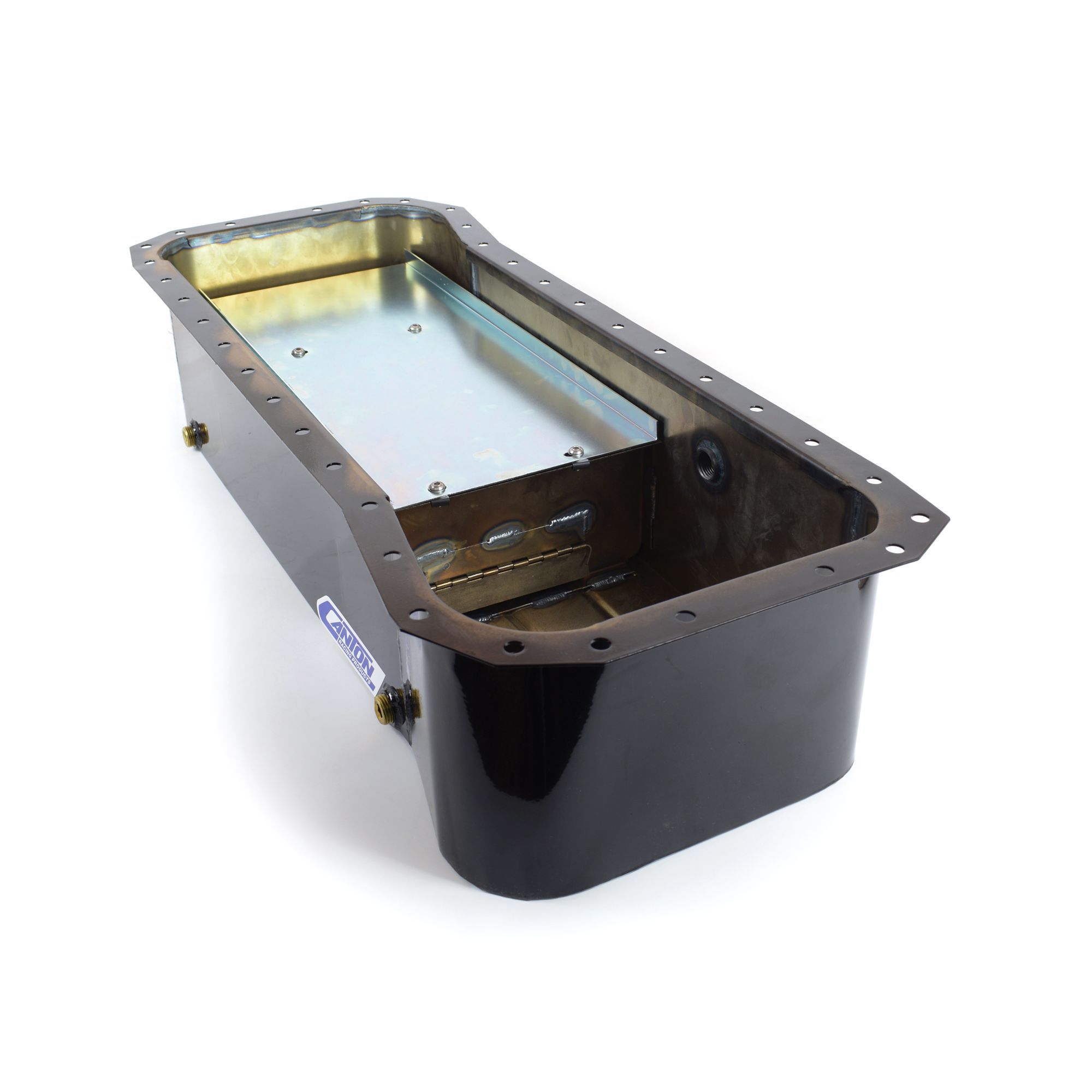

This 5.9 Cummins high capacity oil pan is a multi-application oil pan for Truck/Marine/Industrial/Open Chassis that require a larger capacity than the stock 5.9 oil pan. This oil pan is 7" deep, 10" wide at the center, and 30-1/4" long and has a oil capacity of 20qts. This oil pan features a symmetrical bolt pattern which allows for front and rear pickup mounting. It includes double trap door baffles and slosh tray for superior oil control. 1/2" NPT turbo drain backs are on both sides of the oil pan as well as 1/2" NPT drain bungs at all four corners. The oil pan also includes a 1/4" NPT provision for a Canton dipstick. The finish of the pan is black powdercoat and built from 14 gauge steel for long lasting durability. Pickups required for this oil pan are 18-945 for front sump applications and 18-946 for rear sump applications.

Additional Attributes:

GTIN: 00887753841414
Surface Finish: Black Powdercoat

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 36 x 14 x 10 inches
Weight: 25 PG

PDF:

Pan Install – Standard Part B
