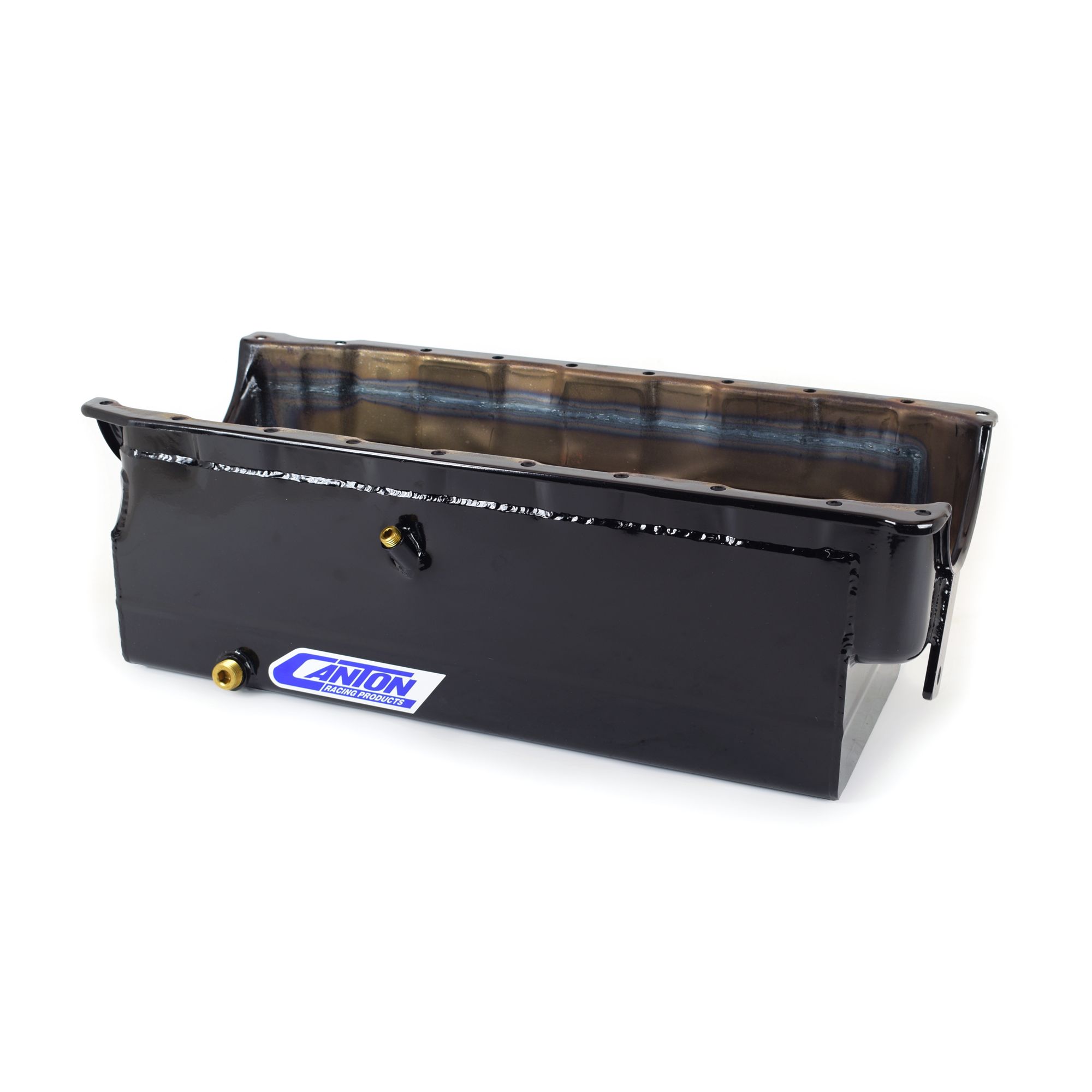

Canton 18-302 Oil Pan Big Block Chevy Mark 5 Gen 6 Full Length Sump Marine Pan

This BBC High Capacity Marine Pan for Mark V Big Blocks with one piece rear seal. With a deep 8" full length sump it holds 9 quarts of oil for greater oil capacity. Designed for applications with the pickup at the flywheel end of the engine. This pan requires our 18-301 pickup.

Additional Attributes:

GTIN: 00887753714336
Baffled: Yes
Capacity: 9 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 14 ga. Steel Construction
Feature 2: Double Trap Door Baffles

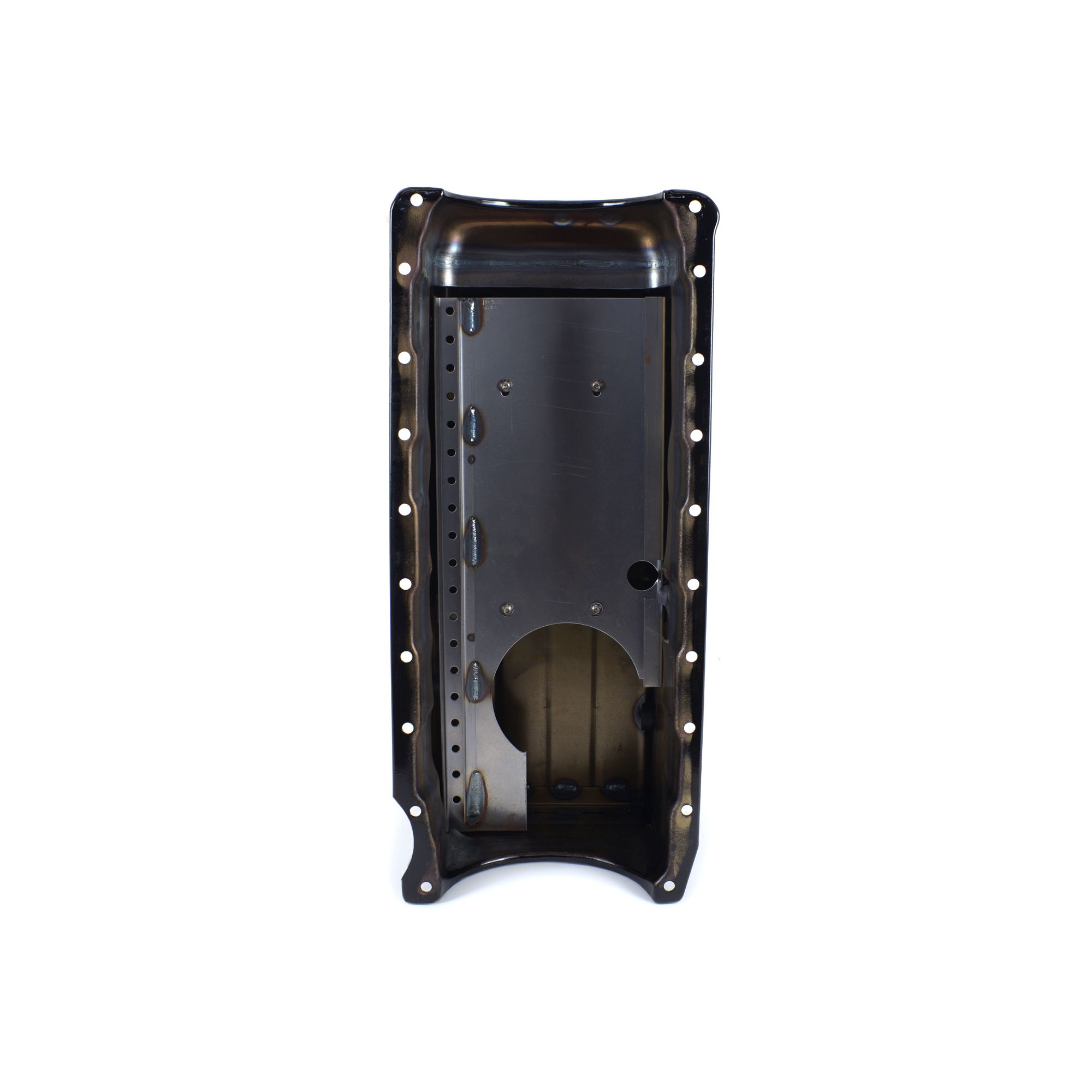

Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 4: 1/2″ NPT Drain Fittings
Feature 5: Provision For our Pan Mounted Dipstick
Feature 6: Powder Coating & Brass Plugs For Corrosion Protection
Finish: Black Gloss Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 14 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 18-301 – Our Stock Replacement Pickup
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Stoke: 4.5 inches
Sump Depth: 8 inches
Windage Tray Included: No

Extended Information:

Emissions : 1
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 20 PG

PDF:

Pan Install – Standard Part B
