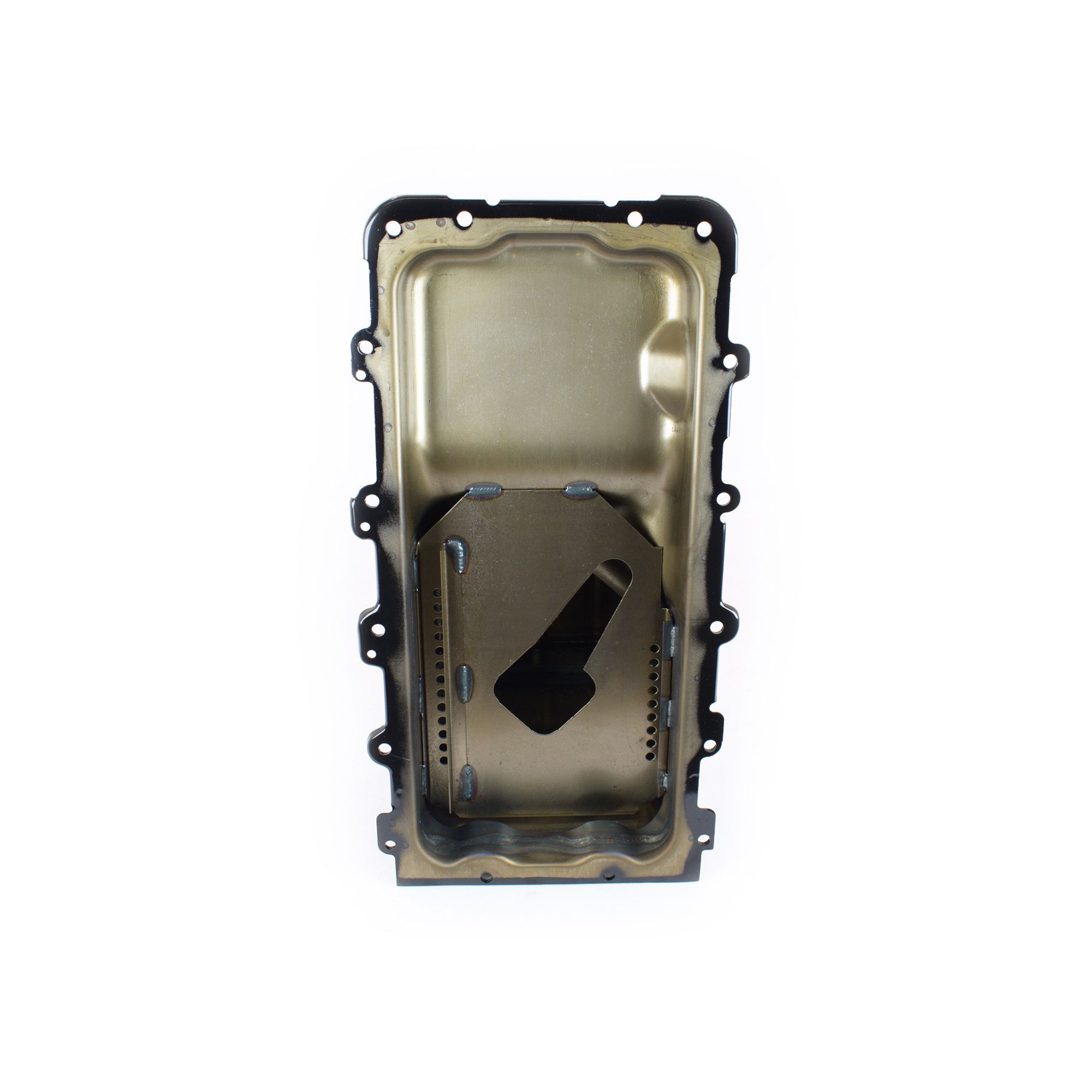

Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black

This Ford 4.6L/5.4L oil pan is 8-1/4" deep by 10" long by 8" wide rear sump. The oil pan holds 7 quarts for increased oil capacity and oil control. For use in Ford Two & Four wheel drive trucks. Designed for improved cross member clearance in 2WD trucks. This pan requires our 16-781 pickup made for 2V engines.

Additional Attributes:

GTIN: 00887753714244
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Slosh Baffle
Feature 3: Magnetic Drain Plug
Finish: Black Gloss Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 14 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 16-781 – Pickup Made for 2 Valve Engines
Recommended Accessory 2: 20-939 – Ford 4.6L/5.4L Screen Windage Tray
Recommended Accessory 3: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
Stoke: 106MM
Sump Depth: 8.25 inches
Sump Width: 8 inches
Windage Tray Included: No

Extended Information:

Emissions : 1
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 14 PG

PDF:

Pan Install – Standard Part B
