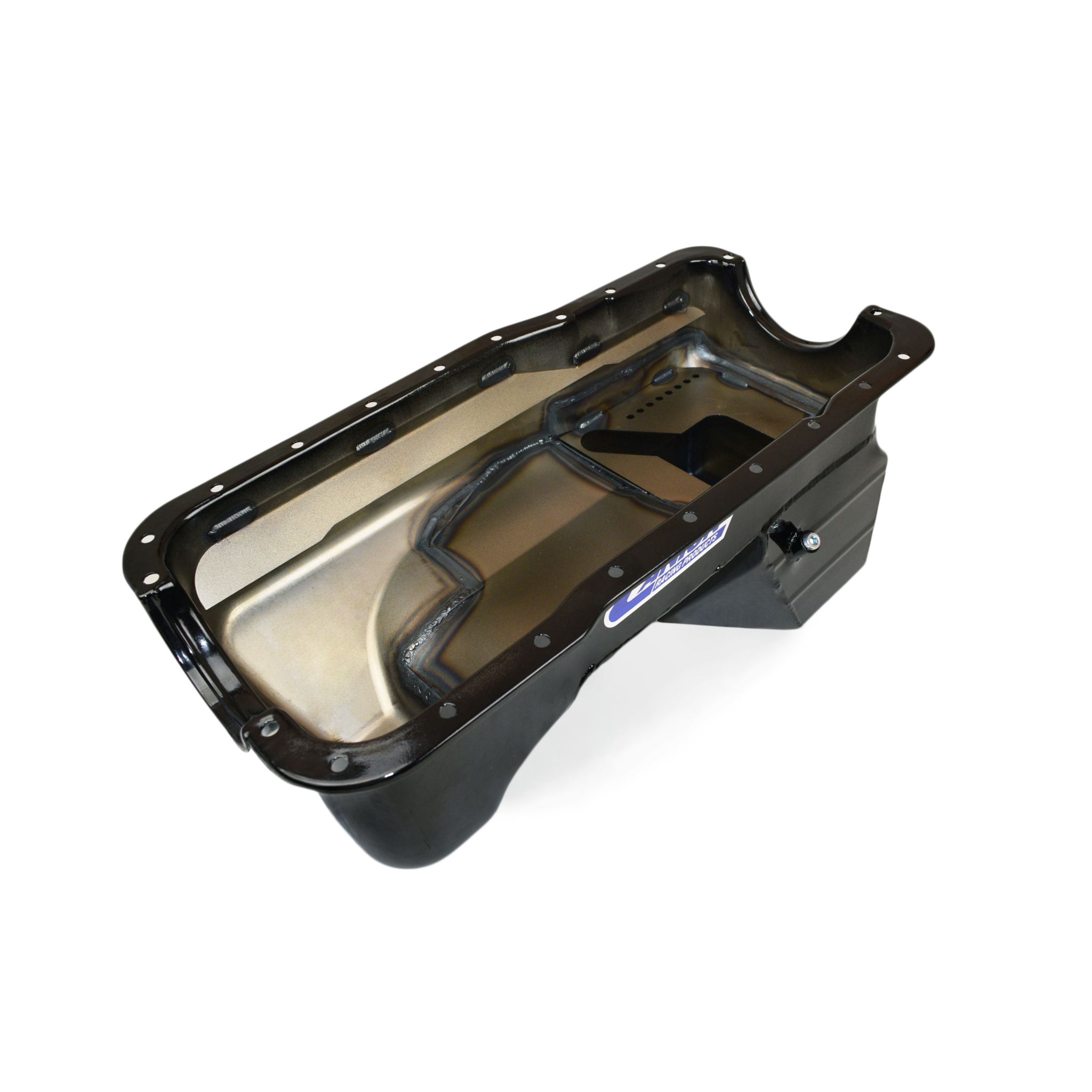

Canton 16-620 Oil Pan 302 Ford 66-77 Bronco Rear Sump Oil Pan Black Powder Coat

This deep sump oil pan for 302 Fords is designed for 1966?-1977 Broncos. It has an 10? deep sump for increased oil control and capacity and provides a 7 quart system capacity. This pan requires our 16-621 pickup.

Additional Attributes:

GTIN: 00887753714145
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Crank Scraper
Feature 3: Slosh Baffle
Feature 4: Provision For Our Pan Mounted Dipstick
Feature 5: Two Magnetic Drain Plugs
Feature 6: Gloss Black Powder Coat Finish
Finish: Black Gloss Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 14 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 16-621 – Pickup For 302 Rear Sump 16-620 Bronco Pan
Recommended Accessory 2: 20-950 – Main Cap Pickup Stud
Recommended Accessory 3: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 5: 88-602 – Small Block Ford 302 One Piece Oil Pan Gasket
Stoke: 3.4 inches
Windage Tray Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26.5 x 13.25 x 10.25 inches
Weight: 14.4 PG
