Canton 15-966 Oil Pan Honda F Series S2000 Baffled Road Race Oil Pan

This oil pan is the perfect solution for any s2000 that will see hard acceleration, cornering and braking. This pan is designed with an additional qt capacity over the stock pan as well as a diamond shape trap door baffle and anti-slosh baffle to control the oil and prevent starvation. The 3/16" laser cut rail provides a great sealing surface and a solid feel. Also included with the pan is an aluminum flywheel cover.

Additional Attributes:

GTIN: 00887753714046
Baffled: Yes
Crank Scraper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Engine: Honda F Series
Feature 1: 3/16 Steel Laser Cut Pan Rail
Feature 2: Diamond Shape Road Race Baffle
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 4: 1/2 NPT Temperature Bung
Feature 5: 1/2 NPT Turbo Drain Bung

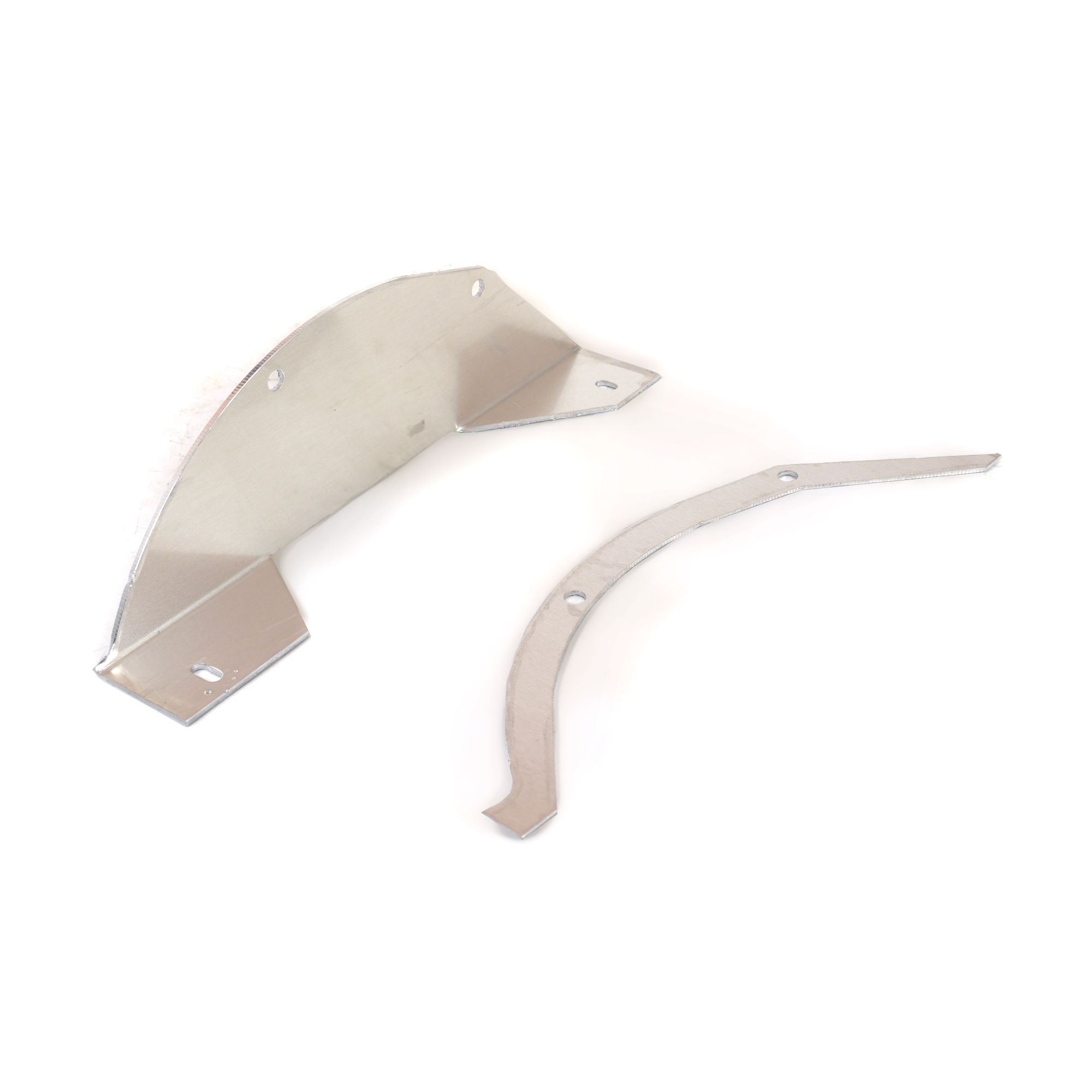

Feature 6: Includes an Aluminum Flywheel Cover
Feature 7: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: Steel
Pickup Included: No
Recommended Accessory 1: 22-370 Honda S2000 F Series Oil Pan Hardware Kit
Windage Tray Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 12 x 9 inches
Weight: 16 PG

PDF:

15-966 Install Notes
