Canton 15-680BLK Oil Pan For Ford 351W Front Sump Road Race Pan

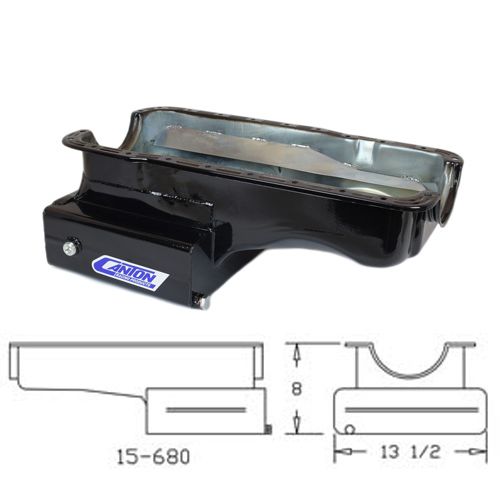

This black powder coated front sump road race pan is for Ford 351 Windsor blocks. It has an 8" deep, 13-1/2" wide front sump with a 9 qt. system capacity. Will work with stock & aftermarket starters. This pan requires our 15-661 pickup.

Additional Attributes:

GTIN: 00887753713179
Baffled: Yes
Capacity: 9 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 9 qt System Capacity
Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 3: Crank Scraper
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 5: 1/2″ NPT Temperature Bung
Feature 6: Provision For Our Pan Mounted Dipstick
Feature 7: Magnetic Drain Plug
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-661 – Pickup with 3/4″ Dia. Inlet
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-650 ? Small Block Ford 351W Four Piece Oil Pan Gasket
Stoke: 4.0 inches
Sump Depth: 8 inches
Sump Width: 13.5 inches
Windage Tray Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 18 PG

PDF:

Pan Install – Standard Part B
