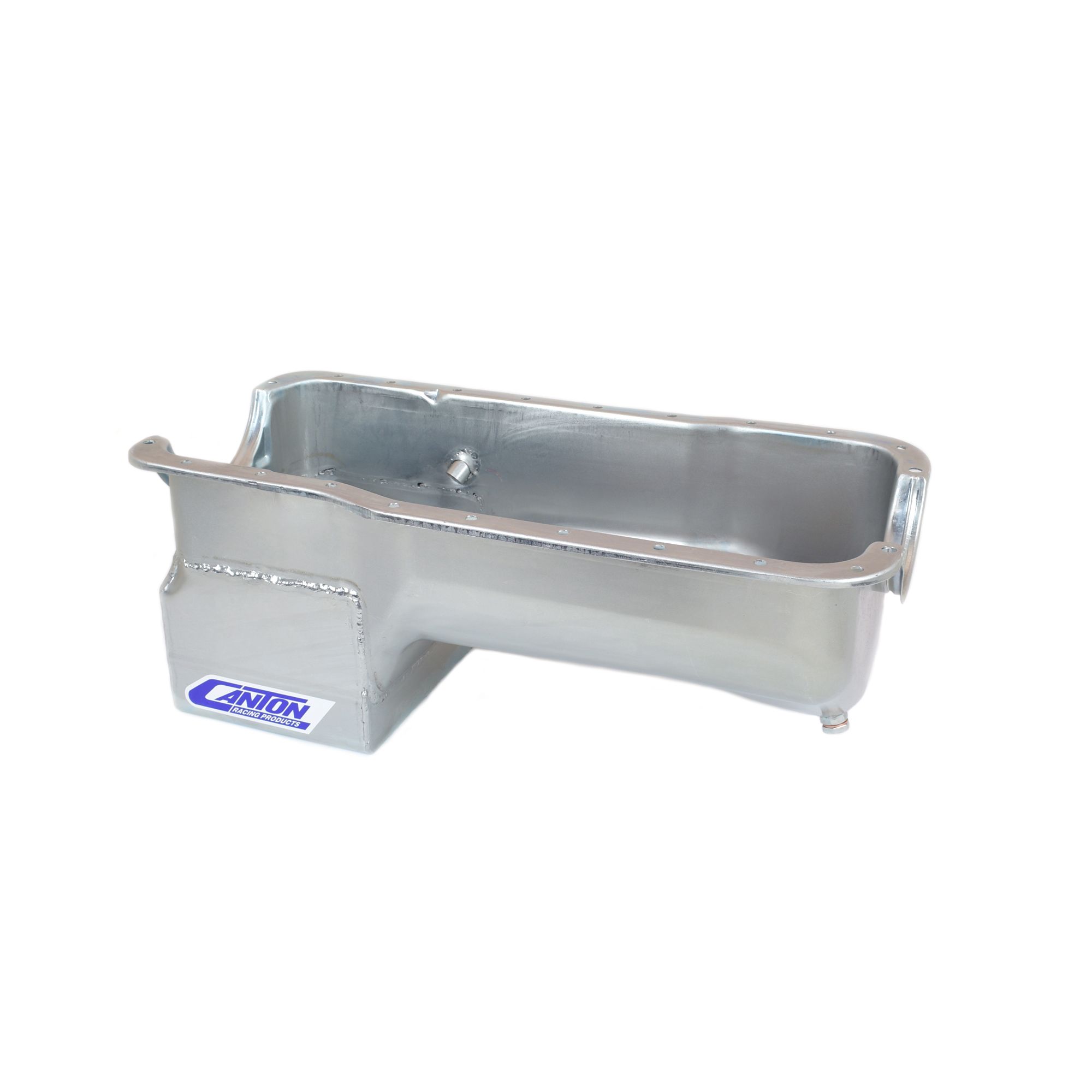

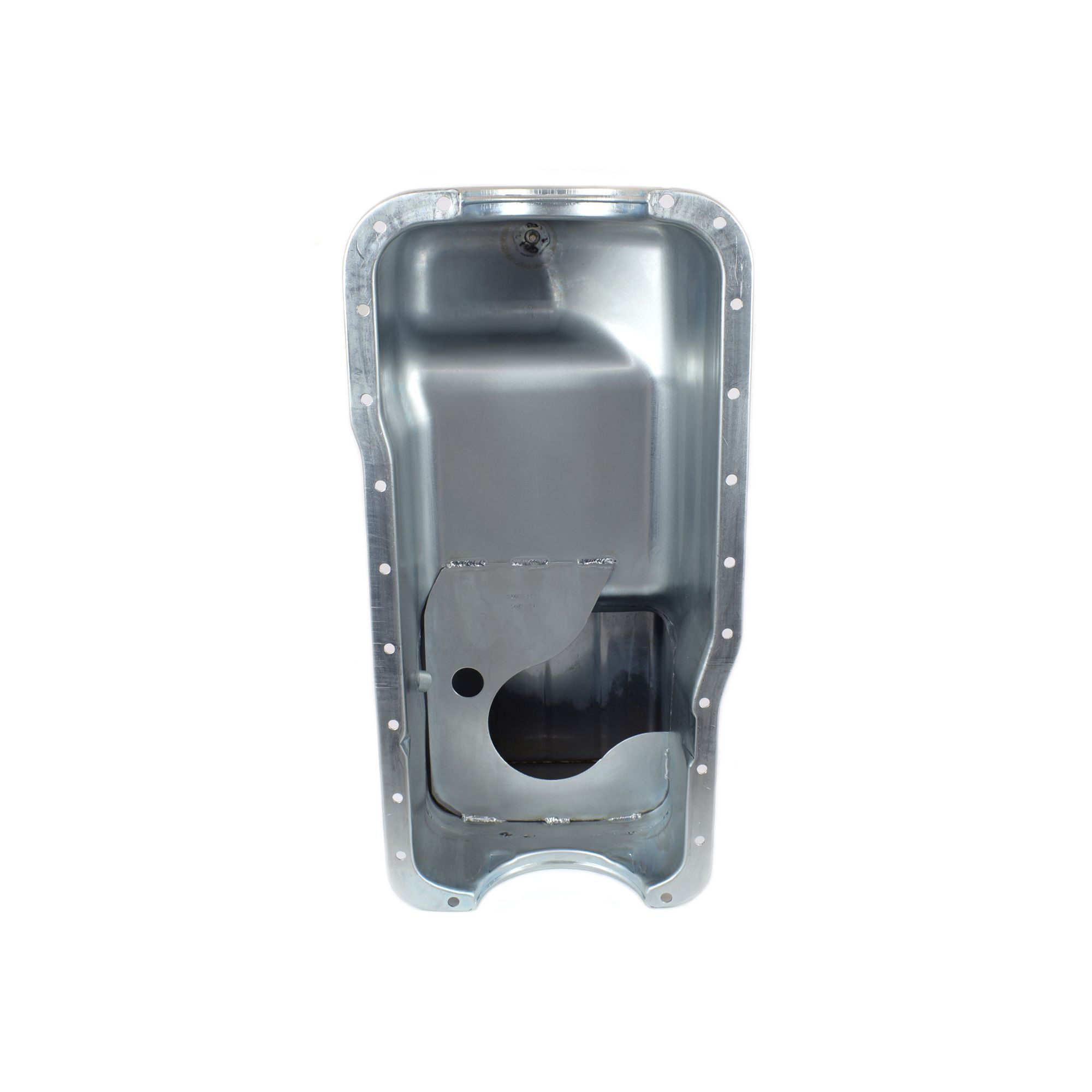

Canton 15-670S Oil Pan For Ford 351W Deep Rear Sump Pan Without Scraper

This deep rear sump oil pan is for Ford 351 Windsor blocks with main supports. It has a 9" deep by 7" long sump and a 7 quart system capacity. Crank scraper omitted allows clearance for most main supports. This pan requires one of our pickups.

Additional Attributes:

GTIN: 00887753713117
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Feature 1: 7 qt System Capacity
Feature 2: Extra Deep Sump For Increased Oil Control & Capacity
Feature 3: Slosh Baffle
Feature 4: Provision For Our Pan Mounted Dipstick
Feature 5: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 15-671 – Pickup with 3/4″ Dia. Inlet With or Without CANTON Main Support
Recommended Accessory 2: 15-675 – Pickup with 3/4″ Dia. Inlet With Other Main Support
Recommended Accessory 3: 21-062 – CANTON 351W Steel Main Support
Recommended Accessory 4: 20-962 – Ford 351W Main Support Mounted Windage Tray
Recommended Accessory 5: 20-953 – Pickup Mounting Stud for 351W Based Engines
Recommended Accessory 6: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 7: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 8: 88-652 ? Small Block Ford 351W One Piece Oil Pan Gasket
Stoke: 4.0 inches
Sump Depth: 9 inches
Windage Tray Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Superseded

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 15 PG

PDF:

Pan Install – Standard Part B
