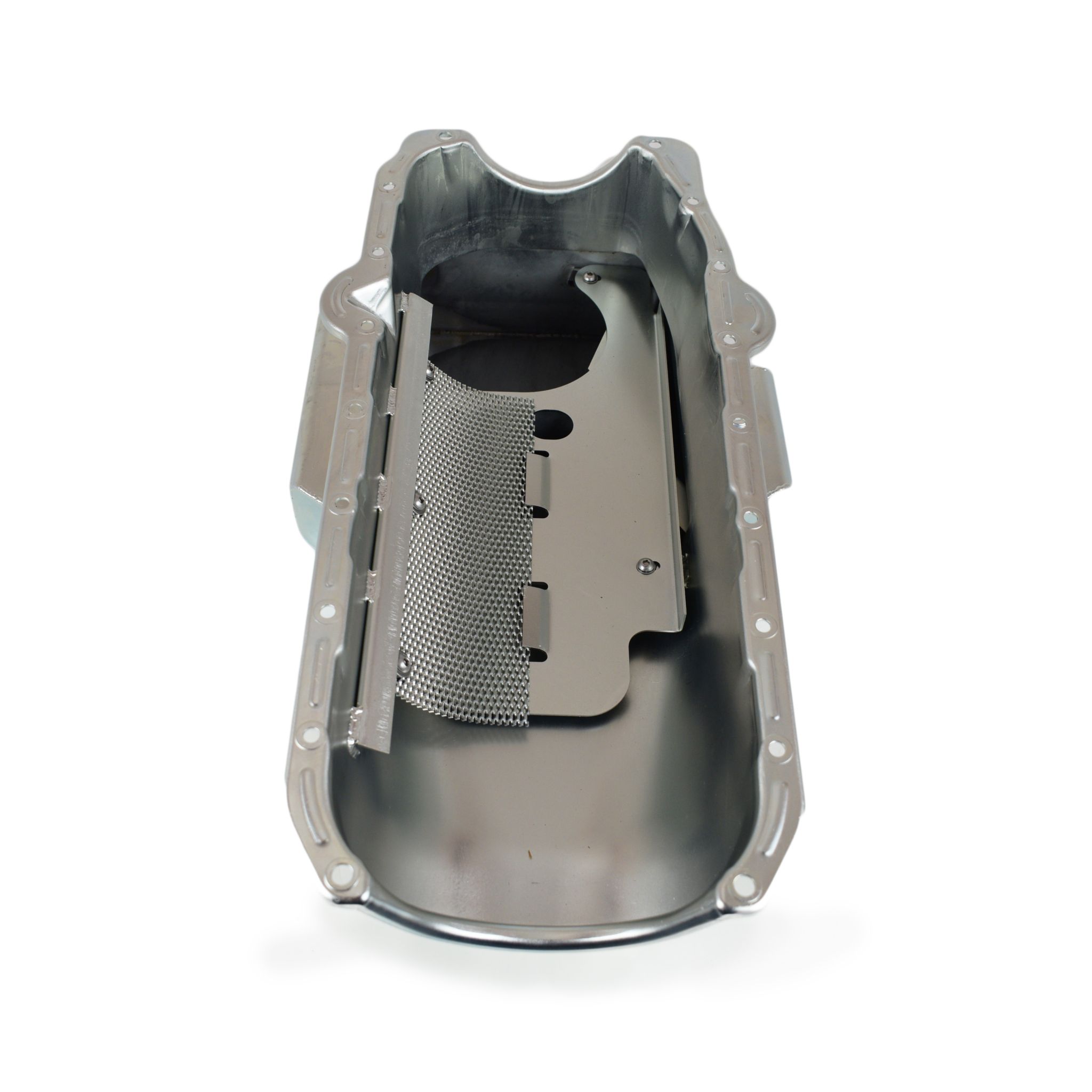

Canton 15-250M Oil Pan for Small Block Chevy G Body Road Race R/H Dipstick

This SBC road race oil pan is for '80 – '85 blocks with a two piece seal. It is designed for GM '78 and up G-Body chassis and '70 to '81 F-Body chassis, without a cross-over exhaust. It has a 7-1/2" depth, 13-3/4" width, 10-1/2" long sump, for a 7 quart system capacity. This pan requires one of our pickups.

Additional Attributes:

GTIN: 00887753992499
Baffled: Yes
Crank Scraper Included: Yes
Dipstick Port: No
Feature 1: Five Trap Door Baffles for Oil Control
Feature 2: Crank Scraper
Feature 3: Built in Screen Windage Tray
Feature 4: 1/2″ NPT Temperature Bung
Finish: Silver Plating
Gasket or Seal Included: No
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-010 – Pickup for SBC Standard Volume Oil Pumps M55 & M55A
Recommended Accessory 2: 20-013 – Pickup for SBC Standard Volume Oil Pump M155 with 3/4″ Inlet
Recommended Accessory 3: 20-020 – Pickup for SBC High Volume Oil Pump M55HV & 10550ST
Recommended Accessory 4: 20-023 – Pickup for SBC High Volume Oil Pump M155HV & 10551ST with 3/4″ Inlet
Recommended Accessory 5: 20-021 – Bolt-On Pickup for Melling M10552, 10555, and 10552ST Pumps
Recommended Accessory 6: 88-102 Gasket Oil Pan For Small Block Chevy ’80 – ’85 Right Side Dipstick
Stoke: 3.75 Inches
Windage Tray Included: Yes

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.5 x 16.25 x 9.5 inches
Weight: 20 PG
