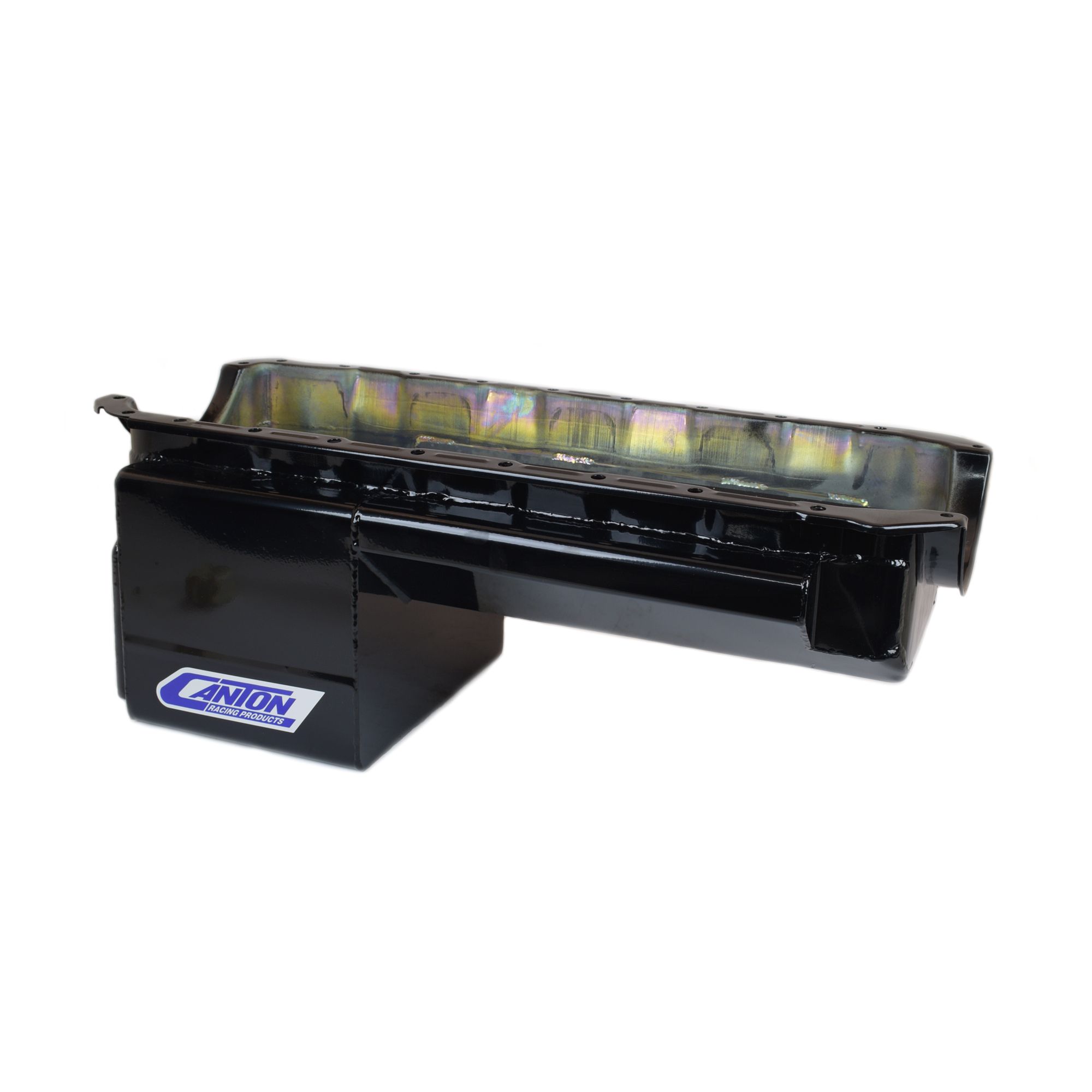

Canton 13-334BLK Oil Pan Big Block Chevy Drag Race Pan For Aftermarket Starter

This black powder coat BBC drag race power series oil pan is for Mark 4 blocks. It has a 9" deep by 9" long and 9" wide sump and a 7 quart system capacity. It is designed to fit most stock chassis. Will work with aftermarket offset starters. This pan requires our 20-190 pickup.

Additional Attributes:

GTIN: 00887753711823
Baffled: Yes
Capacity: 7 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Engine: For B.B. Chevy Mark 4 Blocks
Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower

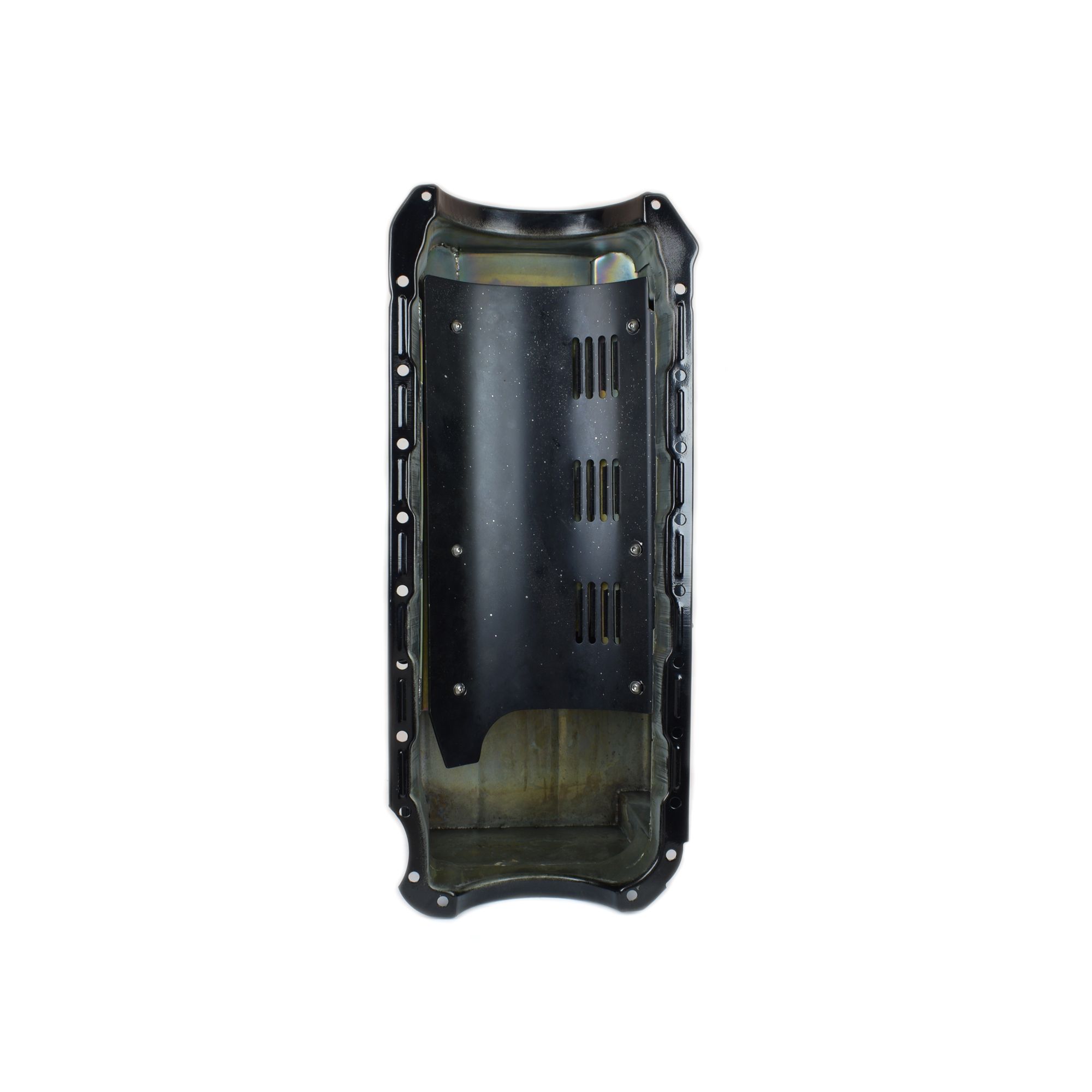

Feature 3: Removable Louvered Windage Tray
Feature 4: Trap Door Baffle For Oil Control
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 6: Magnetic Drain Plug
Feature 7: Black Powder coat
Finish: Black Powder coat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-190 – Pickup for BBC Pumps
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Stoke: 4.5 inches
Windage Tray Included: Yes

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Discontinued

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 14 x 10 inches
Weight: 19 PG

PDF:

Pan Install – Standard Part B
