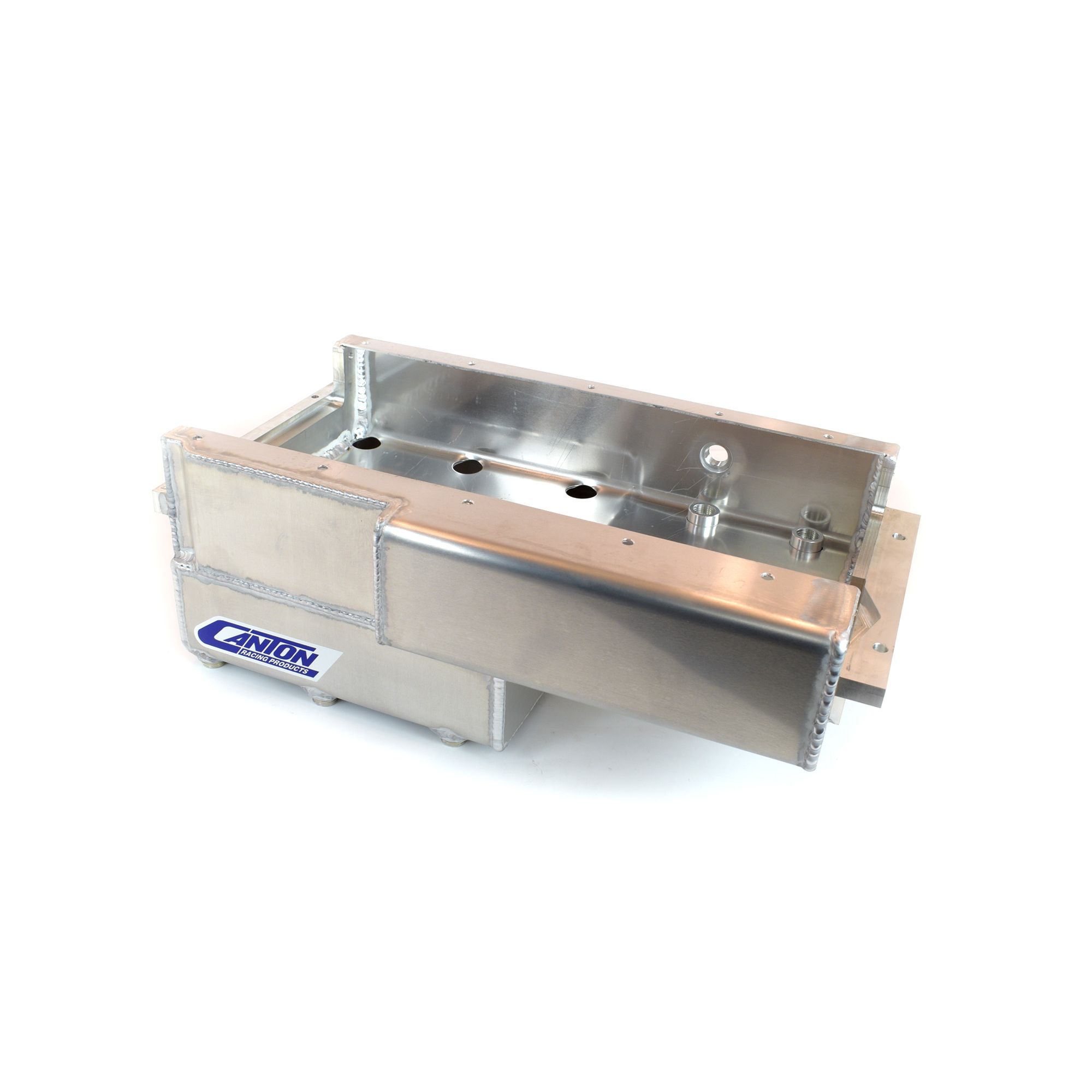

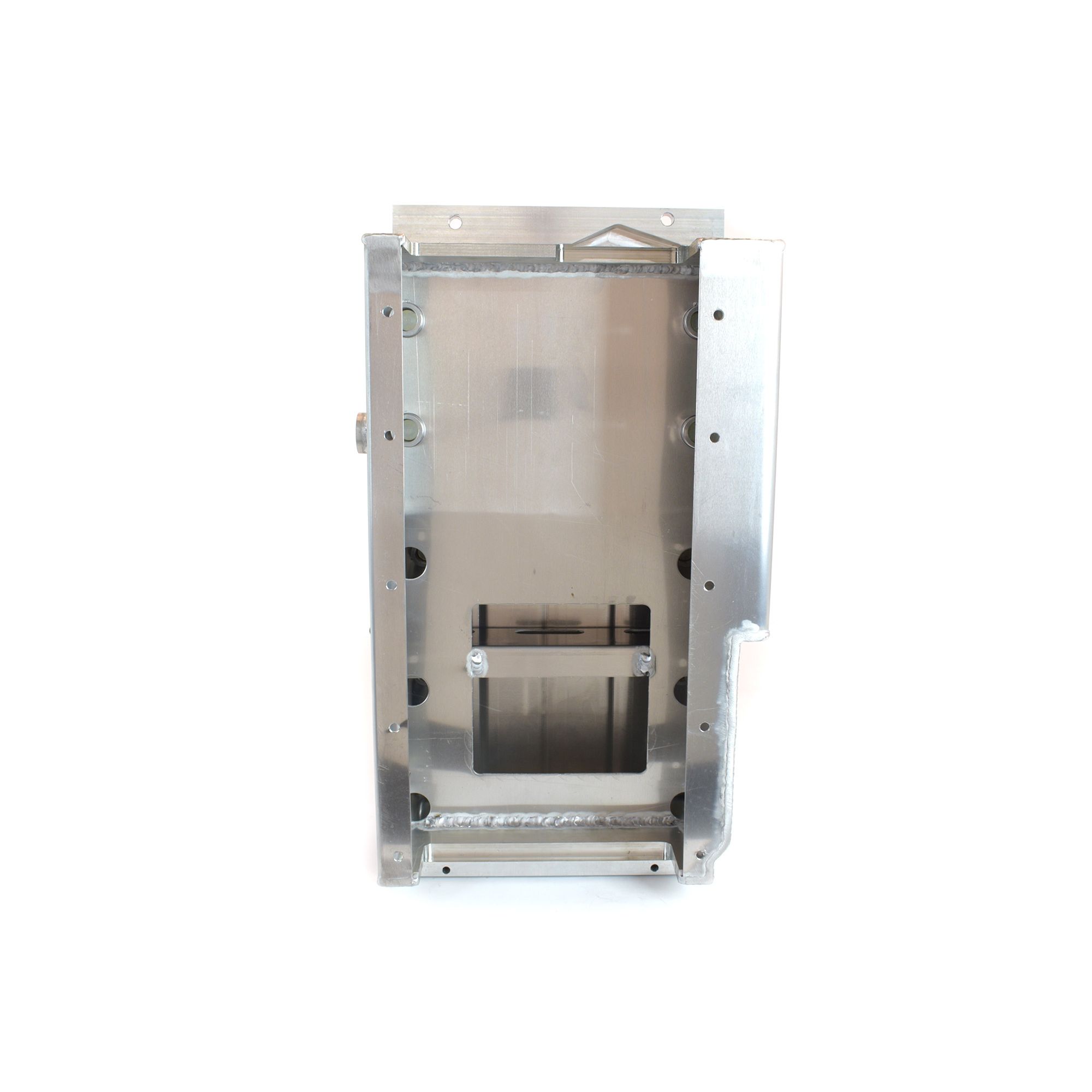

Canton 13-280A Oil Pan Dart LS Next Rear Sump Drag Race Pan

Our LS NEXT rear sump drag pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-Style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our drag racing baffle is designed to control the oil in street and strip applications of hard acceleration and deceleration.

Additional Attributes:

GTIN: 00887753711755
Baffled: Yes
Capacity: 6.5 Quarts
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Engine: Dart LS Next
Feature 1: Pro-Style Recovery Pouch
Feature 2: Machined Billet Front & Rear Seals
Feature 3: Double Trap Door Baffles
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 5: Provision For Pan Mounted Dipstick
Feature 6: Magnetic Drain Plug
Finish: Raw Aluminum
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: .100 Aluminum
Pickup Included: No
Recommended Accessory 1: 13-281 – LS Next Pickup for #13-280
Recommended Accessory 2: 21-870 – LS Flywheel Cover for T56 Bellhousing
Recommended Accessory 3: 22-304 – LS NEXT Oil Pan Stud Kit
Recommended Accessory 4: 22-620 – Billet Aluminum remote spin-on filter mount 13/16″-16 Thread
Windage Tray Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Discontinued

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 25 x 16 x 9 inches
Weight: 16 PG

PDF:

Pan Install – Standard Part B
