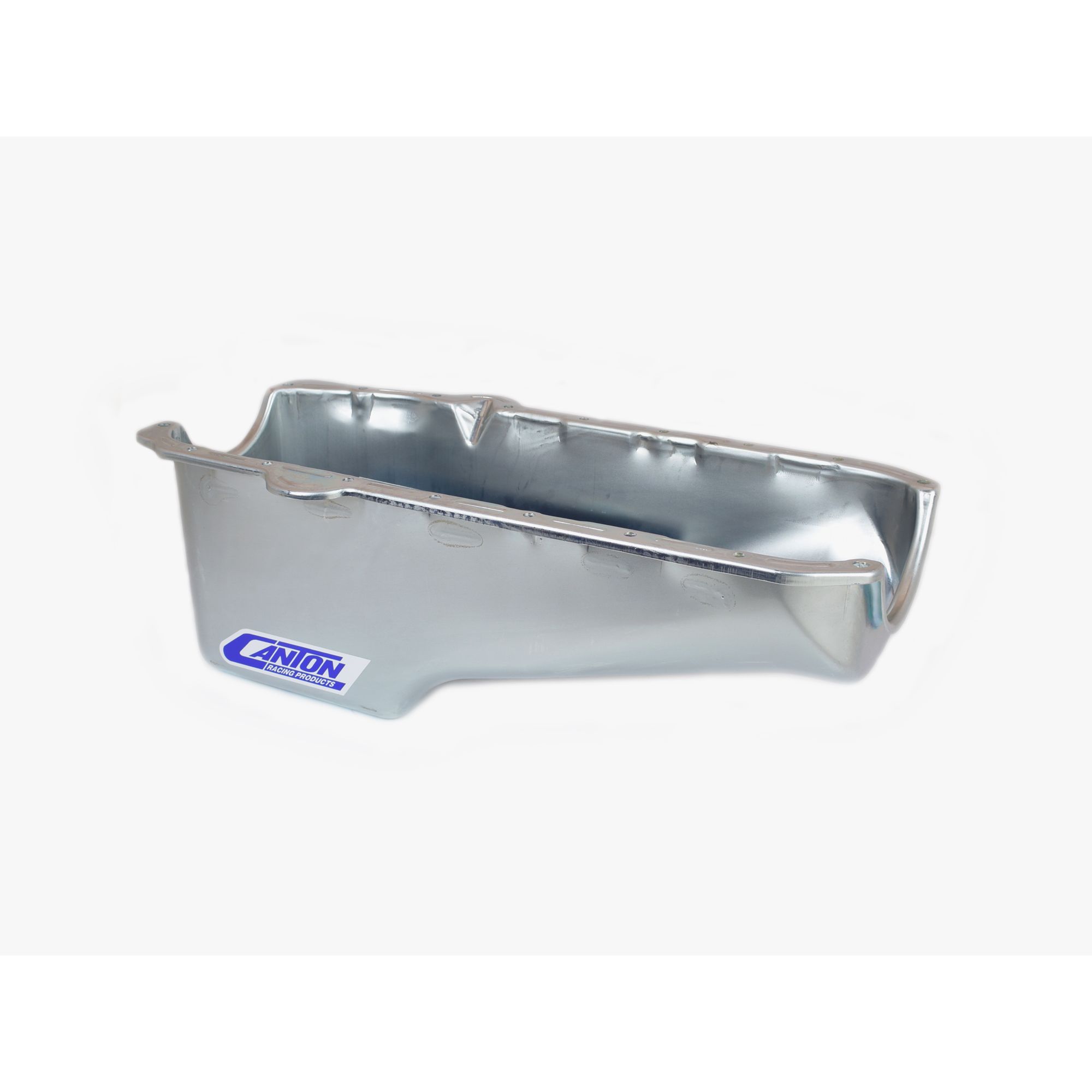

Canton 11-200 Oil Pan Small Block Chevy Stock Appearing Circle Track Pan

This circle track stock appearing pan is for pre-?80 Small Block Chevys with left side dipstick. It is designed for circle track applications where a stock appearing oil pan is required, such as strictly stocks or mini-stocks. Stock dimensions are capacity are retained, but Canton's specially designed baffling system ensures increased oil control. This pan requires our 20-002 pickup.

Additional Attributes:

GTIN: 00887753711281
Baffled: Yes
Capacity: Stock System Capacity
Crank Scraper Included: Yes
Dipstick Port: No
Drain Plug Included: Yes
Engine: For S.B. Chevy Pre-1980 Blocks
Feature 1: Retains Stock Oil Pan Dimensions
Feature 2: Baffled with Double Trap Door Baffles
Feature 3: Removable Windage / Anti-Slosh Baffle
Feature 4: Built in Crank Scraper
Feature 5: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-002 – Pickup For Small Block Standard Volume Only – M-55 or M-55A Oil Pumps
Recommended Accessory 2: 88-100 ? SBC Pre ?85 Oil Pan Gasket

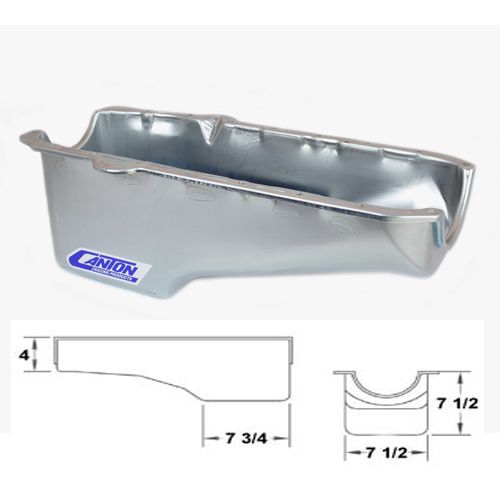

Stoke: 3.75 inches
Windage Tray Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23.5 x 12 x 9.5 inches
Weight: 13 PG

PDF:

Pan Install – Standard Part B
