Camburg Engineering 4WD 2009-2013 Ford F-150 FOX 2.0 Performance Lift Kit CAM-110150-UC

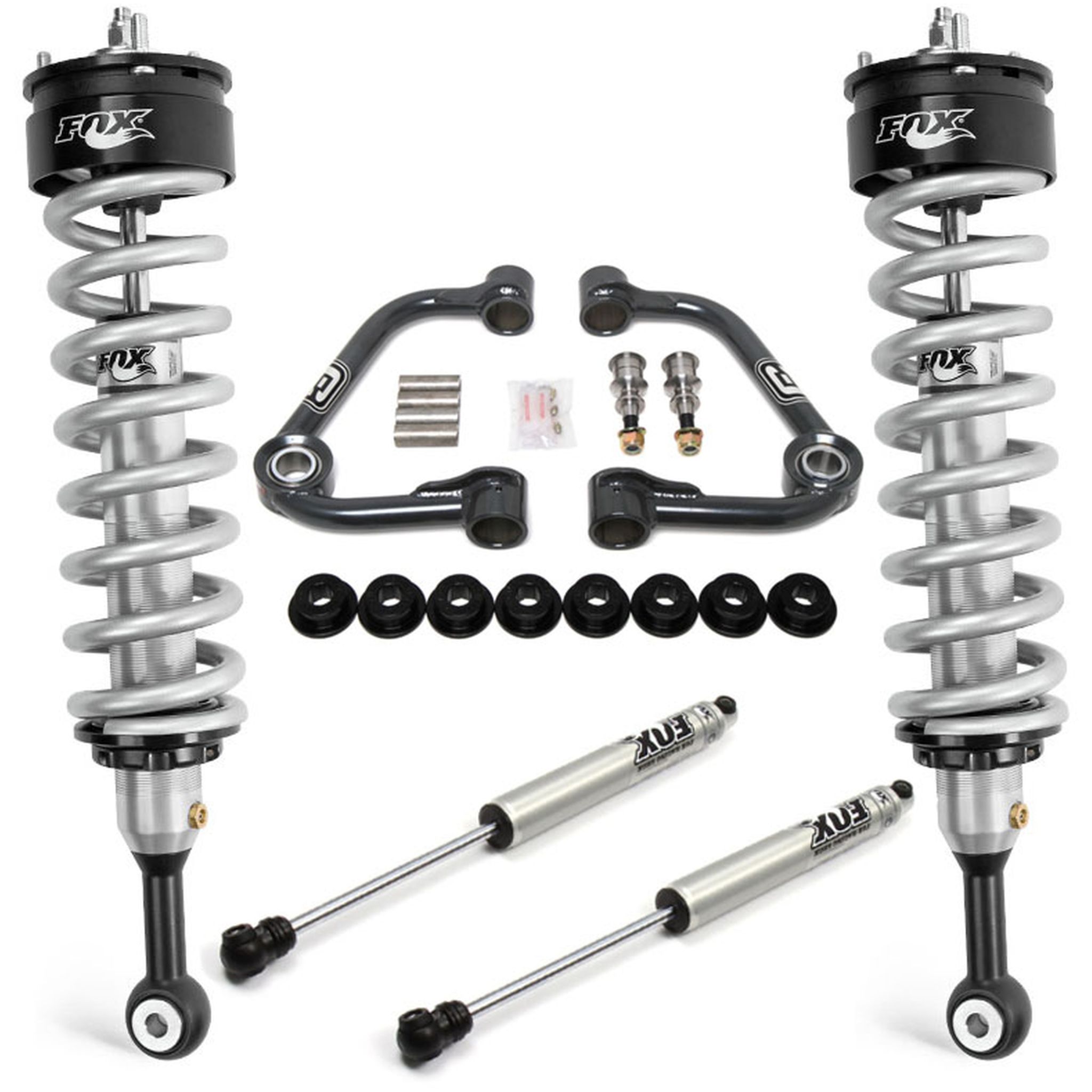

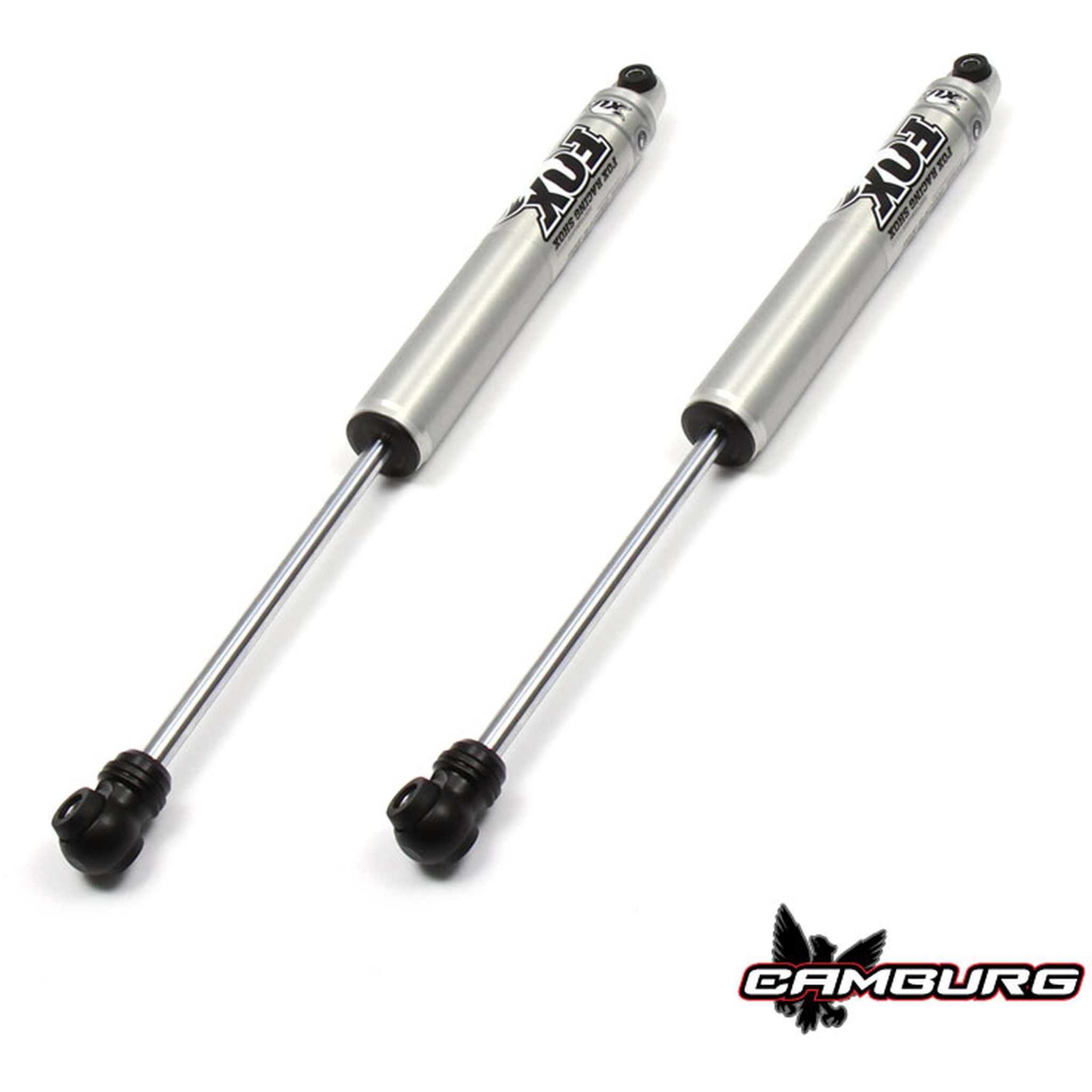

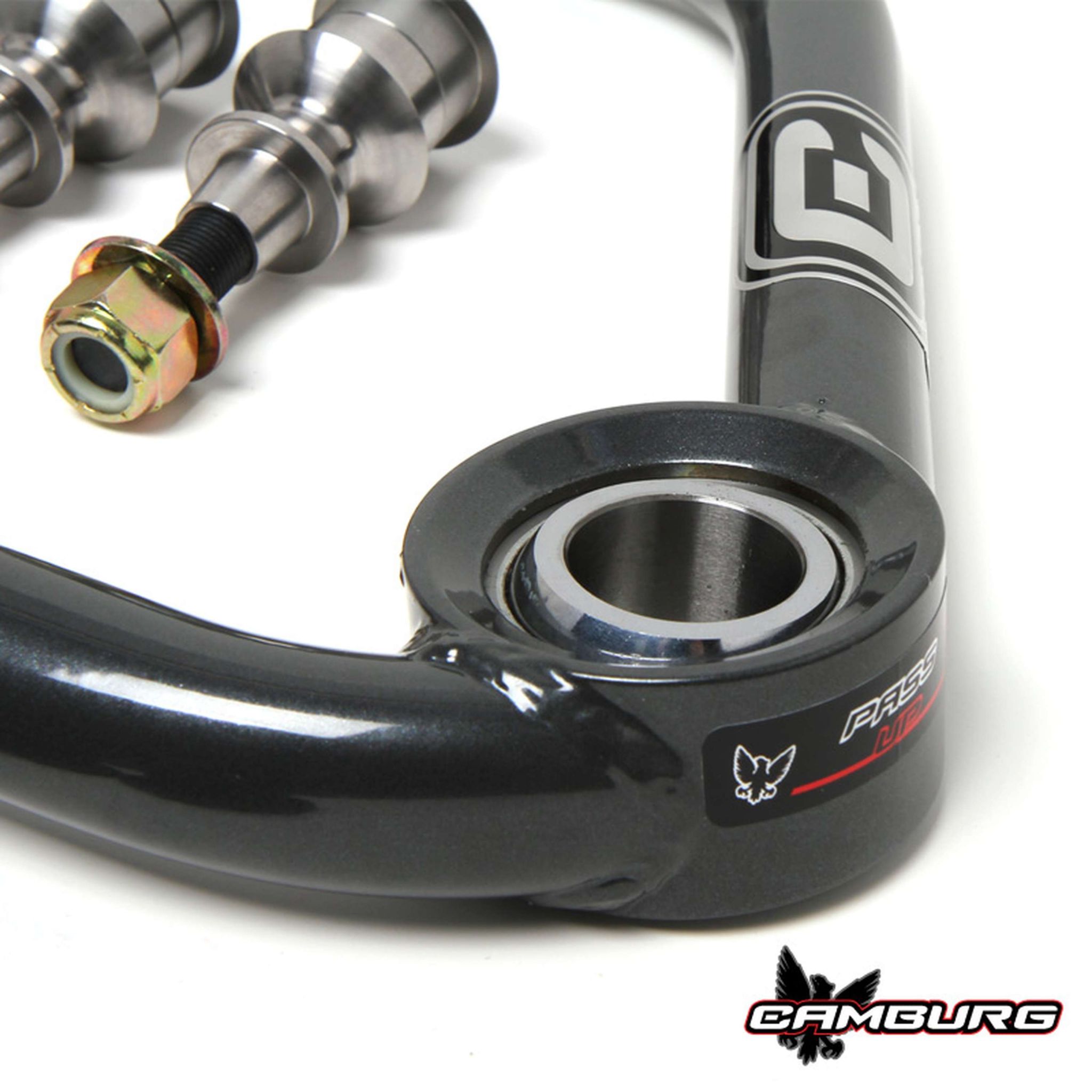

The Camburg FOX 2.0 Trail Series kit is a suspension system for the Ford F-150. It includes FOX 2.0 Performance Series IFP Coilovers for 0-2 inches of lift and increased wheel travel. The shocks have a smooth-bore, clear coated, zinc plated, honed seamless alloy body, black anodized 6061-T6 billet aluminum components, and a 5/8" hard chrome plated heat treated alloy steel shaft. They also have an internal reservoir design to separate shock oil from high-pressure nitrogen. The kit also includes uniball upper arms that replace the stock ball-joint for increased wheel travel and improved performance. The arms have more caster and a changed camber curve for correct alignment and better driving characteristics. In the rear, the kit includes FOX 2.0 Performance Series shocks with a larger aluminum shock body for better offroad performance. Note that factory 20" wheels may not clear the upper arm and may require a wheel spacer. Aftermarket wheels with the correct offset are recommended for optimum performance and fit. The kit provides improved ride and handling, easy bolt-on installation, and is made in the USA.

Additional Attributes:

GTIN: 00888563191515
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Silver
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Silver
Maximum Lift: 2
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Dust Cover Caps Included: Yes
Front Shock Type: 2.0 Performance Series IFP Coilovers
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 2
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 2.0 Performance Series IFP
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: FOX
Spring Load: N/A
Spring Rate: N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:
