Camburg Engineering 2WD Ford Ranger Edge ’01-12 FOX 2.0 Performance Lift Kit (Dual Shock) CAM-110009-2

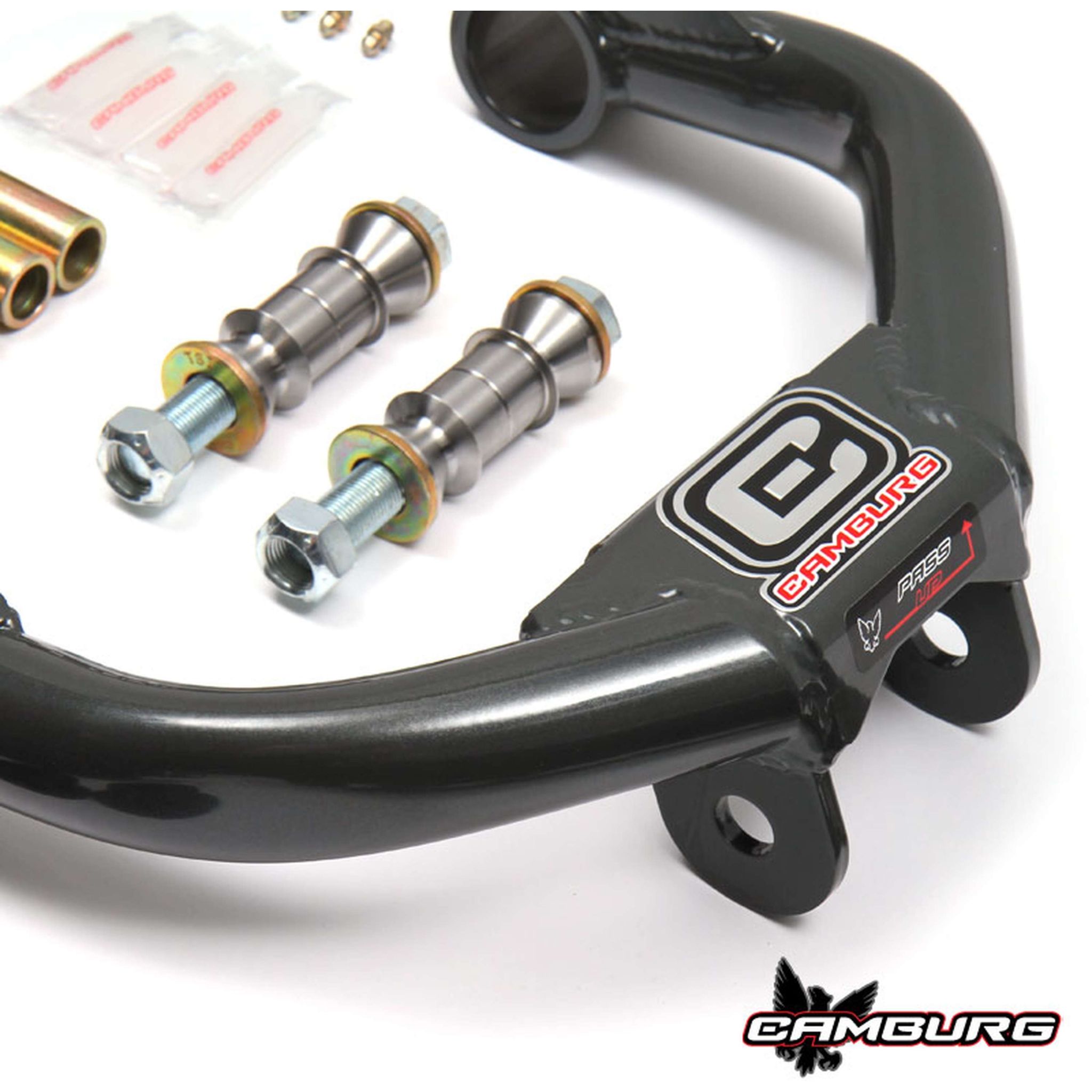

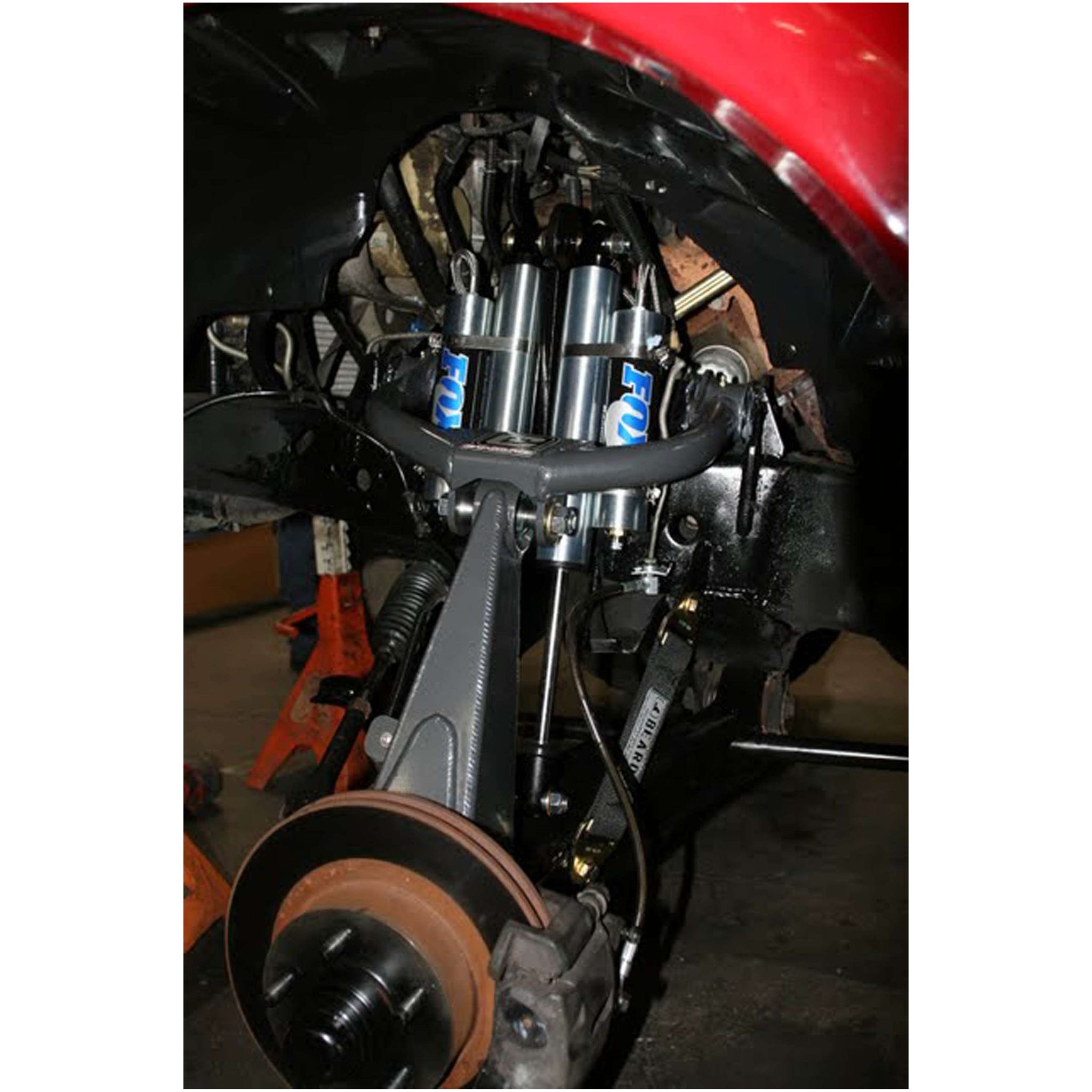

Our 6.0 kit for the RWD Ford Rangers set the bar years ago as the best performance kit available. The kit uses our 3" lift fabricated race spindles with a massive 1" vertical uniball that replaces the weak upper ball-joint that is prone to fail. This allows for 10" of useable wheel travel. The upper arms are made from 1.50" x.120 wall 4130 chromoly tubing and double shears the uniball. With our weld-on dual shock mount we use upgraded FOX 2.0 Performance Series for added control and higher oil capacity which are valved specific for this kit. By adjusting the torsion bars you can setup the front end with 4-6" of lift. Track width is  increased 1.5" per side giving you a wider stance for better stability and added wheel travel. This is why Fiberglass front fenders are highly recommended. We now include our weld-on upper frame gusset reinforcement kit. This kit fits RWD Rangers with torsion bars only. For coil spring trucks use our Ranger XLT 5.5 kits.** This also fits RWD 1995-2005 Explorers and 2001-2005 SportTrac's with 11.25" brake rotors. Call for more info. 4-6" of lift 10" of wheel travel 1.5" wider per side Dual FOX 2.0 shocks Must re-use the factory OEM spindle snouts/pins. Aftermarket versions will not work Fiberglass front fenders required to run 33" tires Cutting and welding is required to install this kit.

Additional Attributes:

GTIN: 00888563191232
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 6
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Strut(s) Included: No
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Front Shock Type: 2.0
Front Springs Included: No
Hardware Included: Yes
Joint Type: Uniball
Lift: 6
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: N/A
Rear Shocks Included: No
Rear Springs Included: No
Shock Brand: FOX
Shock Type: 2.0 Performance Series
Spring Load: N/A
Spring Rate: N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
