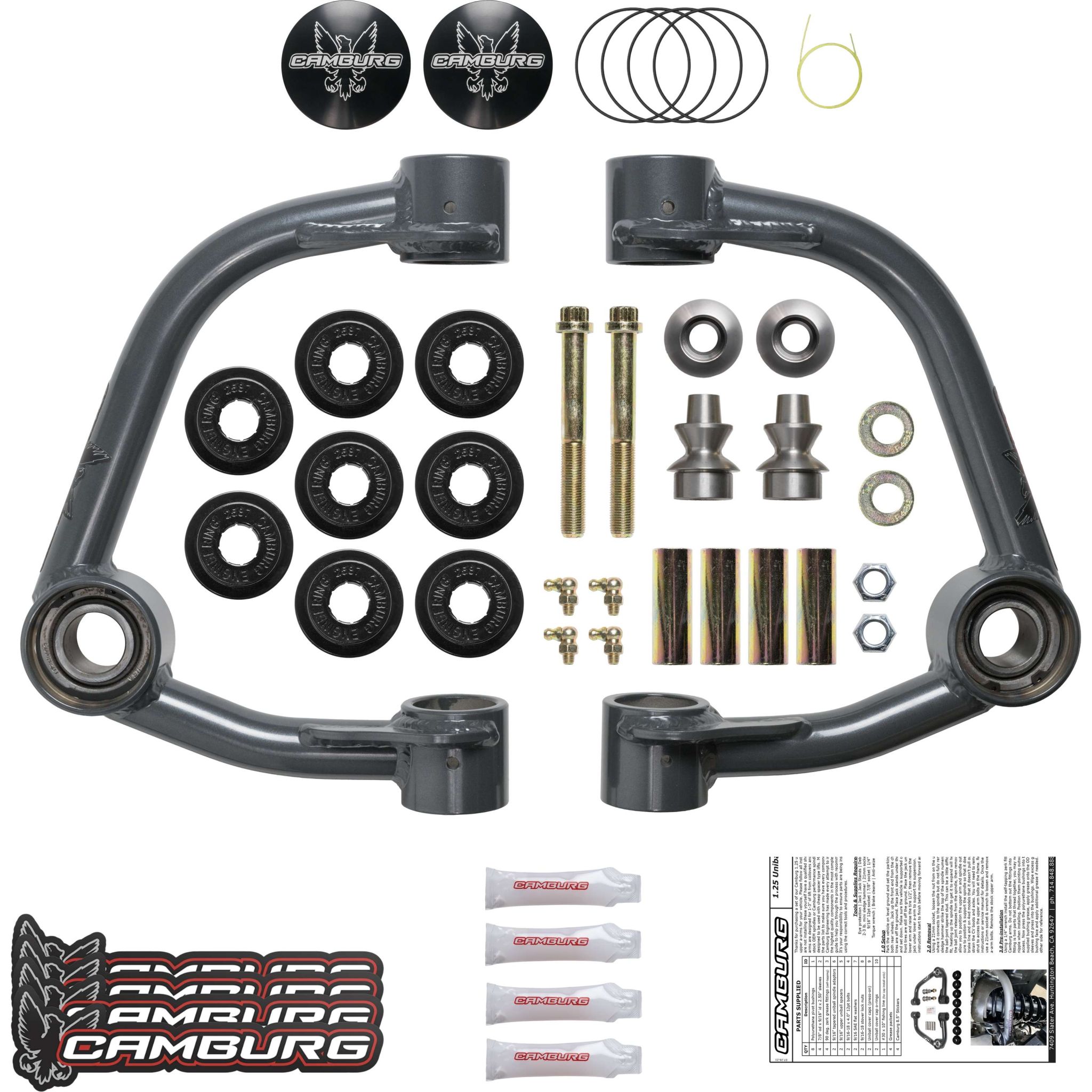

Camburg Engineering 2WD/4WD 2009-2020 Ford F-150 Excludes Raptor Control Arm Kit CAM-110187

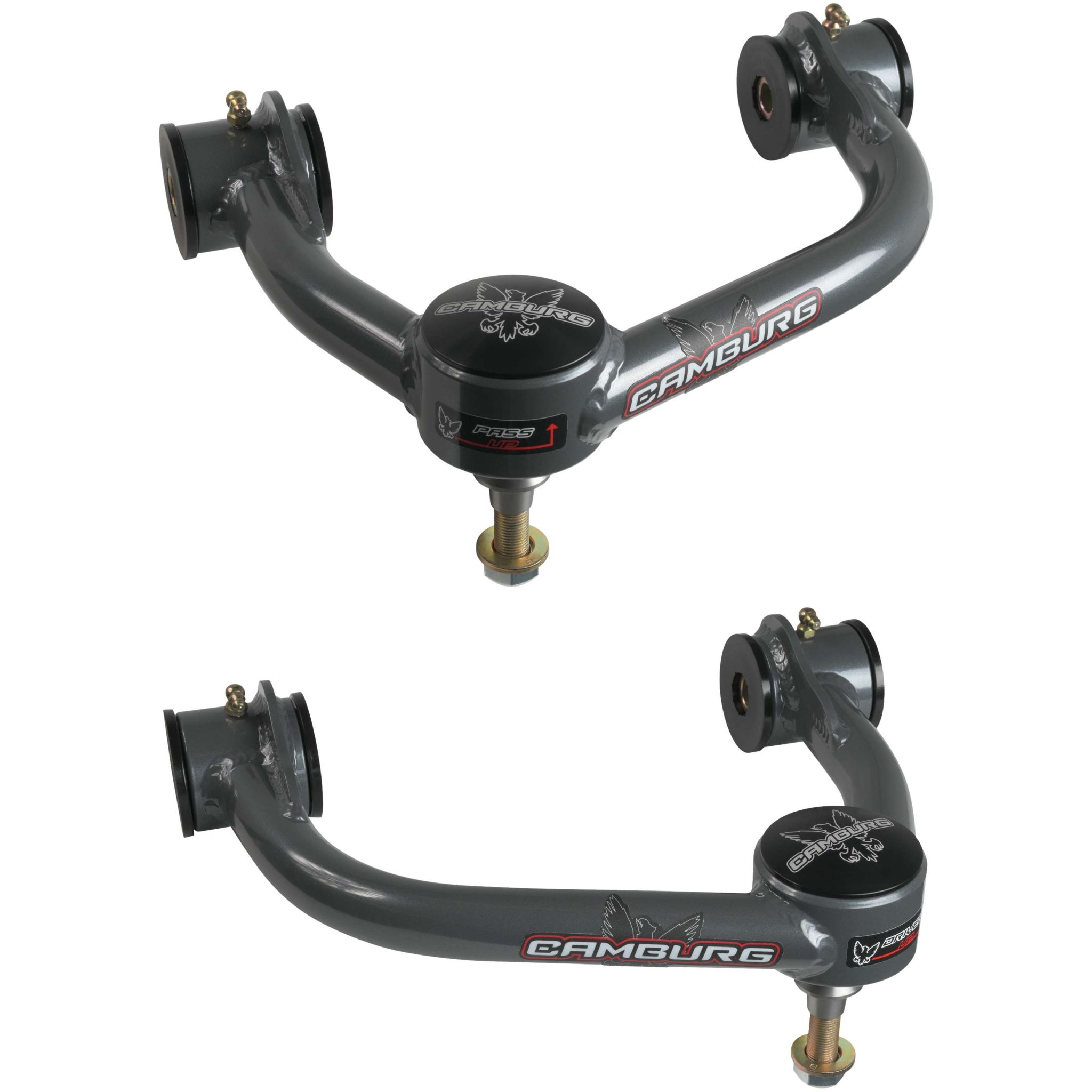

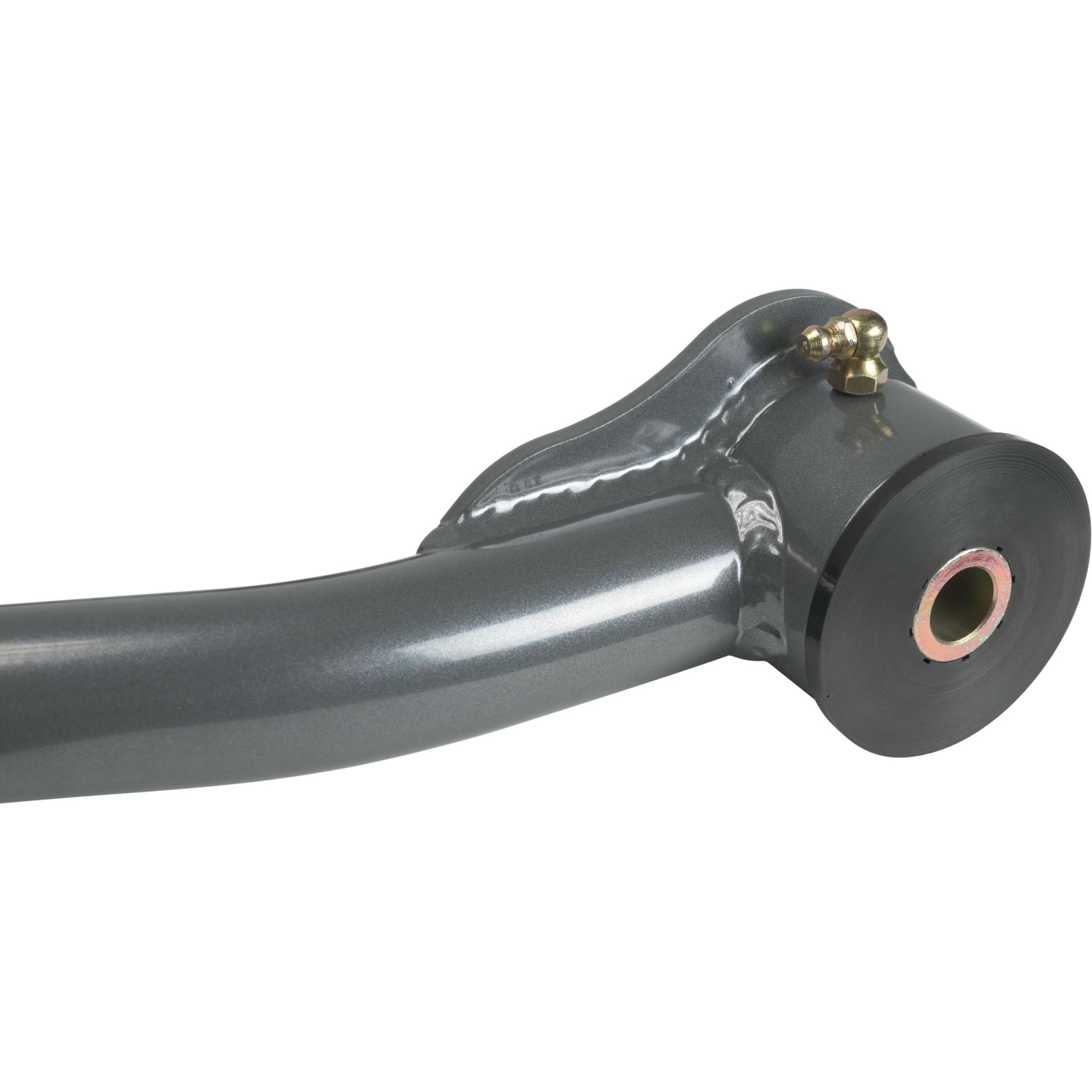

Our updated design features a billet aluminum cover for the uniball, preventing dirt and contaminants from entering. The cap is press-fit with an O-ring seal. Our Camburg upper arms replace stock ball-joints with a larger 1.25 uni-ball bearing, increasing wheel travel and durability. We optimize geometry for correct alignment and improved handling using CAD/CAM software and laser scanning. Manufactured in-house, our arms are laser cut, bent, MIG welded, sandblasted, and powder-coated. Machined parts include stainless steel uniball mis-alignment spacers. Features include increased wheel travel, corrected camber and caster, elimination of weak ball-joints, thick tubing, polyurethane bushings with grease-able fittings, PTFE-lined uniballs, steel gray powder-coating, and all necessary hardware. Designed for 1-3" lift. Note that trimming may be required for certain wheel/tire combinations, and larger OEM wheels/tires may require hub-centric wheel spacers.

Additional Attributes:

GTIN: 00888563186498
Pre-Assembled: Yes
Reinforced: No
Pre-Greased: No
Grease Fitting Included: Yes
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Included: Yes
Control Arm Construction: Tubular
Control Arm Material: 4130 Chromoly
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Gray
Bushing Material: Polyurethane
Attachments Included: No
Ball Joint Cover Included: Yes
Ball Joint Type: Uniball
Hardware Included: Yes
Prop 65 Y/N: No
Set: Yes
Suspension Type: Performance

Extended Information:

Emissions : 4
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:

PDF:

CAM-110187
