Camburg Engineering 2WD/4WD 2007-2021 Toyota Tundra FOX 2.0 Performance Lift Kit CAM-310117-U

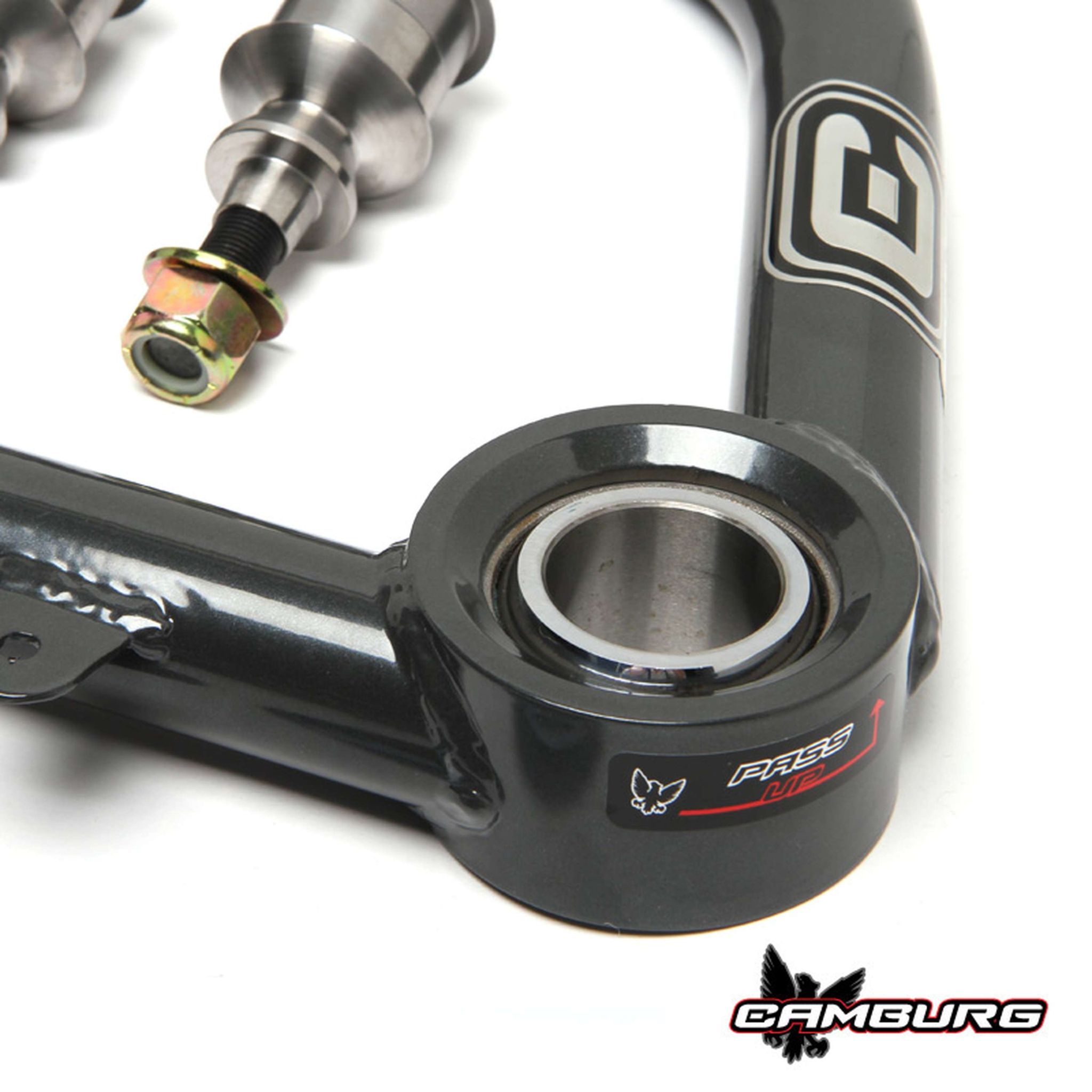

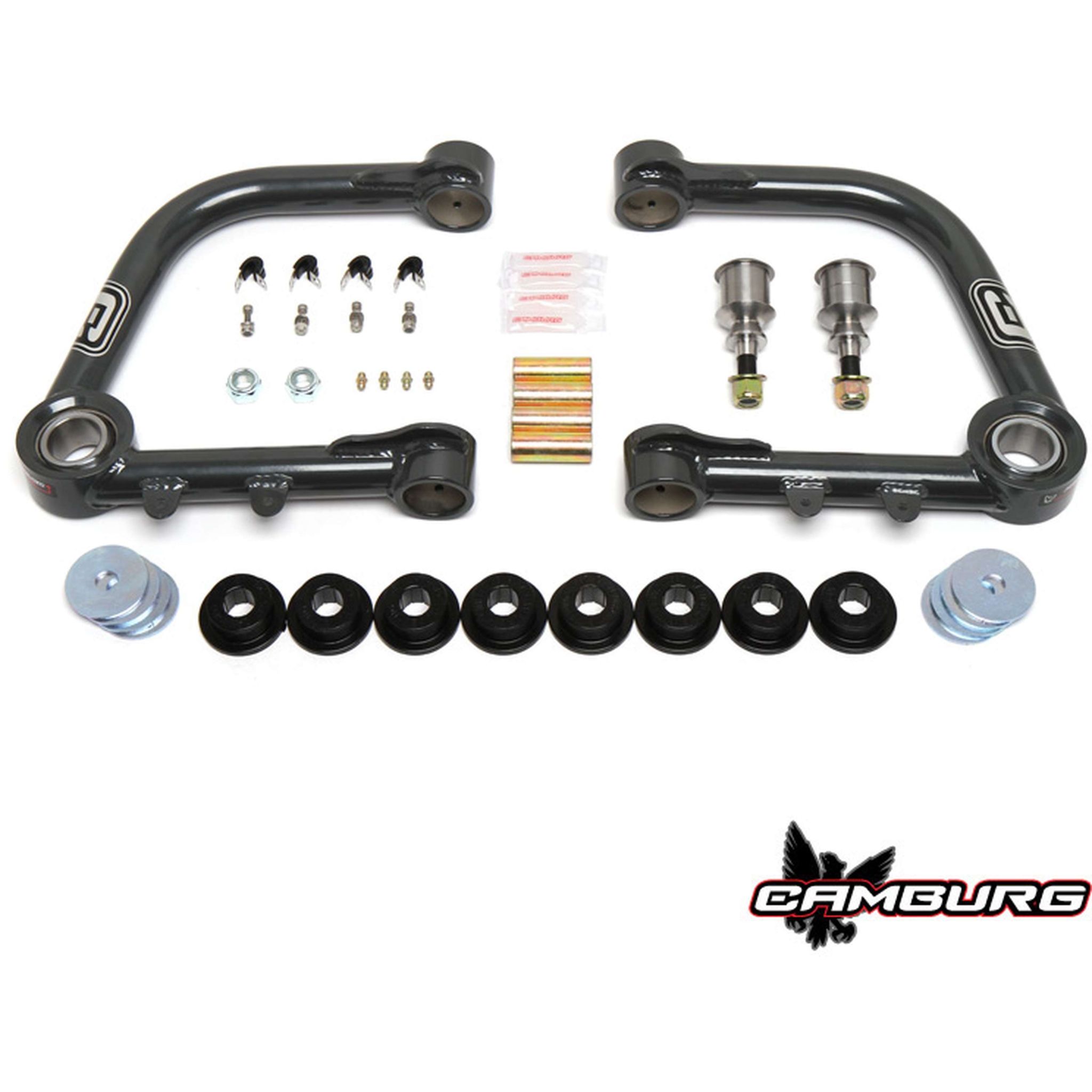

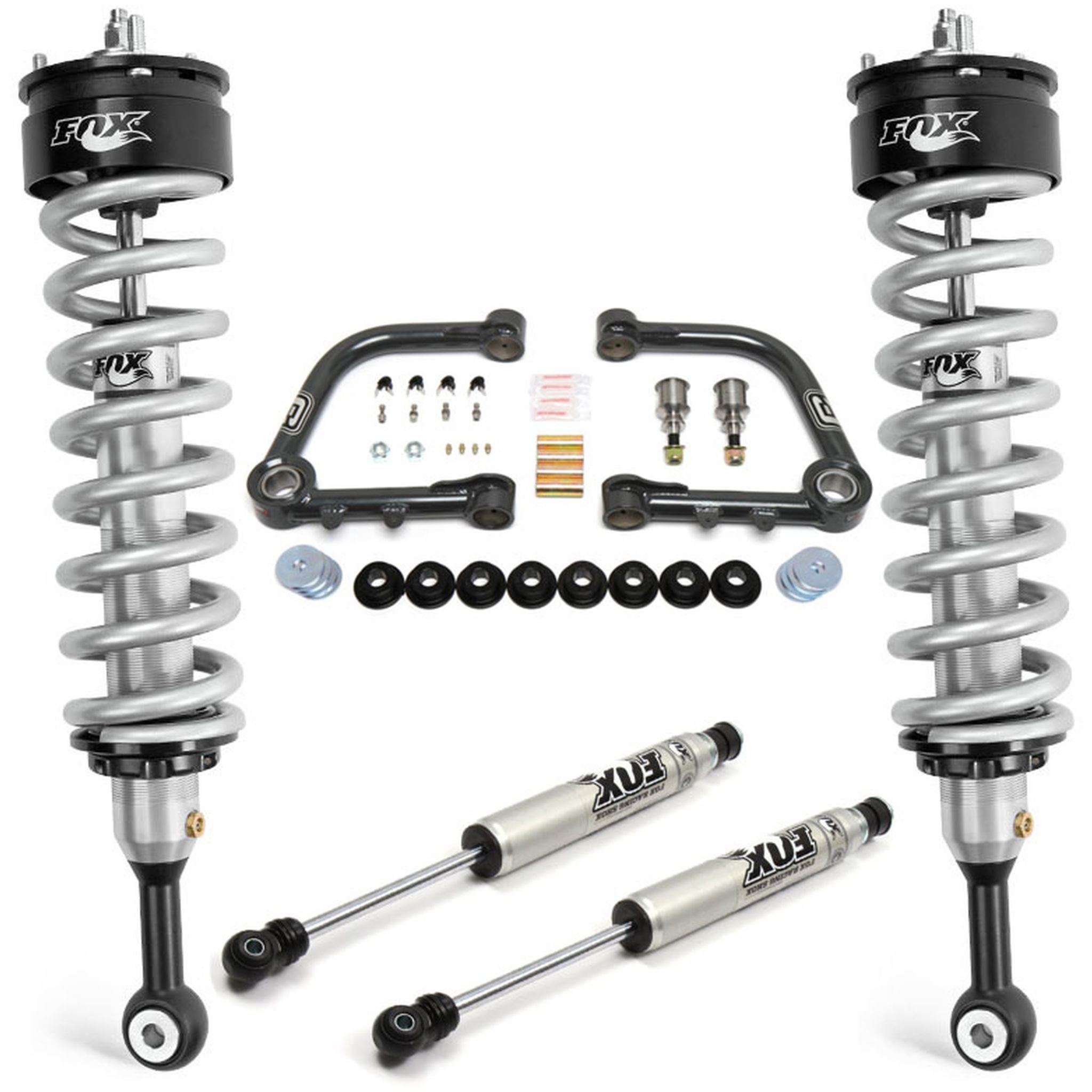

The Camburg FOX 2.0 Trail Series kit is a suspension system for Toyota Tundra. It includes FOX 2.0 Performance Series IFP Coilovers for 0-2 inches of lift and increased wheel travel. The shocks have a smooth-bore, clear coated, zinc plated, honed seamless alloy body, black anodized 6061-T6 billet aluminum components, and a 5/8" hard chrome plated heat treated alloy steel shaft. They also have an internal reservoir design to separate shock oil from high-pressure nitrogen. The kit also includes upper arms to address limitations of stock arms, with options for tubular uniball arms or tubular X-joint arms. These arms increase wheel travel, improve geometry, and enhance driving characteristics. In the rear, the kit includes FOX 2.0 Performance Series shocks with a larger aluminum shock body for better off-road performance and a firmer ride. Depending on variables such as wheel size, offset/backspacing, tire size, and suspension components, trimming of plastic inner fenders and modification of the body mount may be required to eliminate tire rubbing. The kit is not compatible with 20" OEM wheels and tires and 18" OEM wheels with larger tires without hub-centric wheel spacers.

Additional Attributes:

GTIN: 00888563194271
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Silver
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Silver
Maximum Lift: 2
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Dust Cover Caps Included: No
Front Shock Type: 2.0 Performance Series IFP Coilovers
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 2
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 2.0
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: FOX
Spring Load: N/A
Spring Rate: N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:

PDF:

CAM-310041
