Camburg Engineering 2WD 2021-2024 Ford F-150 Excludes Raptor FOX 2.0 Performance Lift Kit CAM-110238-UC

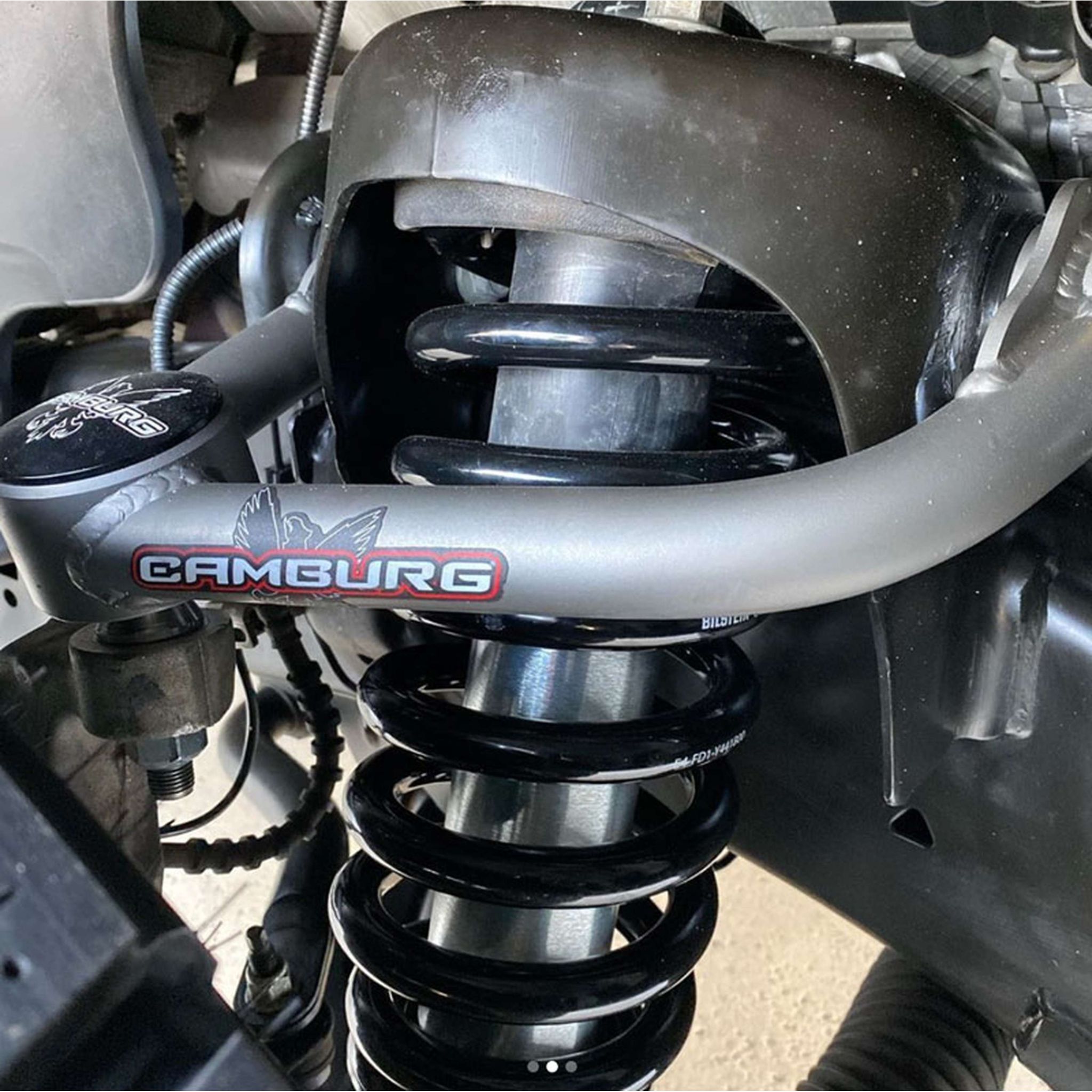

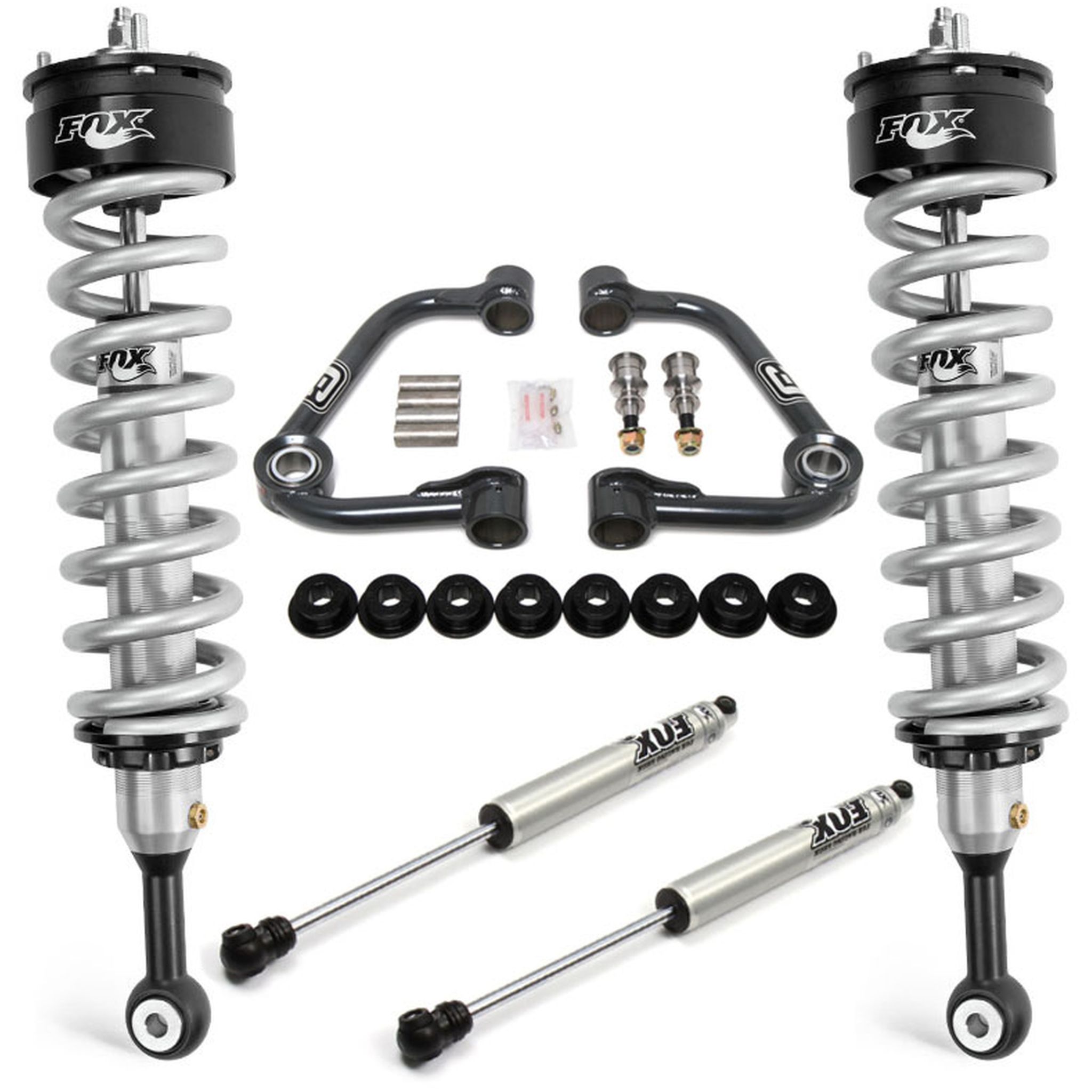

The Camburg FOX 2.0 Trail Series kit is a suspension system designed for the Ford F-150. It features FOX 2.0 Performance Series IFP Coilovers that provide 0-2 inches of lift and increased wheel travel. These shocks have a durable construction with a zinc plated alloy body, billet aluminum components, and a heat treated alloy steel shaft. The kit also includes uniball upper arms that replace the stock ball-joint, improving wheel travel and strength. The arms have increased caster and a modified camber curve for better alignment and handling. A billet aluminum cover protects the uniball from dirt and contaminants. In the rear, the kit includes FOX 2.0 Performance Series shocks with a larger aluminum body for improved off-road performance. It is important to note that factory 20" wheels may not clear the upper arm and may require a wheel spacer. Aftermarket wheels with the correct offset are recommended for optimal performance and fit. This kit is not compatible with vehicles equipped with Continuously Controlled Damping (CCD) adaptive suspension, BlueCruise or PowerBoost Hybrid engines, or Tremor models. The kit provides 0-2.5" lift in the front, improved ride and handling, and is made in the USA.

Additional Attributes:

GTIN: 00888563192352
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Silver
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Silver
Maximum Lift: 2.5
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Dust Cover Caps Included: Yes
Front Shock Type: 2.0 Performance Series IFP Coilovers
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 2.5
Load Rate: N/A
Prop 65 Y/N: No

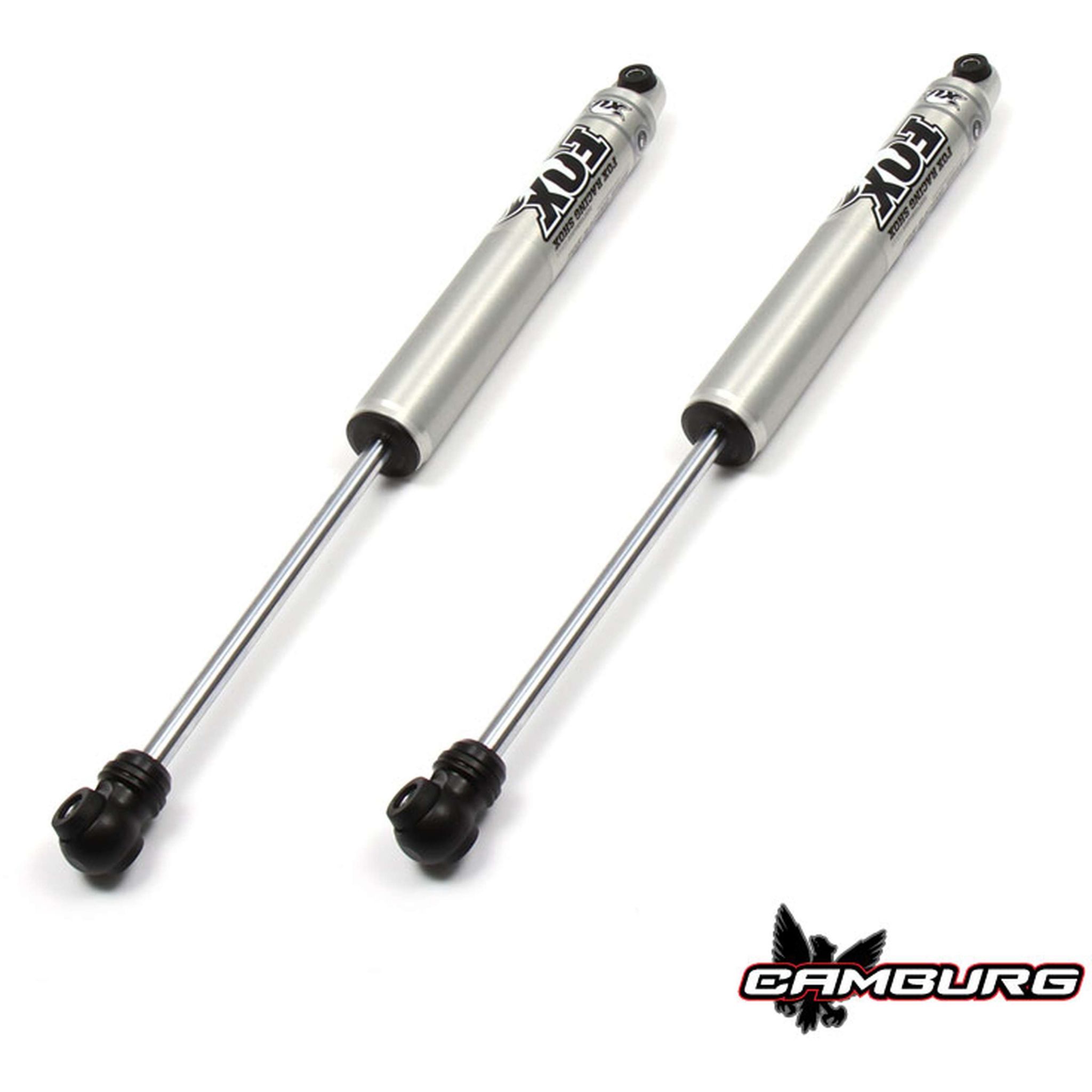

Rear Shock Type: 2.0
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: FOX
Spring Load: N/A
Spring Rate: N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:

PDF:

CAM-110210
