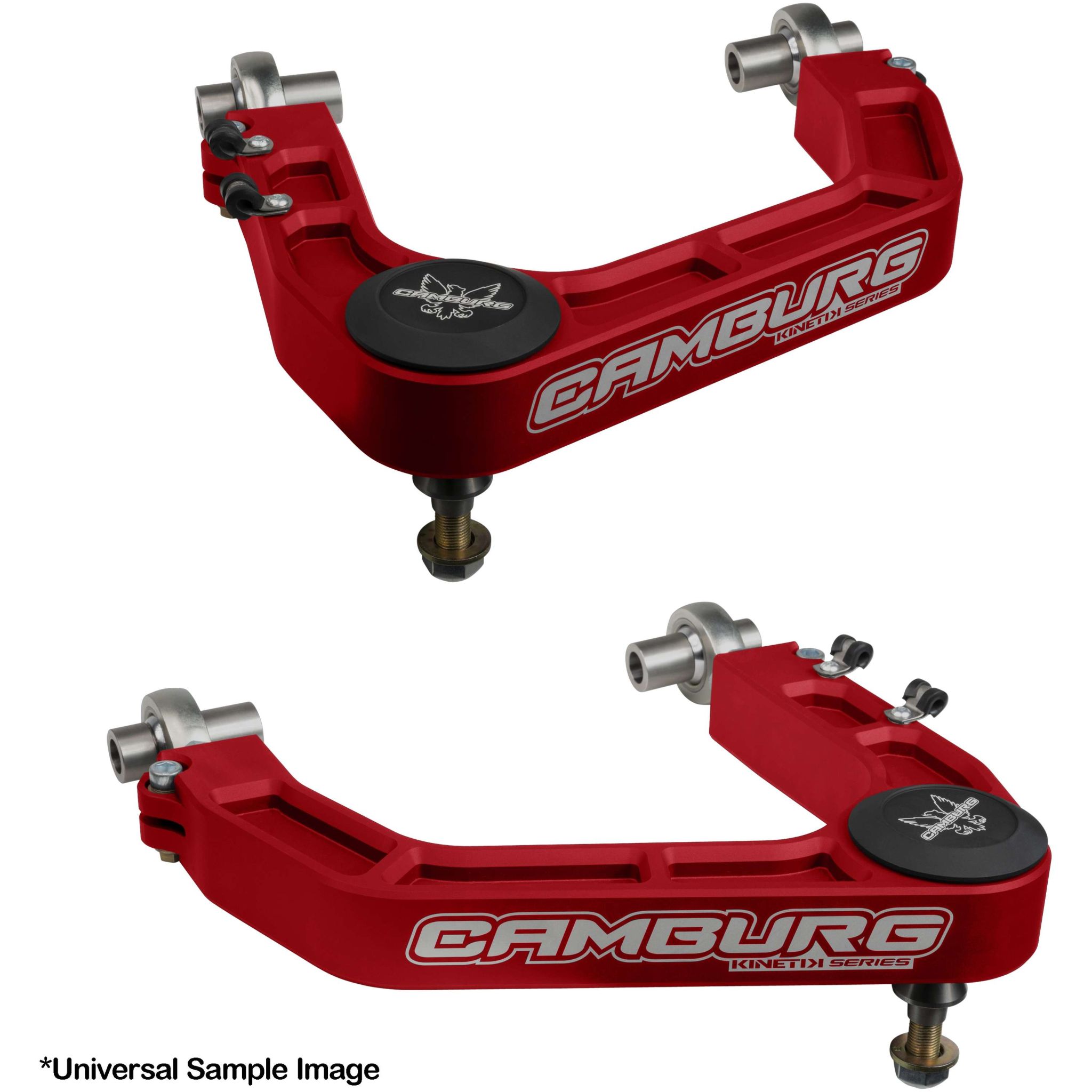

Camburg Engineering 2025 4Runner | 2024-2025 Tacoma | 2022-2025 Land Cruiser 300 | 2024-2025 Land Cruiser 250 | 2022-2025 Lexus LX600 | 2024-2025 GX550 Red KINETIK Series Uniball Control Arm Kit CAM-310194-RED

These arms are meticulously designed and crafted using CAD and CNC machining. They are made from aerospace quality 6061 billet aluminum and undergo bead blasting, Type II anodizing, and laser etching for a sleek red finish with our Camburg logo. The larger FK 1.25" uniball with a PTFE liner provides increased strength and mis-alignment for maximum wheel travel. The arms are made in the USA and are superior to cheaper imports. Model specific spacers machined from heat-treated stainless steel adapt the uniball to the spindle/knuckle without drilling or modifications. The 1.25" uniball allows for a larger bolt with a low profile press-on cap to resist the elements. The use of FK 7/8" chromoly heim joints allows for additional camber and caster adjustment while eliminating flexing/deflection and binding. AN/Mil-spec hardware, including a single pinch bolt and secondary jam nut, ensures secure heim joint performance in off-road conditions. The new V2 design increases usable wheel travel, corrects camber and caster, and eliminates weak factory ball-joints. All necessary hardware is included for installation. These arms are designed for 1-3" of lift.

Additional Attributes:

GTIN: 00888563199184
Pre-Assembled: Yes
Reinforced: No
Pre-Greased: No
Grease Fitting Included: No
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Included: Yes
Control Arm Construction: CNC Machined
Control Arm Material: 6061-T6 Billet Aluminum
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Red
Bushing Material: 4130 Chromoly
Attachments Included: No
Ball Joint Cover Included: Yes
Ball Joint Type: Uniball
Cap Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Prop 65 Y/N: No
Set: Yes
Suspension Type: Performance

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:

PDF:

CAM-310194-RED
