Camburg Engineering 2010-2024 4Runner | 2010-2014 FJ Cruiser FOX 2.0 Performance Lift Kit CAM-310120-U

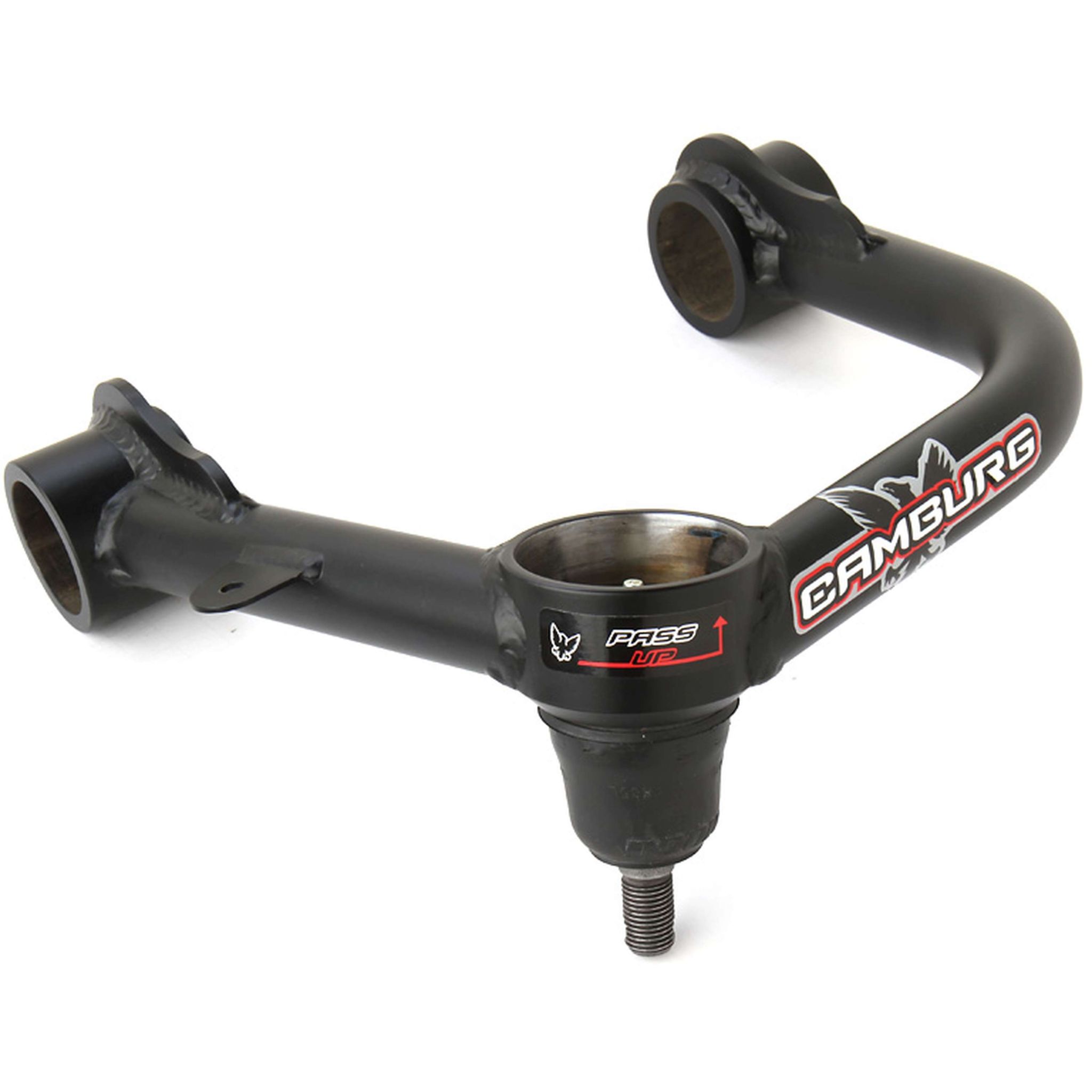

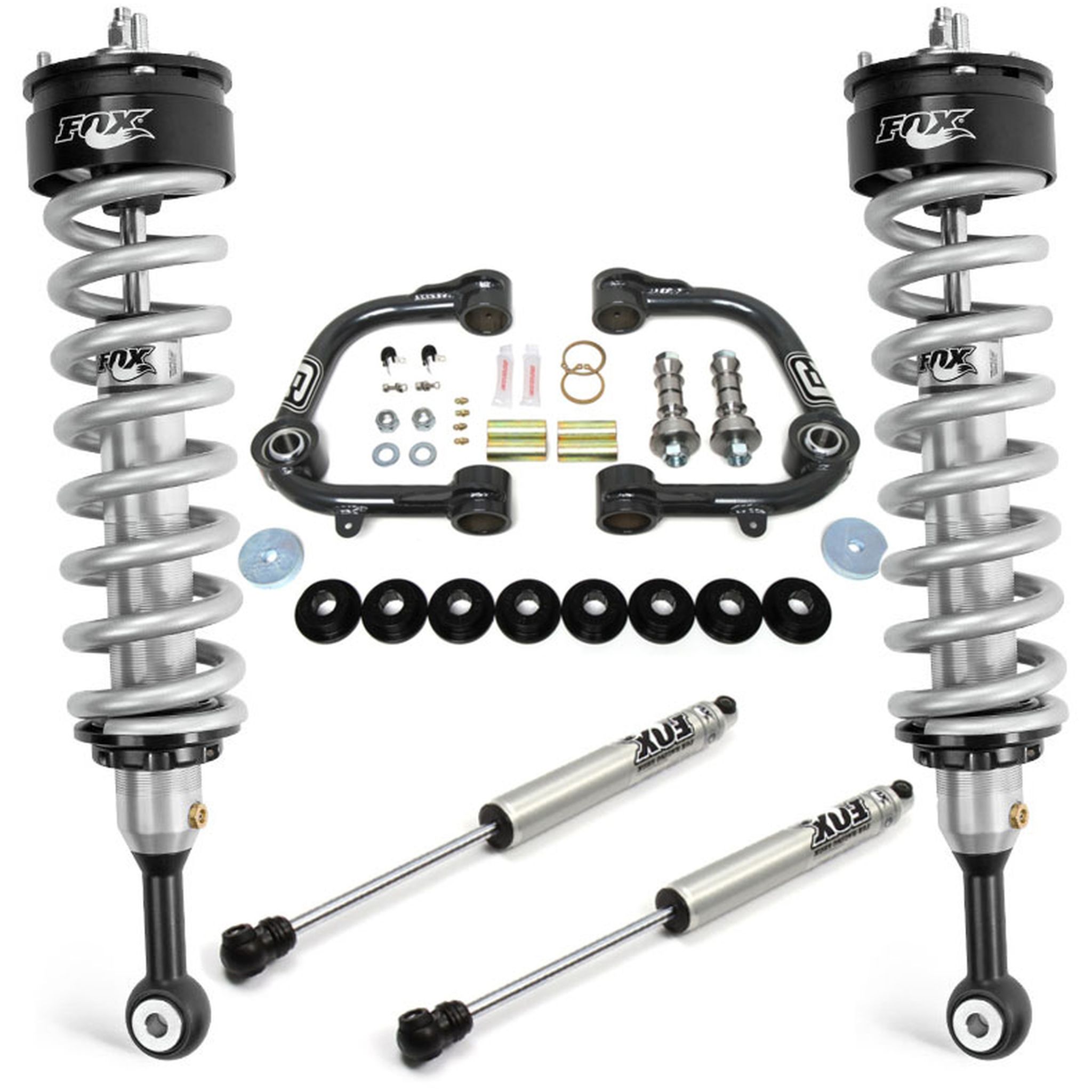

Our Camburg FOX 2.0 Trail Series kit is a suspension system for Toyota 4-Runner. It includes FOX 2.0 Performance Series IFP Coilovers for 0-2 inches of lift and increased wheel travel. The shocks have a smooth-bore, clear coated, zinc plated, honed seamless alloy body, black anodized 6061-T6 billet aluminum components, and a 5/8" hard chrome plated heat treated alloy steel shaft. They also have an internal reservoir design to separate shock oil from high-pressure nitrogen. The kit also includes upper arms to address limitations of stock arms, with options for tubular uniball or tubular X-joint arms. These arms increase wheel travel, improve strength, and correct geometry for better alignment and handling. In the rear, the kit includes FOX 2.0 Performance Series shocks with a larger aluminum shock body for better performance offroad and a firmer ride. For X-Reas equipped models, the short hydraulic hoses connecting to the OEM shocks need to be removed and drained. Depending on various factors like wheel size, tire size, lift amount, etc., trimming of plastic inner fenders and modification of the body mount behind the front tires may be required to prevent tire rubbing.

Additional Attributes:

GTIN: 00888563194318
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Silver
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Silver
Maximum Lift: 2
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Joint Cover Included: No
Control Arm Type: Tubular
Dust Cover Caps Included: No
Front Shock Type: 2.0 Performance Series IFP Coilovers
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 2
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 2.0
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: FOX
Spring Load: N/A
Spring Rate: N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:

PDF:

CAM-310036
