Camburg Engineering 2003-2009 Lexus GX470 FOX 2.5 Performance Lift Kit CAM-310156-UC

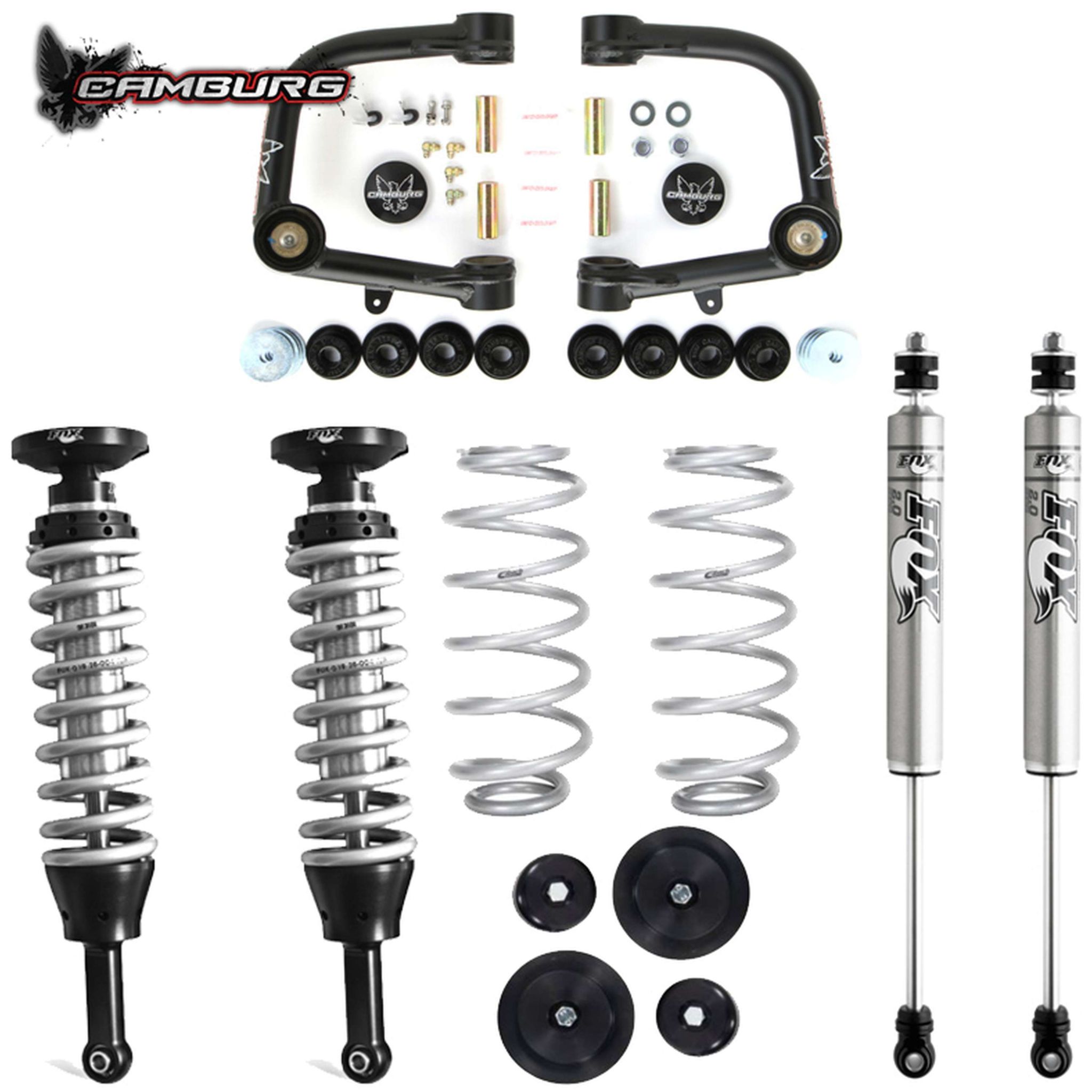

Our FOX 2.5 Performance kit is a great mid travel kit for your Lexus GX470 using FOX’s 2.5 coilovers, 2.0 rear shocks with our Camburg upper arms and Eibach rear coil spring conversion. FOX 2.5 Factory Series IFP Coilovers are valved specifically for your application, we are able to gain 0-3 inches of lift and increase wheel travel as well. These Factory Series shocks feature a smooth-bore, clear coated, zinc plated, honed seamless alloy body, black anodized 6061-T6 billet aluminum components, a 7/8? hard chrome plated heat treated alloy steel shaft and an internal reservoir design to separate shock oil from the high-pressure nitrogen. FOX direct replacement shocks deliver race-winning performance in a simple direct replacement bolt on shock. Each application has been rigorously tested by FOX engineers to maximize suspension travel and performance on and off the road. These 2.5 coilovers are designed to be used with our Camburg upper arms for maximum useable wheel travel and performance. After lifting your truck, the stock upper arms become the limiting factor and hold back your suspensions performance. Our upper arms address these issues and more.  Replacing the arms increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. You have the option of our X-joint, uniball or billet series arms. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling. For more info on all our arms, check out their individual product pages to help make your choice. In the rear we convert to a coil spring which dramatically improves the ride and load capacity. The factory airbag suspension system is prone to failing and performing poorly off-road. The Eibach springs lift it 2? over stock with a pair of FOX’s 2.0 Performance Series shocks.

Additional Attributes:

GTIN: 00888563194943
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Silver
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Silver
Maximum Lift: 3
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 2
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Dust Cover Caps Included: Yes
Front Shock Type: 2.5 Factory Series IFP Coilovers
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 3
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 2.0
Rear Shocks Included: Yes
Rear Springs Included: Yes
Shock Brand: FOX
Spring Load: N/A
Spring Rate: N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:

PDF:

CAM-310130
