Camburg Engineering 2003-2009 4Runner | 2007-2009 FJ Cruiser FOX 2.0 Performance Lift Kit CAM-310121-U

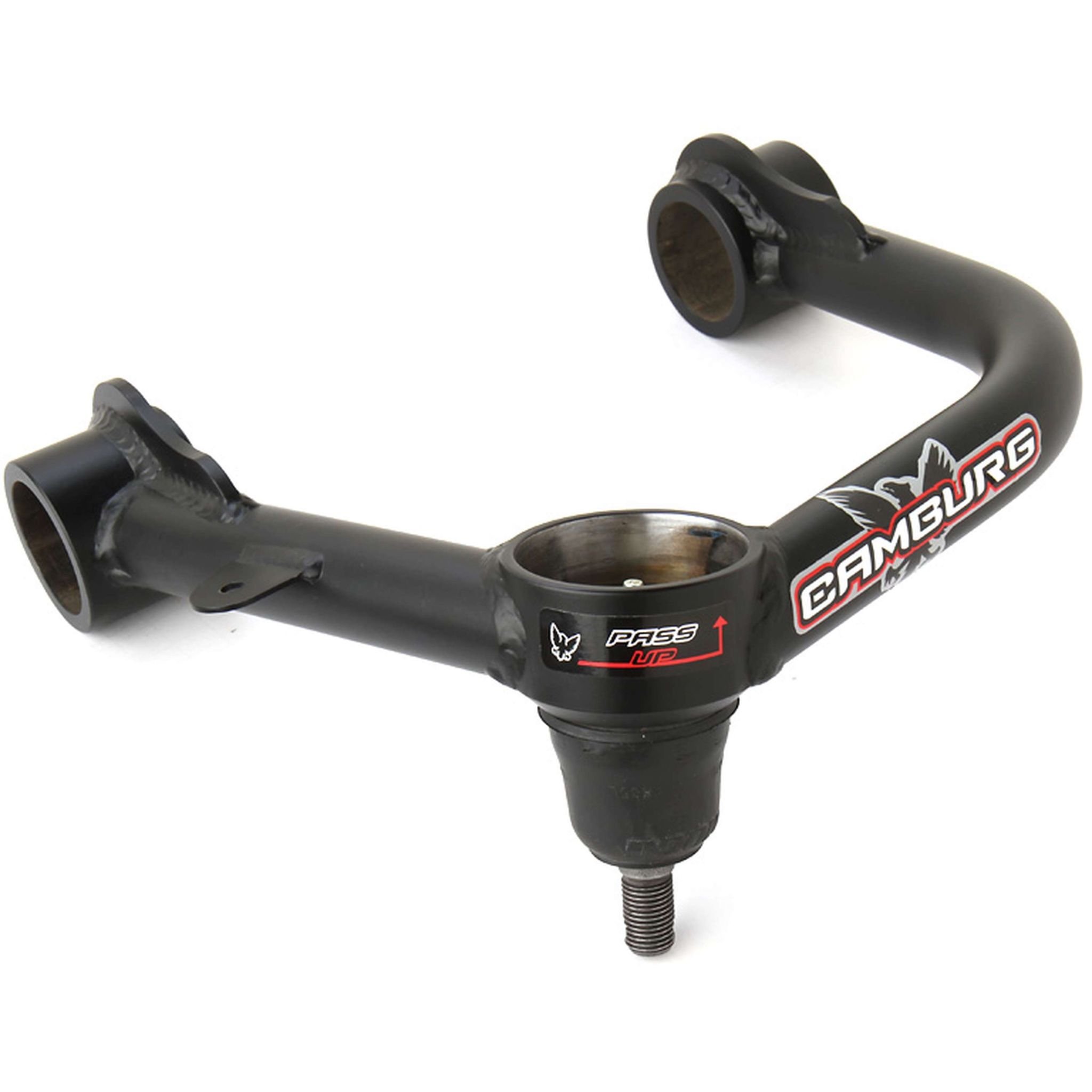

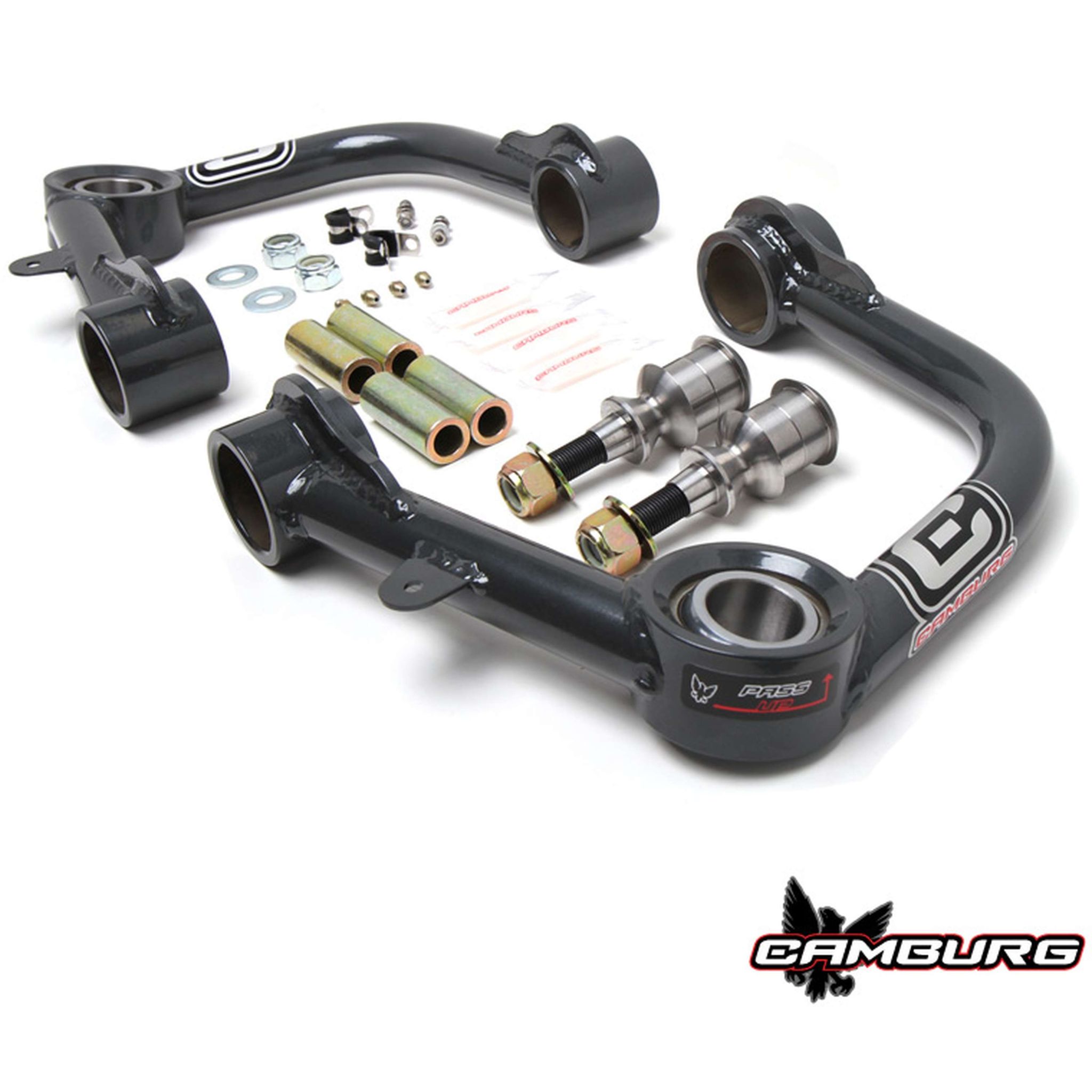

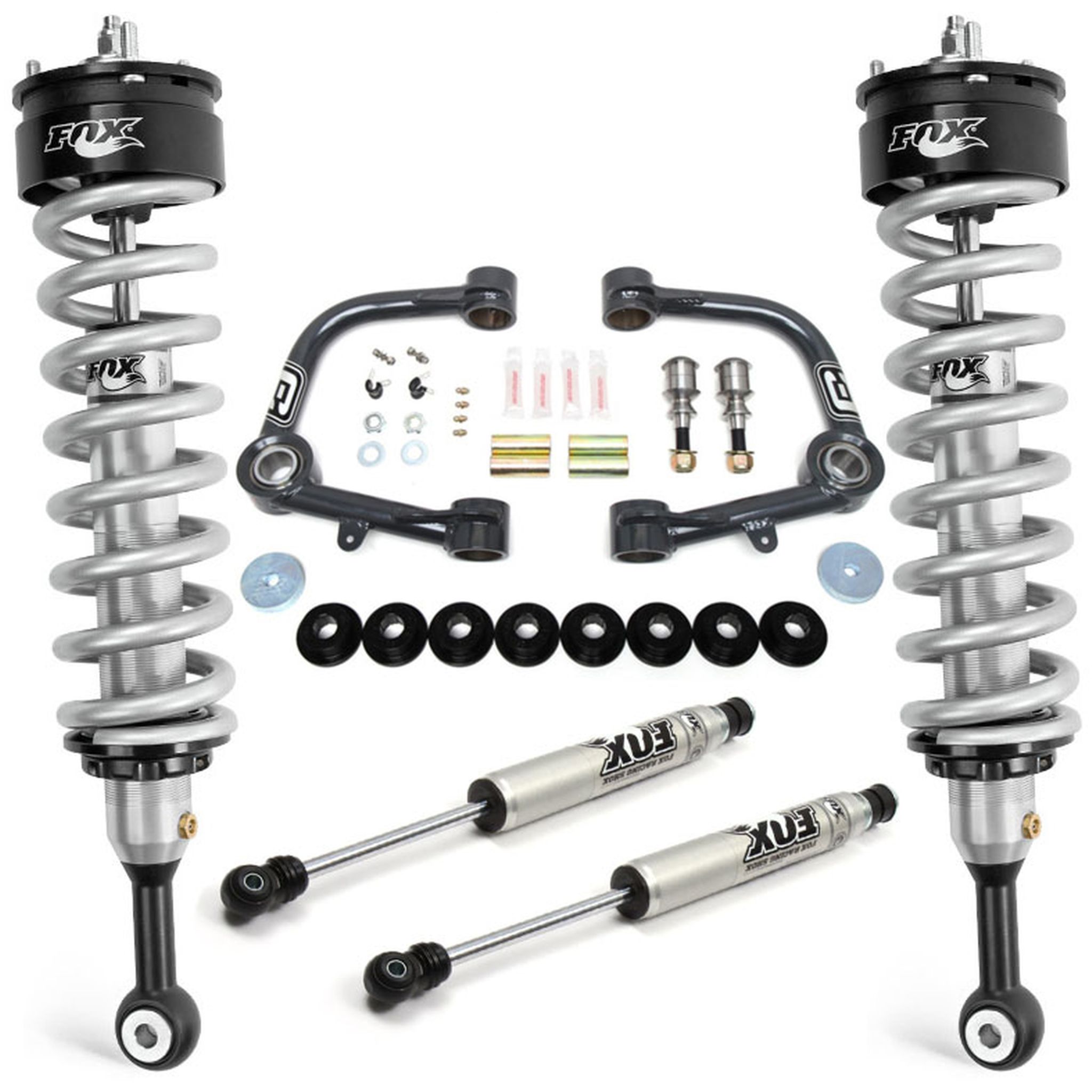

Our Camburg FOX 2.0 Trail Series kit is a suspension system for Toyota 4-Runner. It includes FOX 2.0 Performance Series IFP Coilovers for 0-2 inches of lift and increased wheel travel. The shocks have a smooth-bore, clear coated, zinc plated, honed seamless alloy body, black anodized 6061-T6 billet aluminum components, and a 5/8" hard chrome plated heat treated alloy steel shaft. They also have an internal reservoir design to separate shock oil from high-pressure nitrogen. The kit also includes upper arms to address limitations of stock arms, with options for tubular uniball or tubular X-joint arms. These arms increase wheel travel, improve strength, and correct geometry for better alignment and handling. In the rear, the kit includes FOX 2.0 Performance Series shocks with a larger aluminum shock body for better performance offroad. For X-Reas equipped models, the short hydraulic hoses connecting to the OEM shocks need to be removed and drained.

Additional Attributes:

GTIN: 00888563194349
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Silver
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Silver
Maximum Lift: 2
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Dust Cover Caps Included: No
Front Shock Type: 2.0 Performance Series IFP Coilovers
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 2
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 2.0
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: FOX
Spring Load: N/A
Spring Rate: N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:

PDF:

CAM-310036
