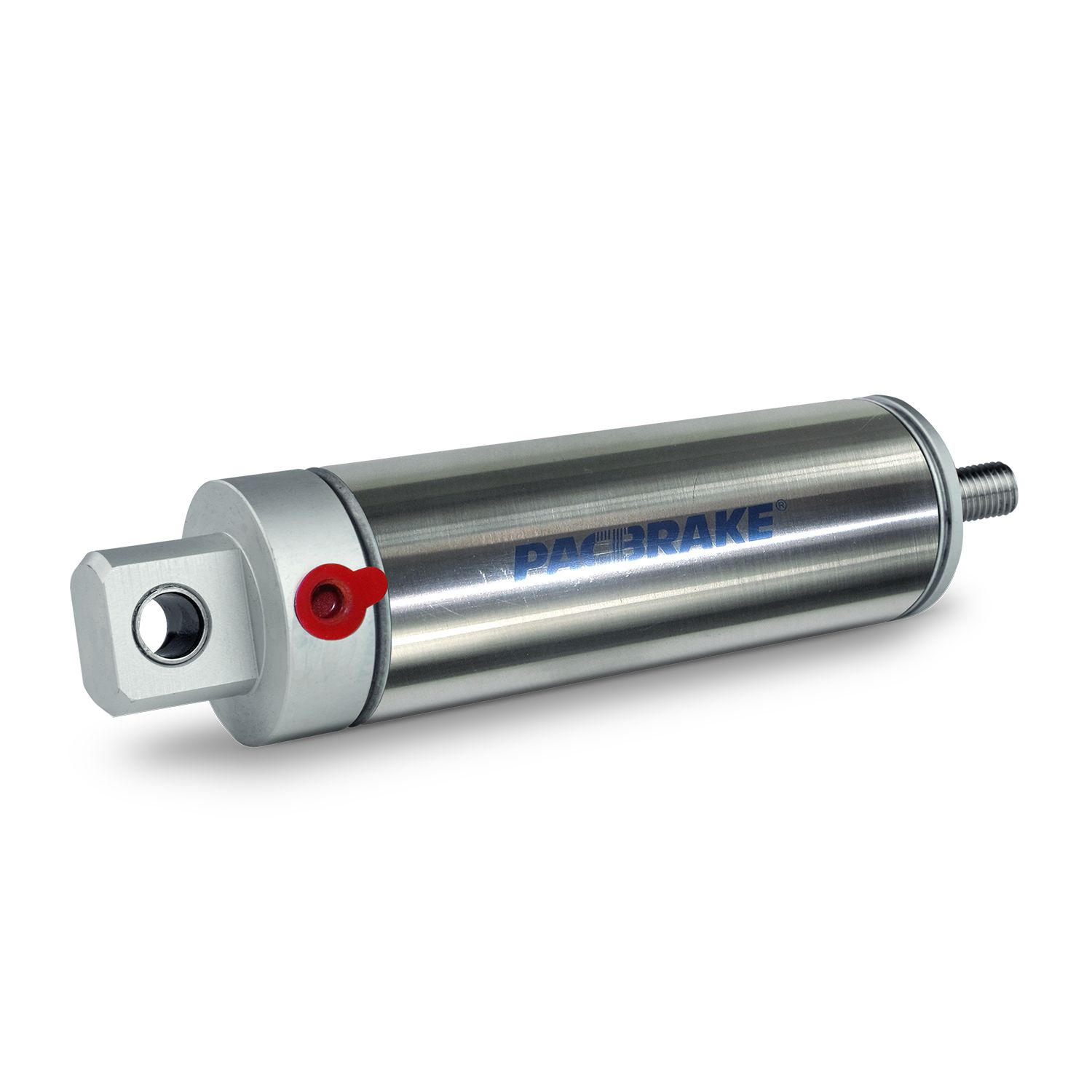

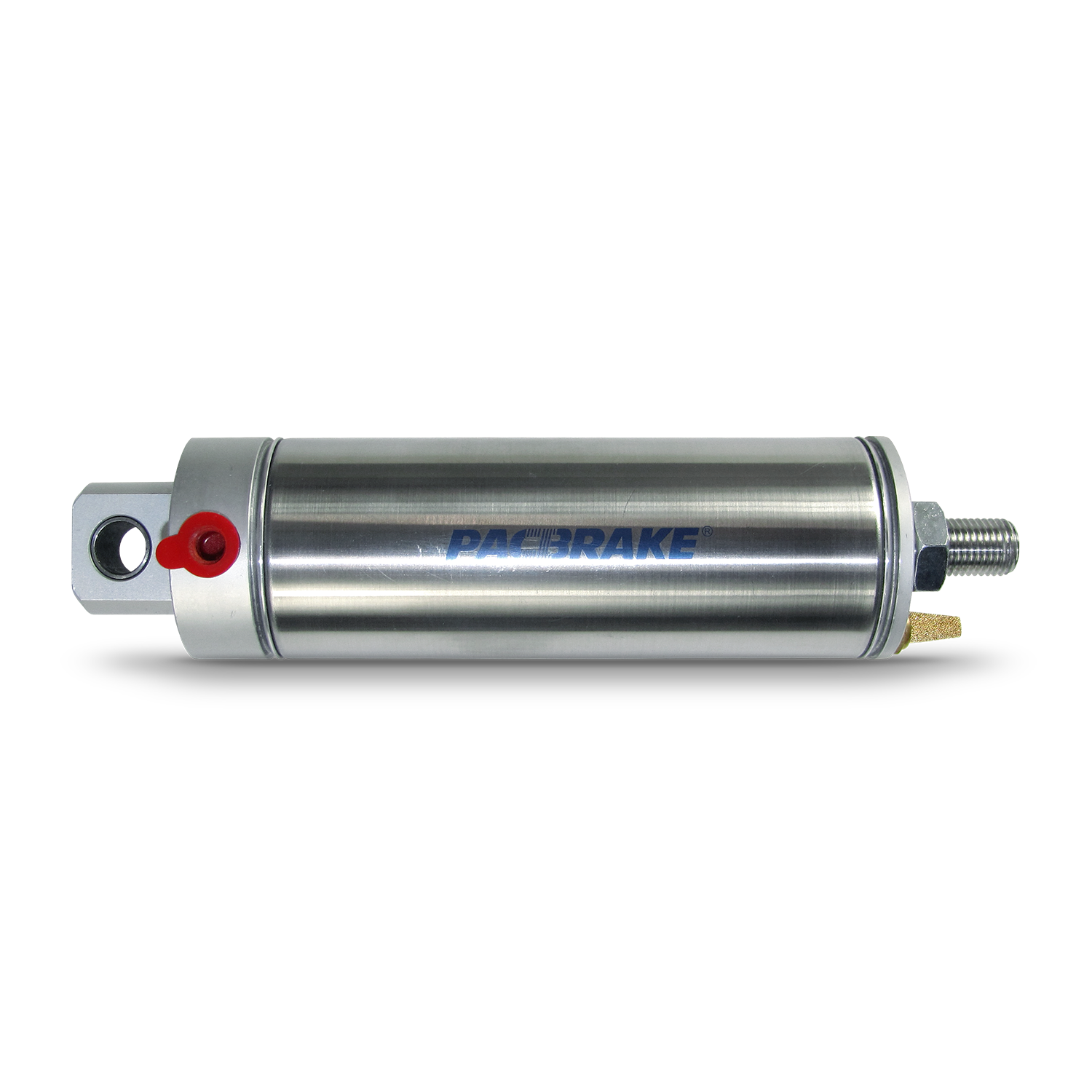

C11596 Pneumatic Single Acting Cylinder

C11596 Pneumatic Single Acting Cylinder

  • Spring return, normally retracted
  • Clear Anodized, front & rear end caps
  • Clevis mount
  • Operating pressure 100-150 psi
  • Buna HBNR seal
  • Replacement Part (Non-repairable)
SKU FQCM-C11596 Category

Le prix initial était : $ 304.47.Le prix actuel est : $ 274.03.

Constructed with a stainless steel body and shaft, these actuators have excellent corrosion resistance enabling them to withstand demanding conditions. Single acting cylinders are designed with return springs which can act as both a simpler method of control, as well as a fail-safe measure.

Additional Attributes:

GTIN: 00628480001890
Cylinder Body Material: AISI 304 Stainless Steel
Fitment: Universal
Operating Pressure: 100-150
Piston Material: 6061-T6 Aluminum
Prop 65 Y/N: N

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Released

Packaging:

Quantity of Each: 1
Package UOM: BX
Dimension: 8 x 6 x 4 inches
Weight: 2 PG

PDF:

Information complémentaire

Poids0.91 kg
Dimensions8 × 6 × 4 cm
