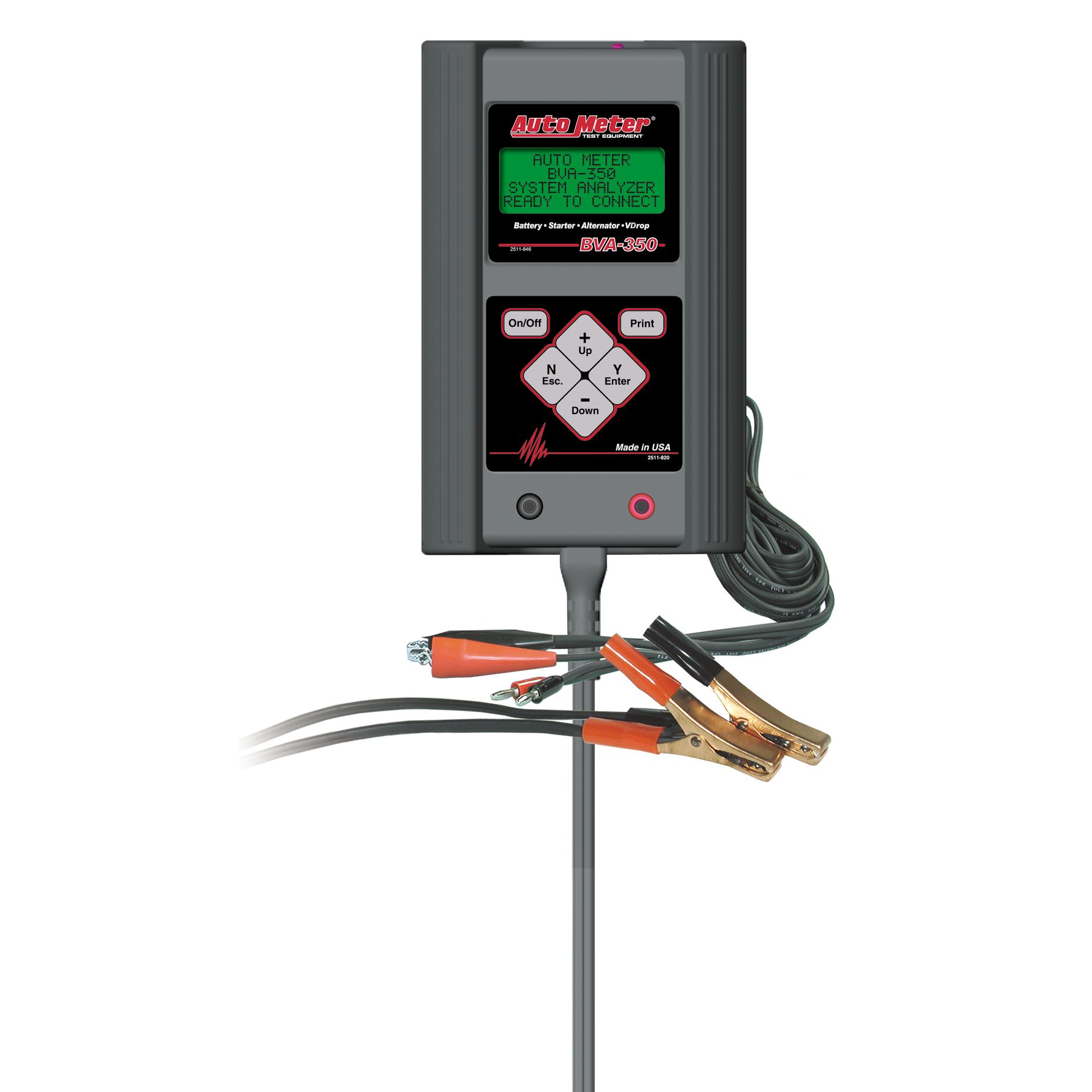

BVA-350; Technician Grade Intelligent Handheld Automotive/ Heavy Duty Truck Electrical System Analyzer For 6V & 12 Applications

Tests flooded, deep cycle, and AGM batteries with CCA range of 100-1600 – also detects discharged batteries, bad cells, and has built in reverse polarity protection.

• Tests flooded, deep cycle, and AGM batteries with CCA range of 100-1600 – also detects discharged batteries, bad cells, and has built in reverse polarity protection.
• Intuitive menu driven operation, transmitted via back lit LCD screen for ease of use.
• V-Drop Technology – This unique AutoMeter feature utilizes a patented process to automate the measurement of voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance.
• Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 40 amp True Load cell.
• This test occurs with minimal operator effort in the short period of time required for the engine to crank over and fire.
• This eliminates the need to apply inconsistent loads, such as headlights, fans, etc.
• Autometers V-Drop Technology Prevents The Need To Connect Additional Probes And/Or Disable Ignition Or Fuel Systems To Engage In Excessive Engine Crank Periods.
• which makes our products easier to use and more accurate.
• In the event that your AutoMeter tester equipped with V-Drop detects an issue, it will guide the operator through the diagnosis to identify which part of the circuit is causing the excessive voltage drop.
• Automatically stores the last 100 tests in memory.
• 30″ – 16 gauge leads with professional grade clamps that are easily field serviceable.
• Customer communication with optional PR-12 (external printer), PR-20 (bolt-on printer), or AC-12 (PC cable).
• English and Spanish language menus and test results.
• Battery Test Results Include: Measured True Cca, Voltage And Percent Of Charge, And The Batterys State Of Health (Good, Near End Of Life, Or Bad).

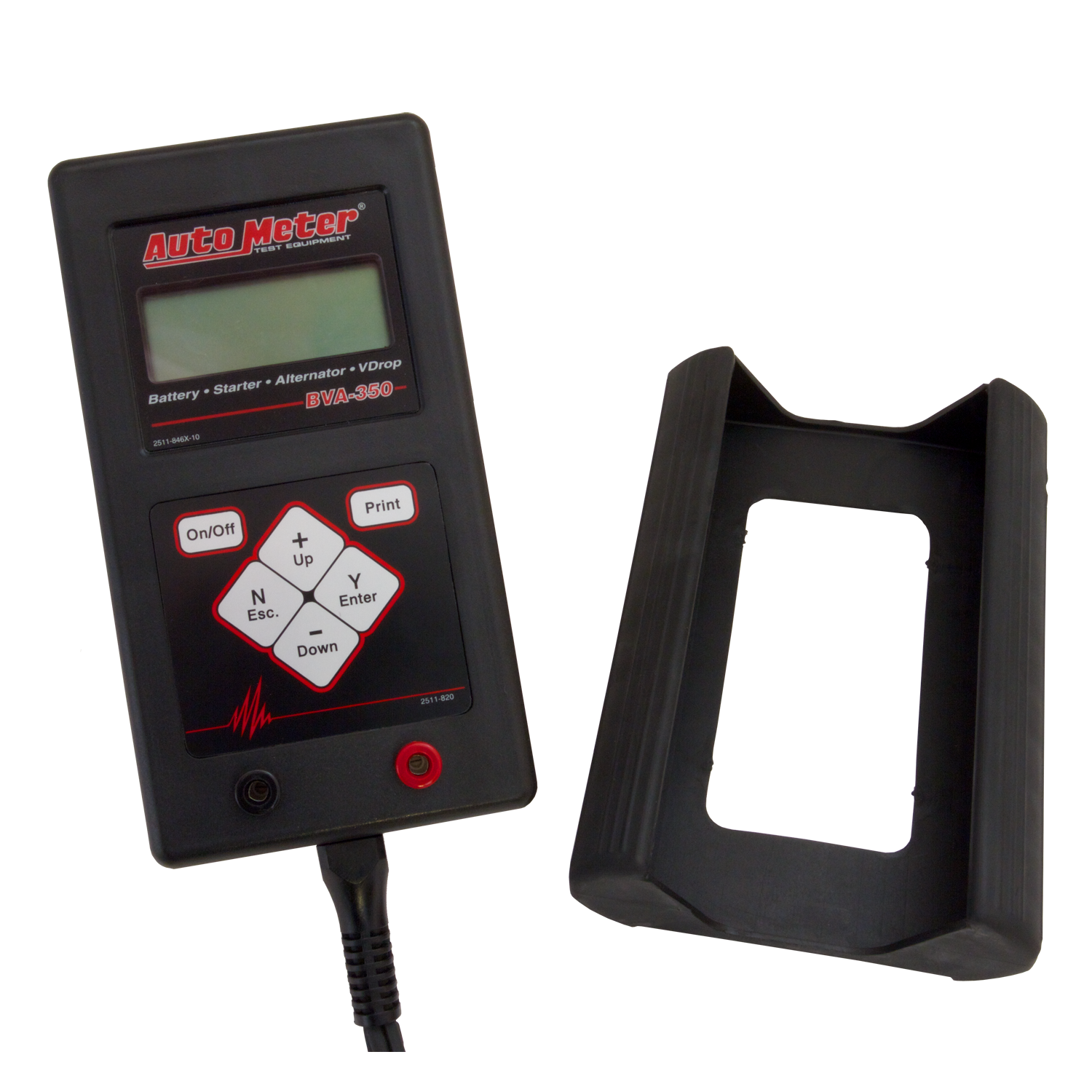

• Perfect tool box tester! Rugged engineered composite housing with protective rubber boot for years of service.
