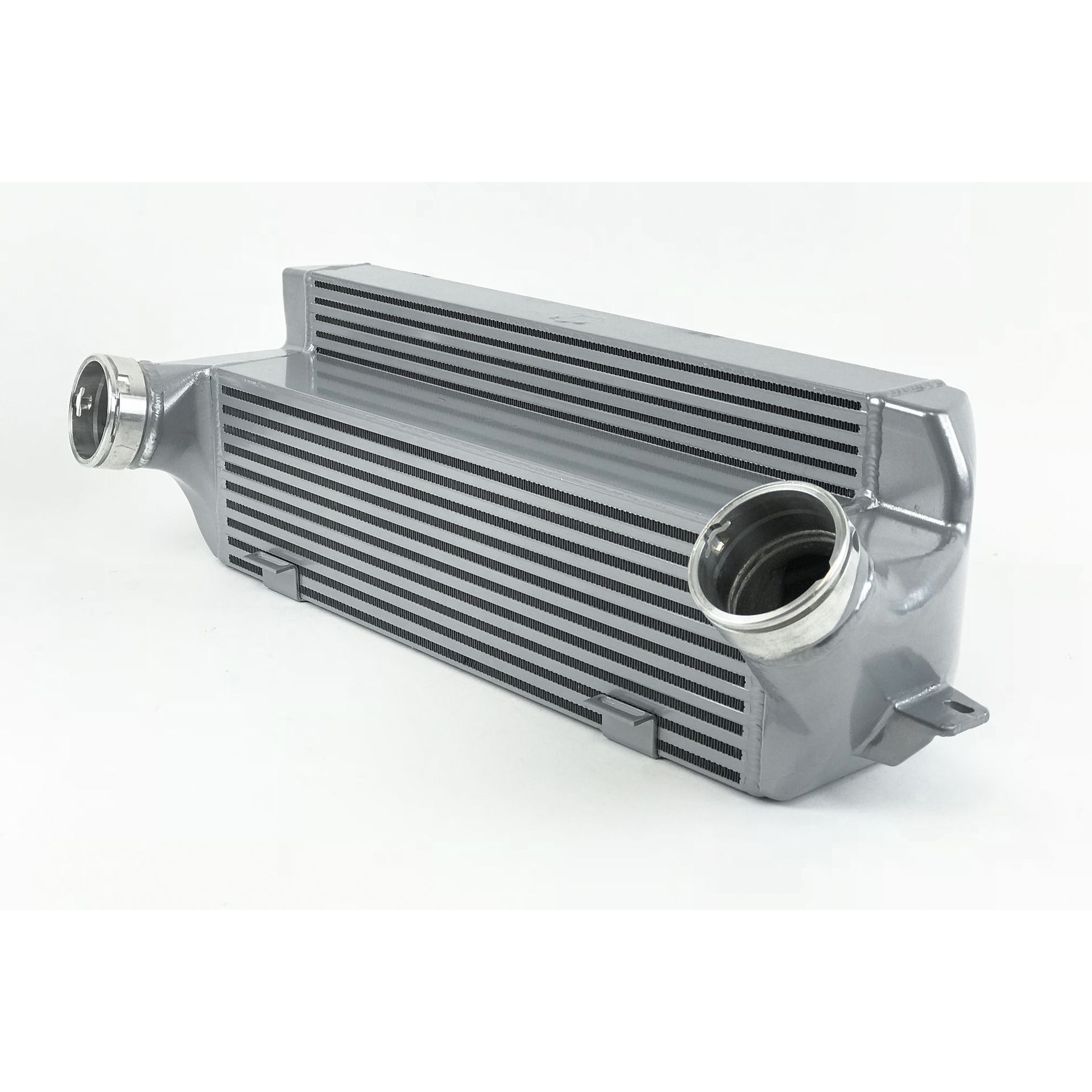

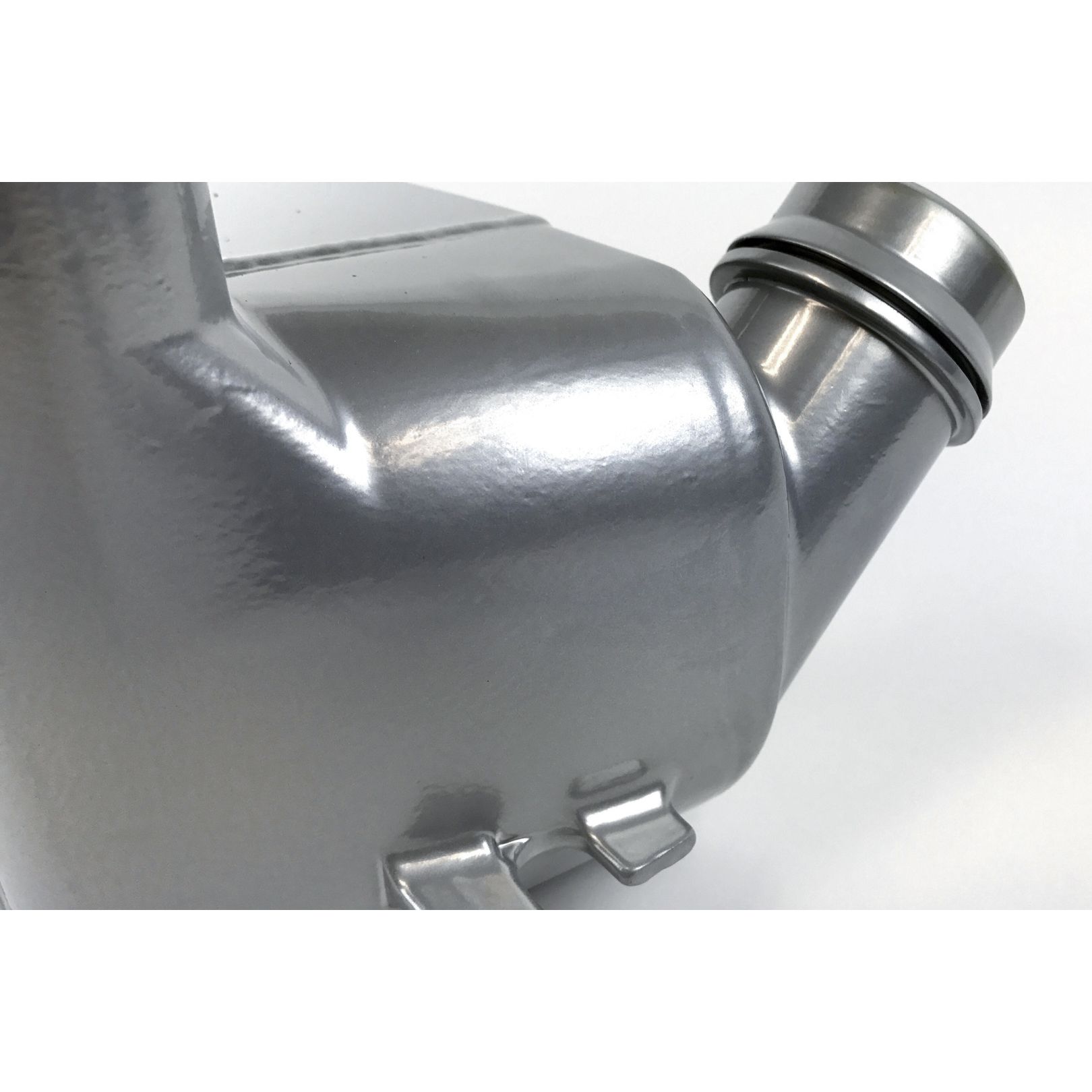

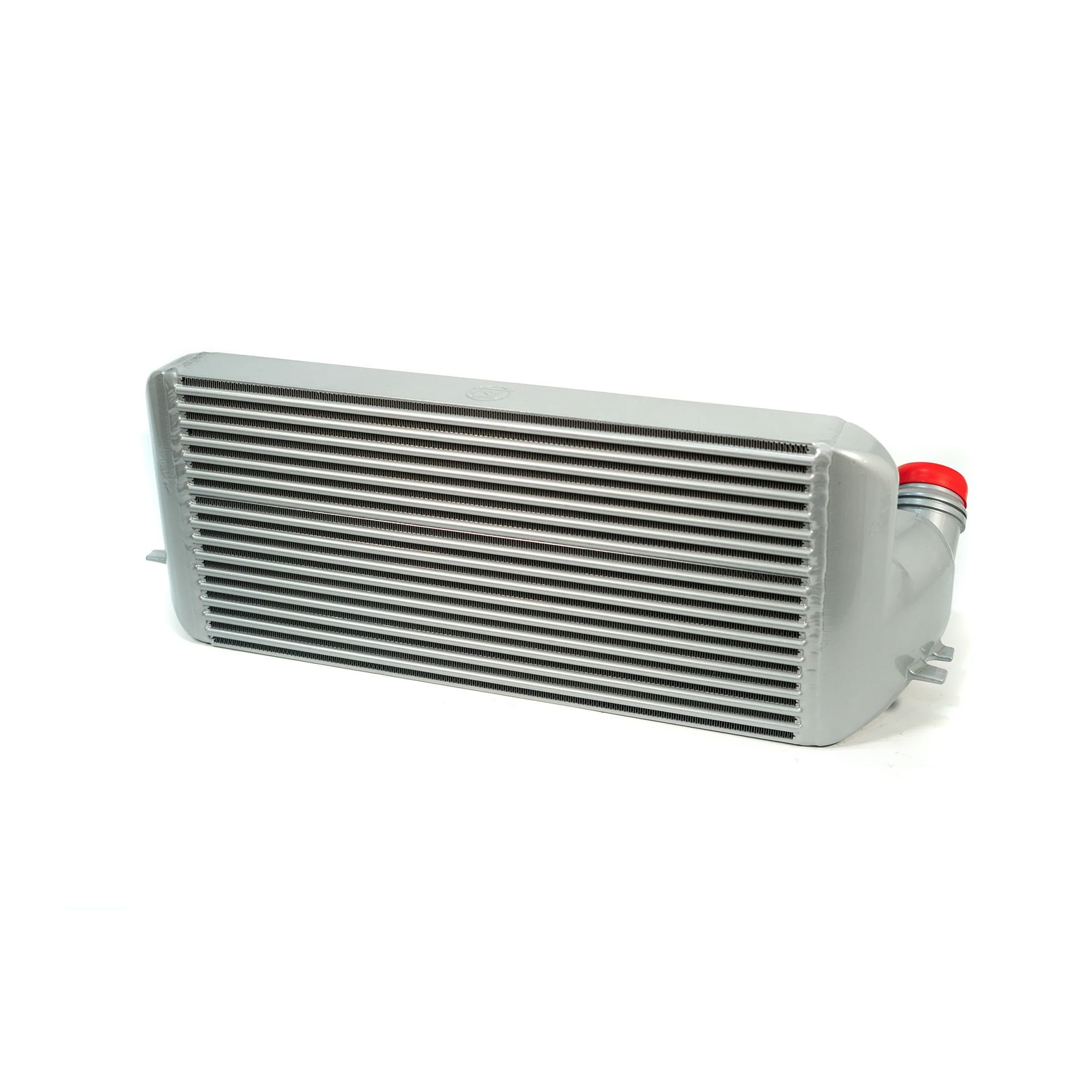

BMW F87 M2 / F3X / F2X (N55) High-Performance Stepped Core Intercooler – Silver

The CSF N55 Intercooler's Stepped Core Design maximizes surface area contact and internal intake air-flow volume. The Rounded Front Face Bar/Plate Design optimizes airflow through the core and is a true "Drop-in Fit" Plug-and-Play Design. In testing the CSF Intercooler showed Intake Air Temperatures (IATs) that were 38 deg F (21 deg C) lower than factory after just 3 consecutive pulls from 4k RPM to 5.8K RPM. In that test, the CSF Intercooler maintained stable IATs. While most intercoolers don't offer immediate performance gains without increasing boost pressure, the CSF Intercooler shows an increase of 15-20hp on stock N55 Powered BMW's and 25+hp on modified examples.

Additional Attributes:

GTIN: 00710353081150
Color: Silver
Core Color: Silver
Core Length: 510mm
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 140mm
Core Width: 238mm
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: No
Outlet Fitting Gender: Male
Outlet Type: Quick Connect
Prop 65 Yes/No: No
Type: Air-to-Air
Universal Or Specific Fit: Specific

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 30 x 12 x 13 inches
Weight: 32 PG
