BMW F22/30 Chassis Performance Intercooler, 2012-2016, Silver

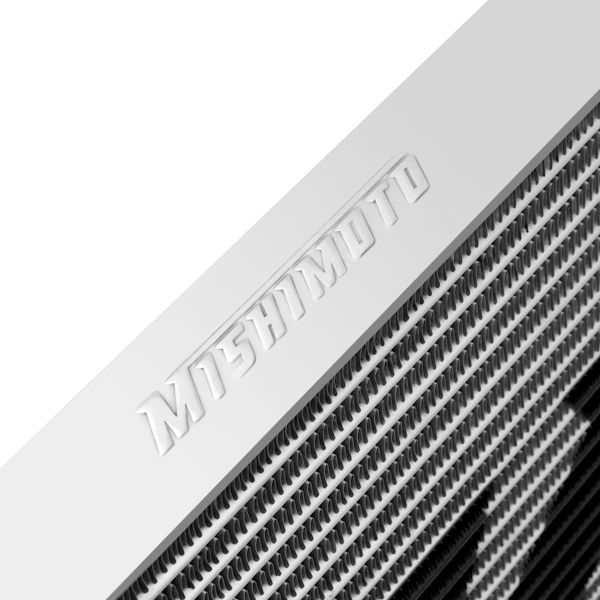

Make your Ultimate Driving Machine even more ultimate with the addition of the Mishimoto BMW 2012-2016 F22/F30 Chassis Performance Intercooler! From the factory, the N20/26 and N55 engines are a prowess of German engineering, but the stock intercooler unit poses as a weak link for your turbocharged Bimmer. The tube-and-fin design coupled with plastic end tanks makes for the perfect environment for heat to set up residence and throttle the power of your 2, 3, or 4-series, especially for those running a tune. Mishimoto is here to unlock the full potential of your N20/26 and N55 engines with our Performance Intercooler specifically designed for the F22/F30 chassis. Our unique 6? thick step-core design, adds a 115? angle to the top section to allow for additional charged air cooling without fully obstructing other heat exchangers. Tubes and fins are a thing of the past with this design as we engineered our intercooler with a bar-and-plate construction optimizing this intercooler for heat dissipation with minimal pressure drop. Coupled together, our features were able to drop intercooler outlet temperatures by 45?F, and add 10 whp and 8 wtq all on the stock tune of our 2017 M2 test vehicle. The BMW F22/F30 Performance Intercooler is available in Silver or Black and also includes the Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00811580033407
Install Difficulty: 3
OptionLabel: Silver
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2012-2016 BMW F22/F30 Chassis
SellingPoint02: Patent Pending
SellingPoint03: 6-in thick, angled step-core design optimized for maximum flow without fully obstructing other heat exchangers
SellingPoint04: Max power gains of 10 whp and 8 wtq on stock tuning
SellingPoint05: Drops intercooler outlet temperature by 45F on stock tuning
SellingPoint06: Optimal core design for maximum cooling efficiency with minimal pressure drop
SellingPoint07: Intercooler core volume increased my 96-percent
SellingPoint08: External fin surface area increased by 130-percent
SellingPoint09: Retains factory quick-disconnect fittings for compatibility with stock piping
SellingPoint10: Available in silver or black
SellingPoint11: Patent numberD931,337

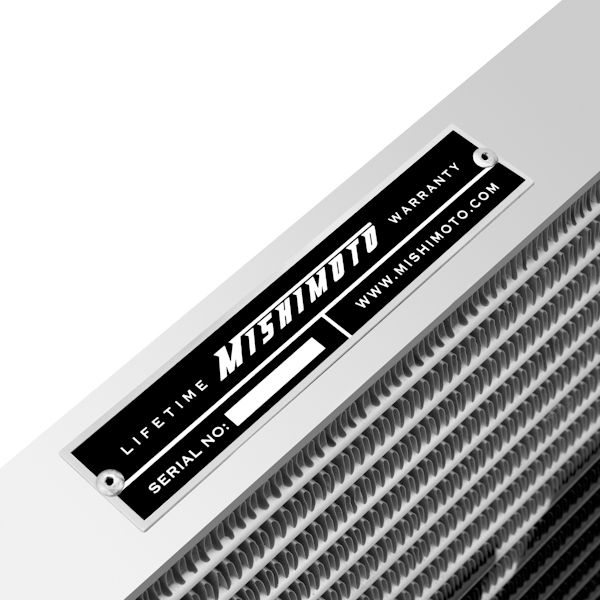

SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2014-2016 BMW 228i/228i xDrive–2014-2016 BMW M235i/M235i xDrive–2013-2016 BMW 320i/320i xDrive–2012-2016 BMW 328i/328i xDrive–2012-2016 BMW 328d/328d xDrive–2012-2016 BMW 335i/335i xDrive–2014-2016 BMW 428i/428i xDrive–2014-2016 BMW 435i/435i xDrive–2016+ BMW M2
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: F22–F23–F30–F31–F32–F33–F34–F87
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): 6
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N20–N26–N47–N55
TechSpec Includes: (1) Performance Intercooler–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: M2 owners will need to either remove or modify the front core support brace for installation. Please refer to the installation guide for proper modification instructions.
TechSpec Outlet (in): 2
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 28

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 35 x 18 x 13 inches
Weight: 49.34 PG
