BMW E46 3-Series / 03-05 E85/E86 Z4 High-Performance All-Aluminum Radiator

Fitment Note: If you are having any clearance issues between your expansion tank and any pulleys, be sure you are mounting the radiator as far forward as possible. If there is clearance between the pulley and expansion tank but you find evidence of rubbing, your engine and transmission mounts are worn out and should be replaced. This will minimize the movement of the engine and prevent rubbing under load.

Additional Attributes:

GTIN: 00710353030554
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection

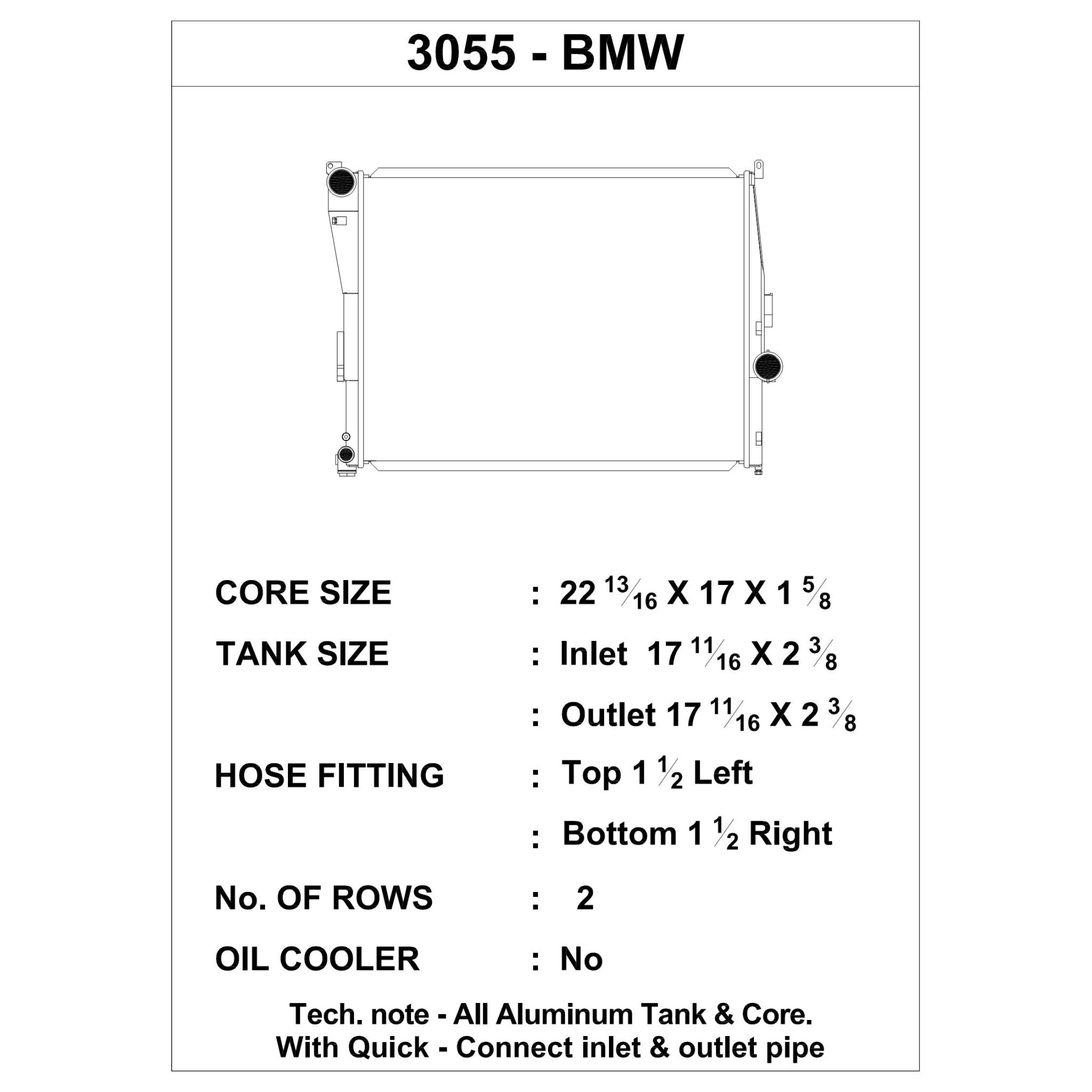

Core Height: 22.8125 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.625 in.
Core Width: 17 in.
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 1.5 in.
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 1.5 in.
Outlet Location: Bottom Right
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 29 x 6 x 21 inches
Weight: 12 PG
