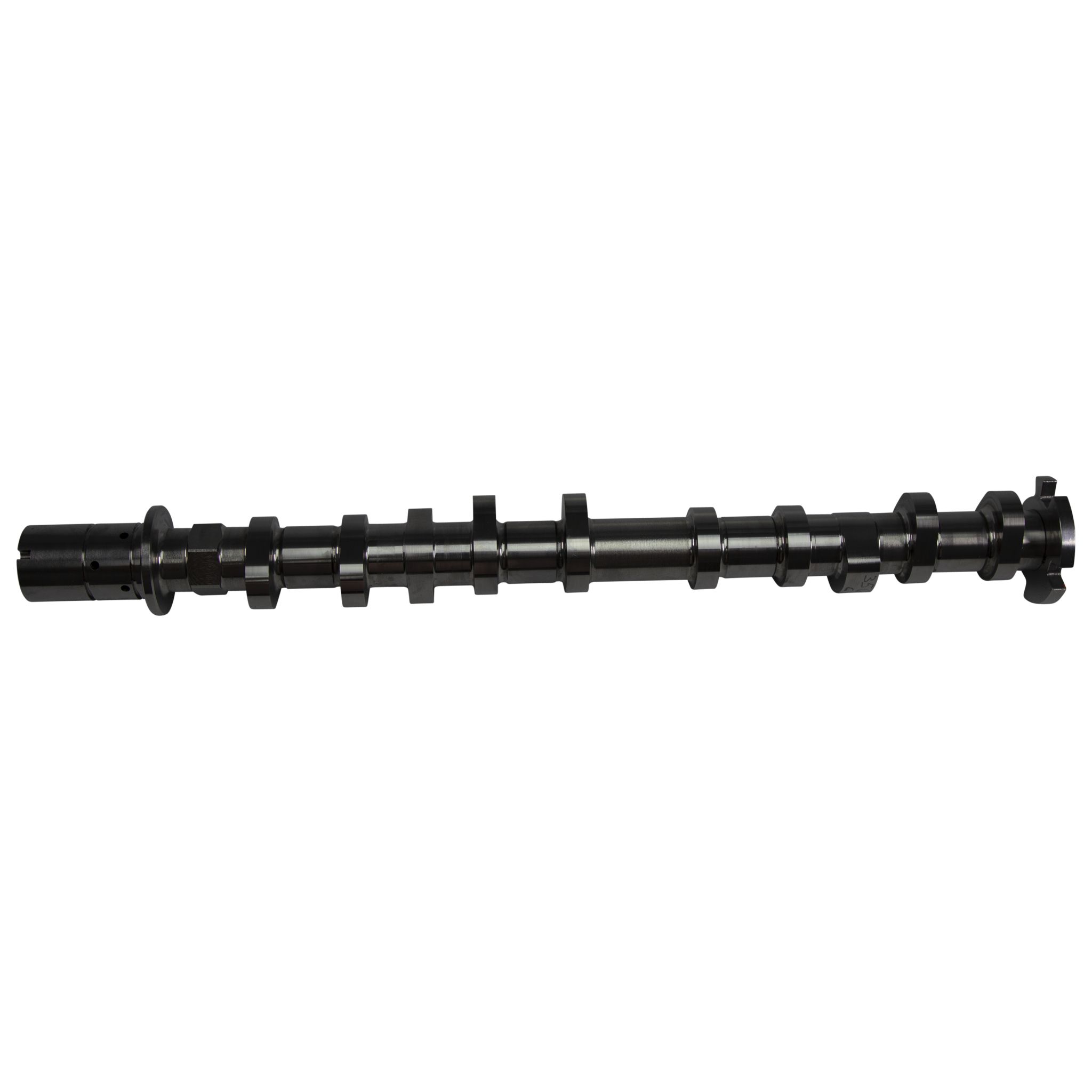

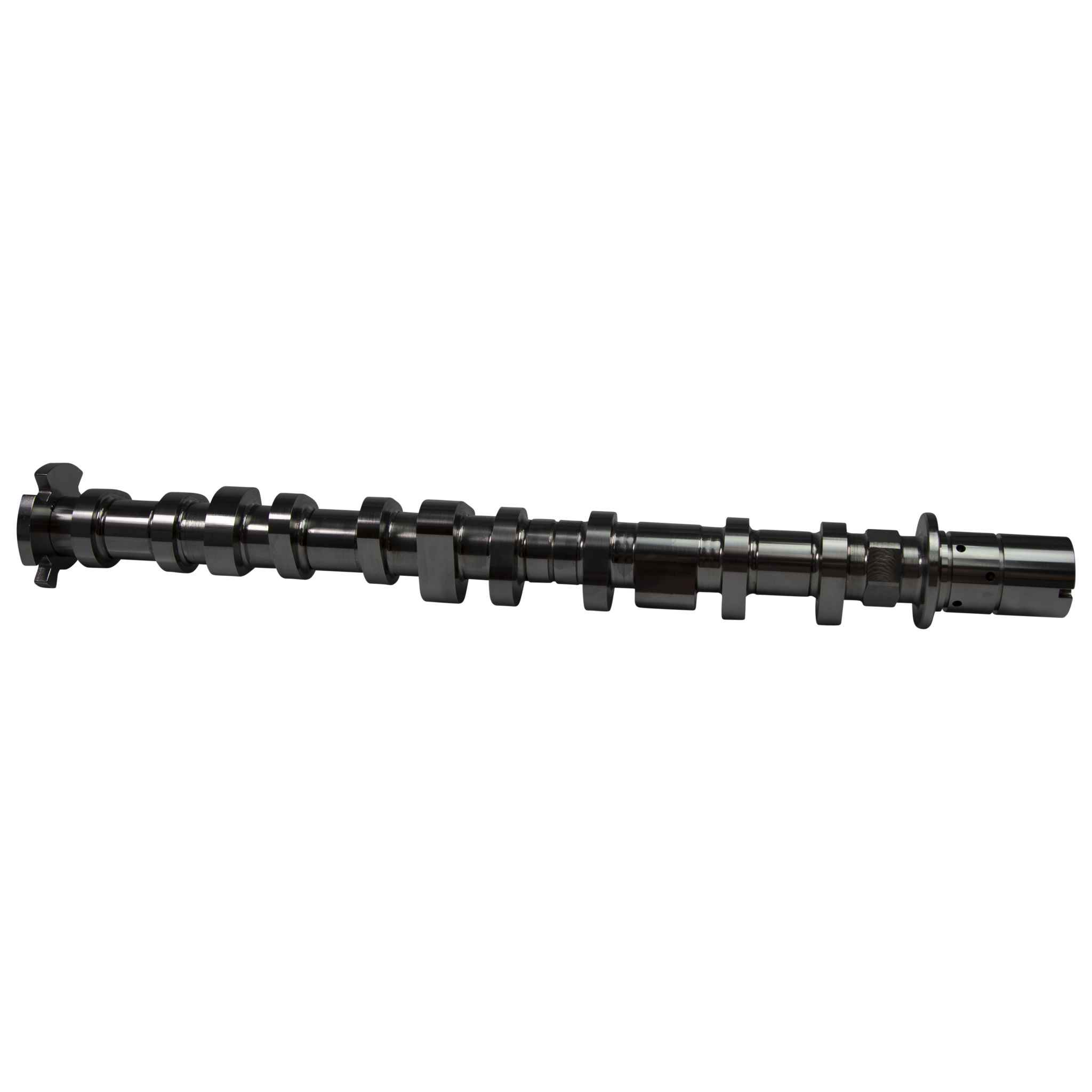

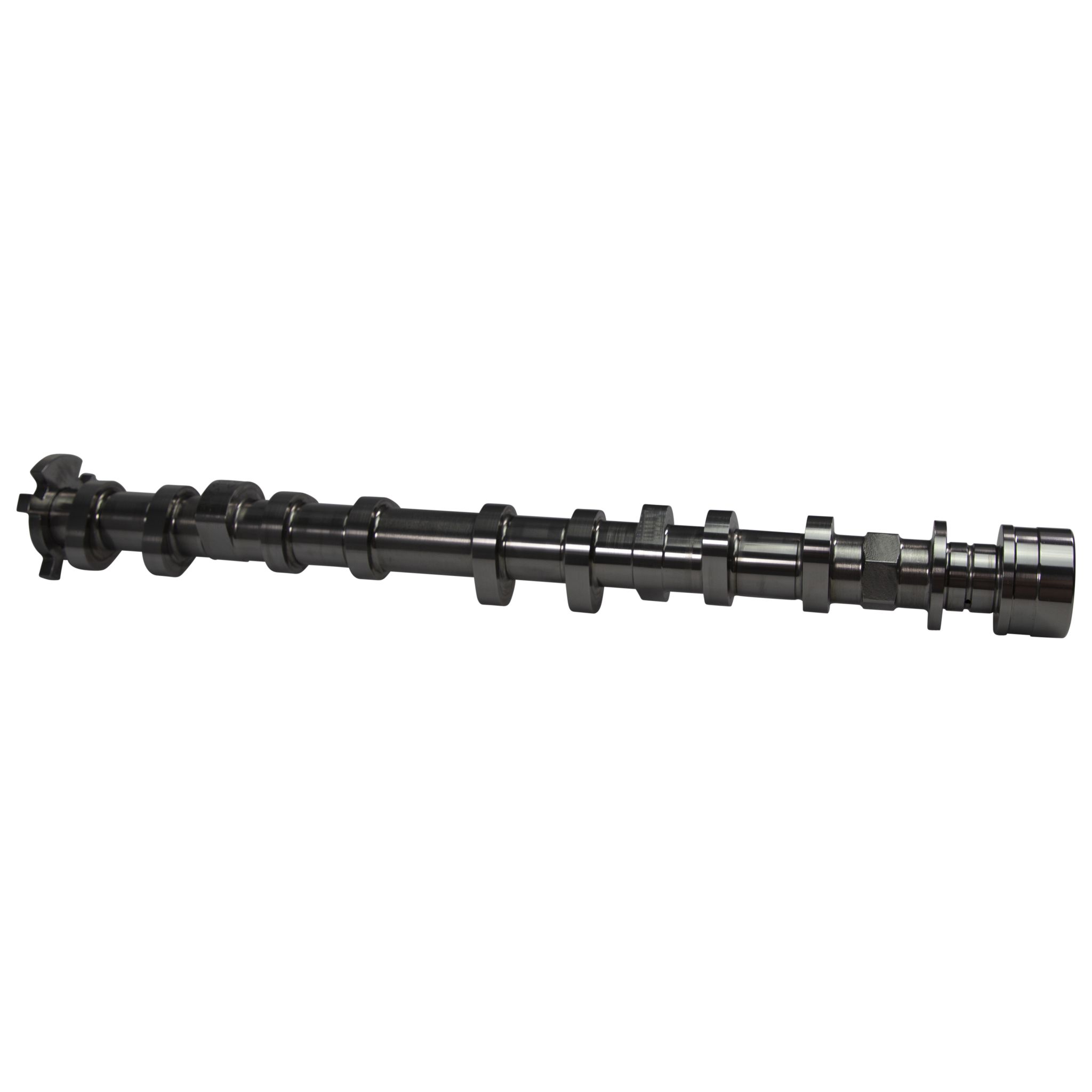

Blower and Turbo Stage 1 Camshaft Set for 2018+ Ford 5.0 Coyote

these grinds are more stable at high RPM than the factory cam profiles while also producing more power across the entire RPM range.

Additional Attributes:

GTIN: 00036584402329
Advertised Exhaust Duration: 294
Advertised Intake Duration: 280
Assembly Lubricant Included: No
Basic Operating RPM Range: 2,000-7,900
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller Finger Follower
Camshaft Material: Billet Steel
Camshaft Series: Blower and Turbo
ECU Tune Required?: Yes
Engine Family: 2018+ Ford 5.0L Coyote
Exhaust Duration at .050 inch Lift: 238
Exhaust Valve Lift: 0.58
Individual Cam Pt #s included: 433-561-11LE, 433-562-11LI, 433-563-11RE, 433-564-11RI
Intake Duration at .050 Inch Lift: 232
Intake Valve Lift: 0.58
Lobe Separation: 126
Recommended Valve Spring Kit: 26001CS-KIT and 26001T-KIT
Recommended Valve Springs: 26001-32
Stage: 1
Valve Springs Required: Yes

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 25.65 x 6.5 x 6.3 inches
Weight: 30 PG
