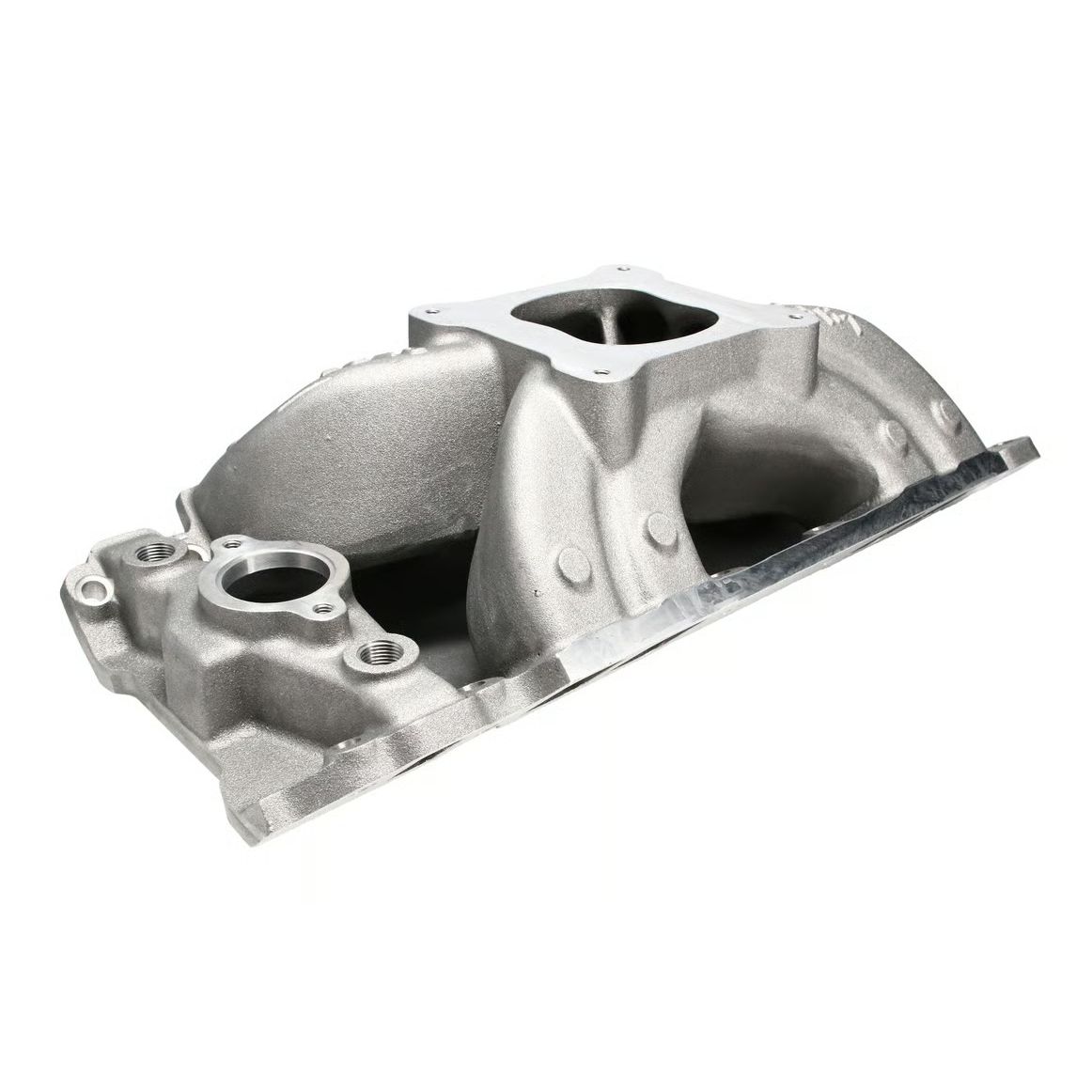

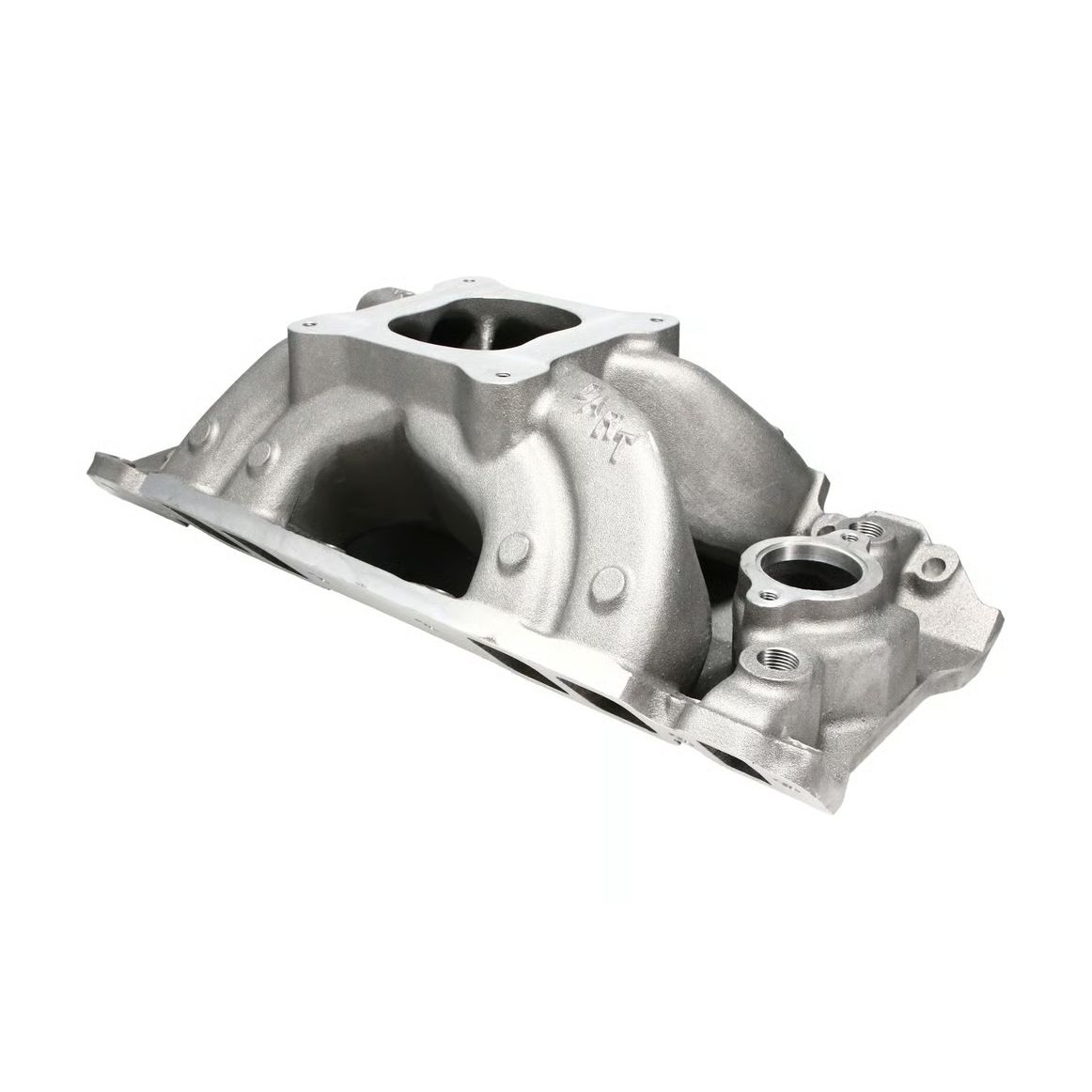

Big Block Chevy Manifold

An engine's cylinder heads and intake manifold must work together as an integrated system to produce maximum performance. The intake charge should make a seamless transition from the manifold runners to the cylinder head ports. Dart has accomplished this in every intake manifold we make.

Additional Attributes:

GTIN: 00807051025705
Carburetor Flange: 4150
Cylinder Head Port Shape: Rectangle
Deck Height: 10.200
EBAY Category ID: 36474
Engine – Web: Big Block
Engine Type: ICE
Engine: Big Block
Industry: Automotive
Intake Manifold Material: Aluminum
Make – Web: Chevrolet
Make: Chevrolet
Manifold Flange Thickness: 0.800
Manifold Port Shape: Rectangle
Material: Aluminum
Mounting Flange Thickness: 0.800
Port Height: 2.220
Port Style: Rectangle
Port Width: 1.590
Product Type: Engine Intake Manifold
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Single Or Dual Plane Type: Single Plane

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 12.5 x 9 inches
Weight: 45 PG
